FOUNTAINS
& WATER
TECHNIQUE IN
PERFECTION
OUR EXPERIENCE
IN WATER INSTALLATIONS
Experience the beauty and functionality of HB-Hydro fountain systems. We integrate state-of-the-art water and lighting innovations, tailor-made for a variety of international installations.

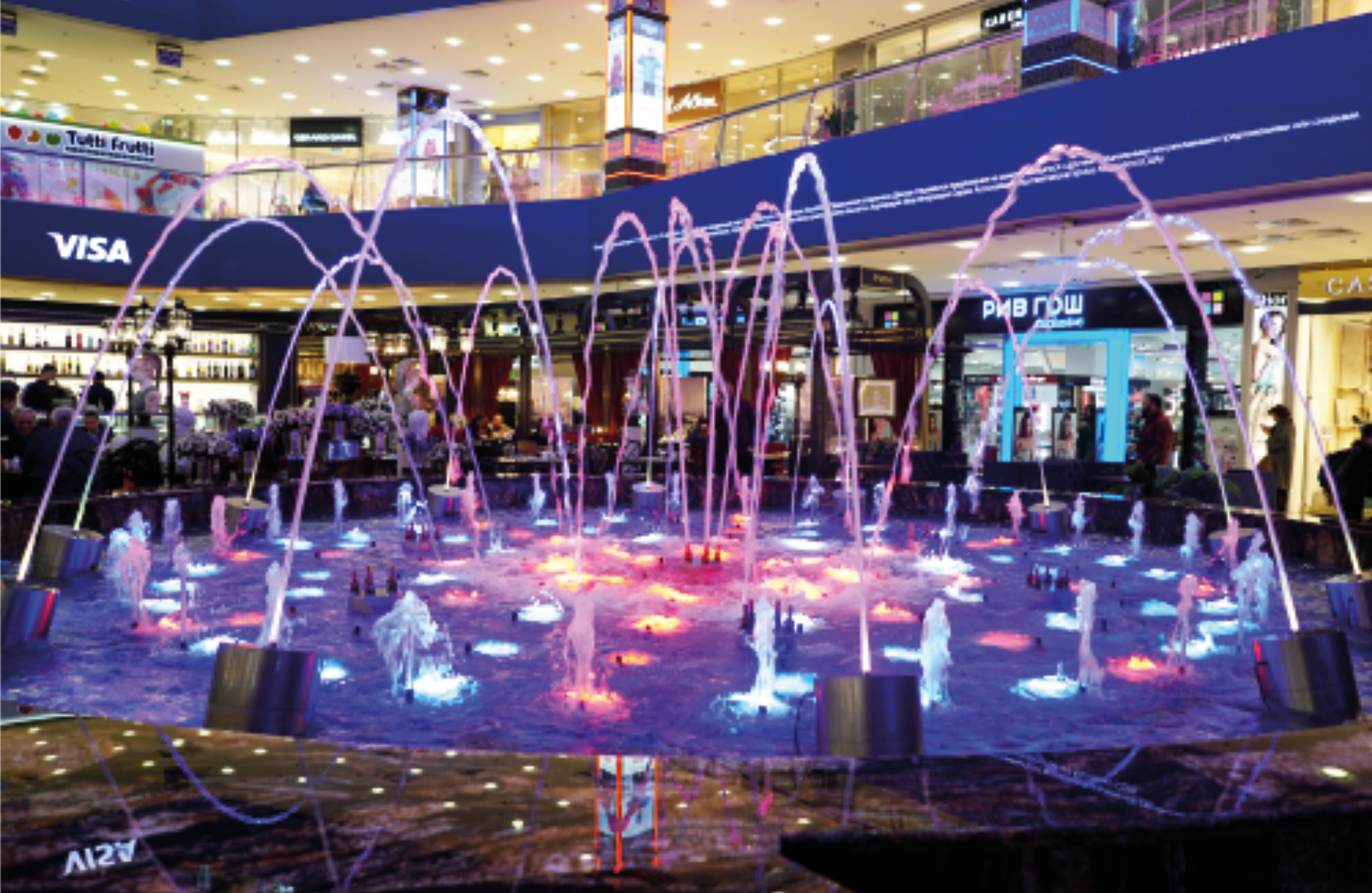

From permanent installations in shopping centers and amusement parks to installations at international trade fairs and events, we specialize in the development of fountain systems of all sizes with innovative water and light functions.
In addition to our patented 3D HydroMatrix, which enables unique indoor water installations, you can choose from a variety of water effects for impressive outdoor installations.
The water systems can be combined with pumps of various strengths in order to implement individually controllable shows of all sizes using special control components.
We look forward to inspiring you too!

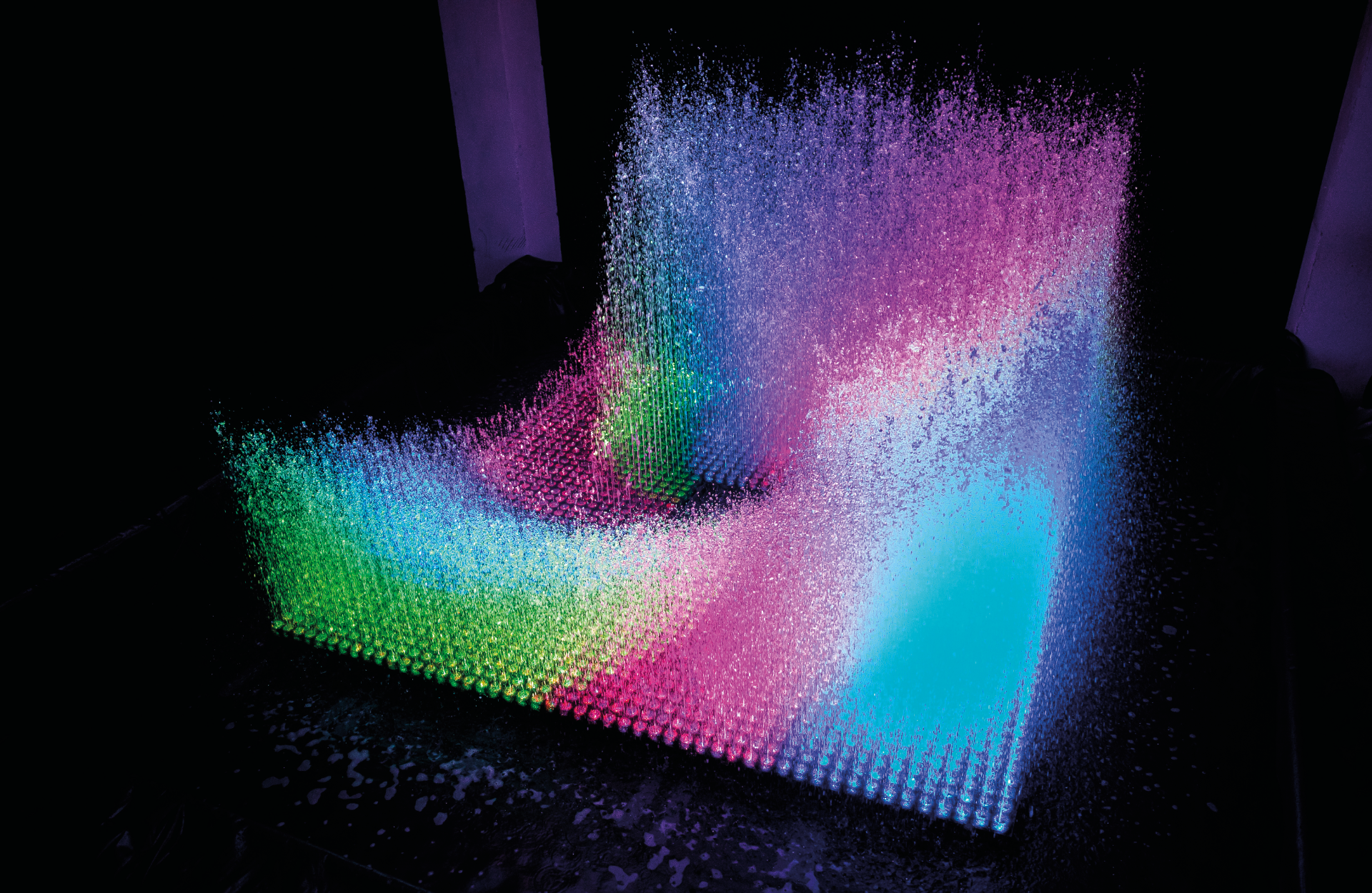

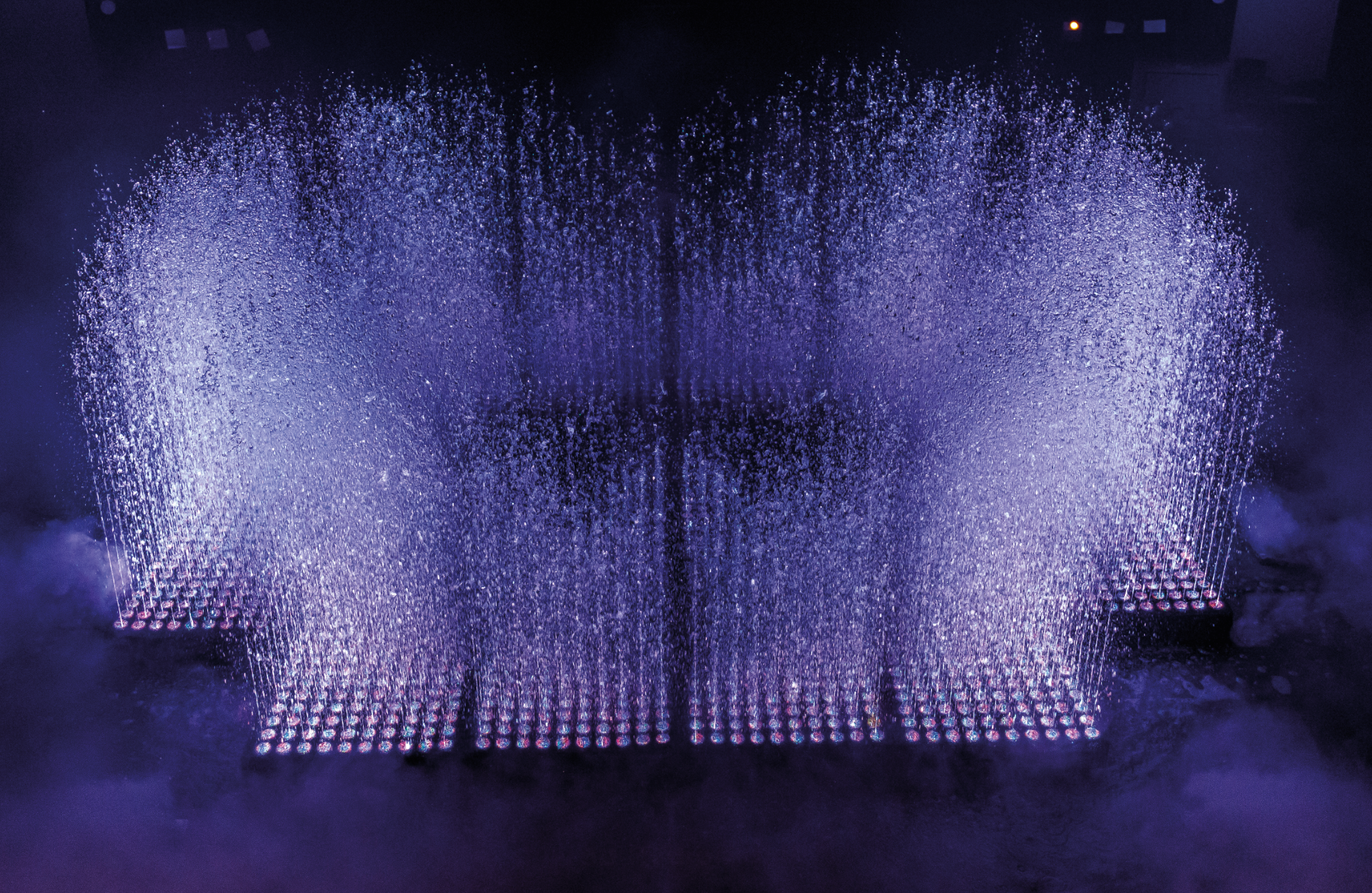

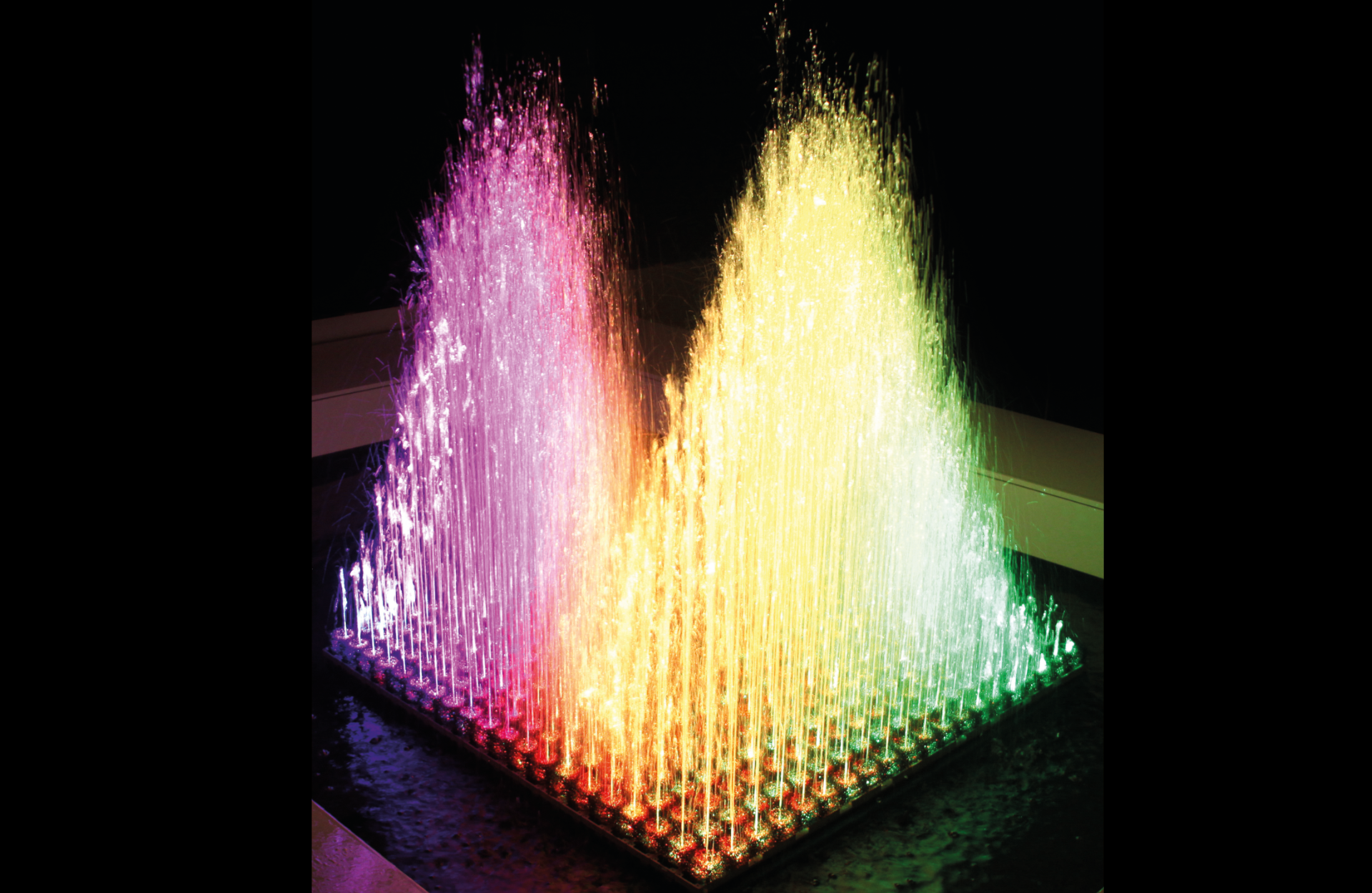

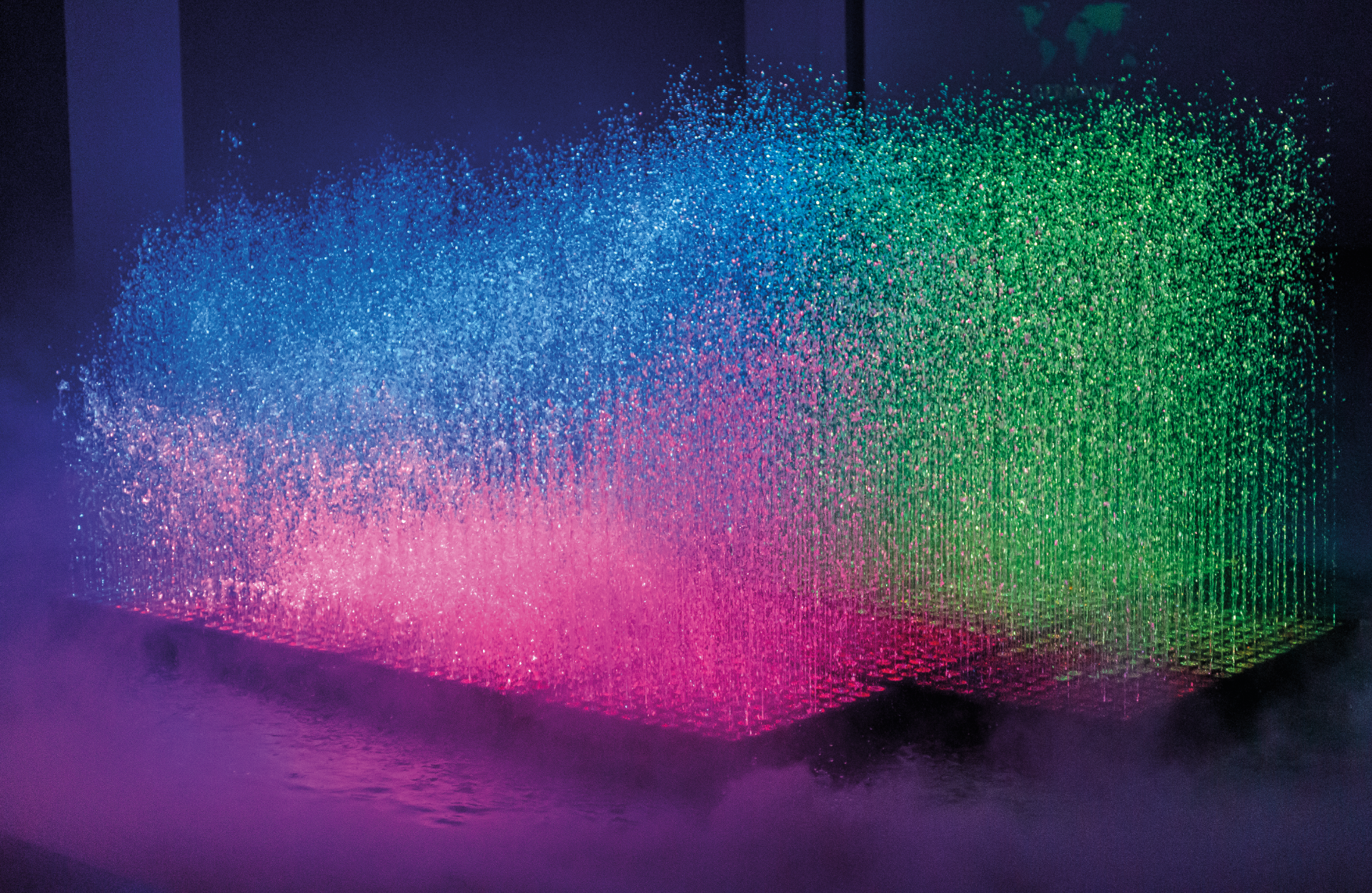

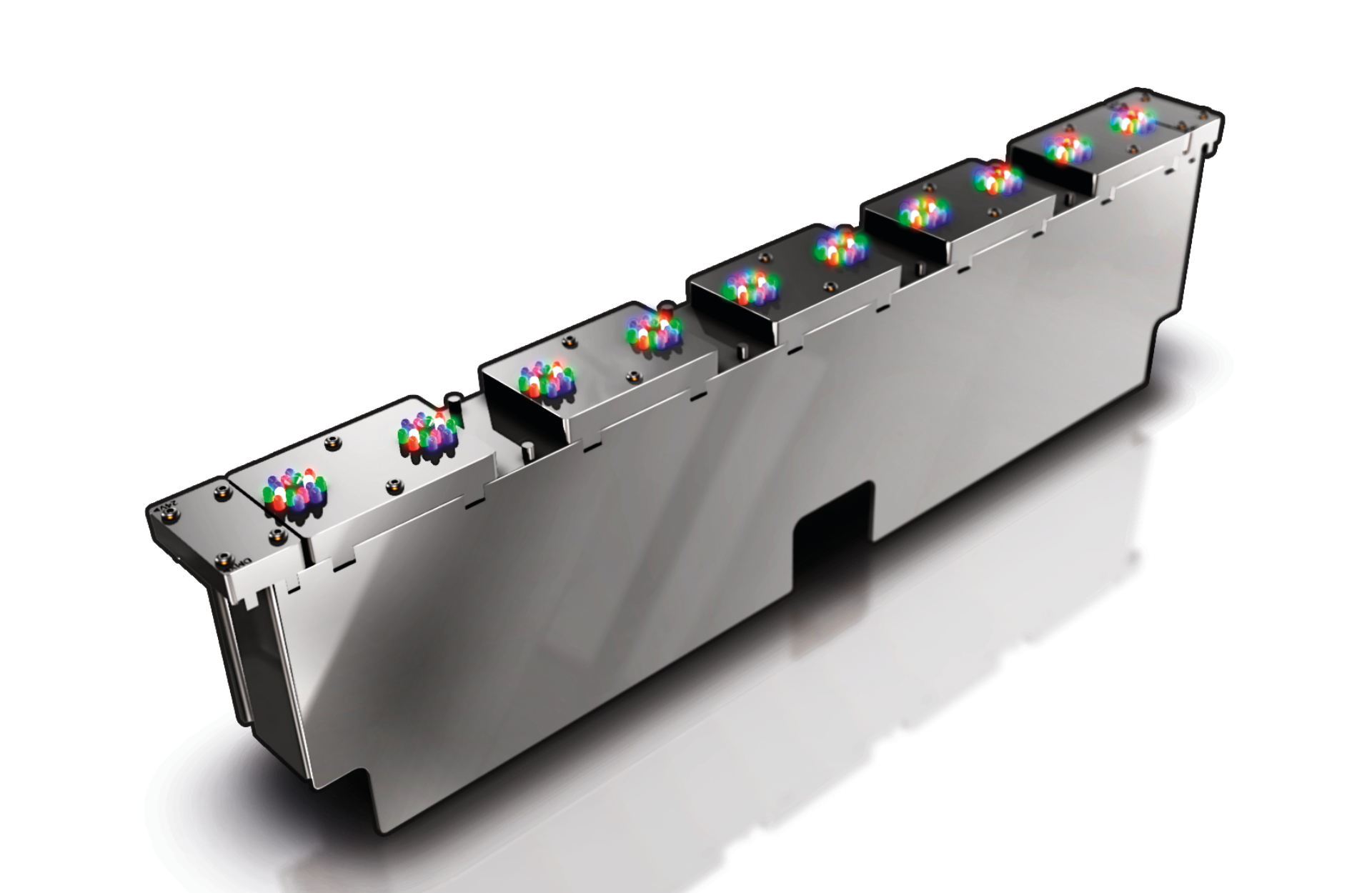

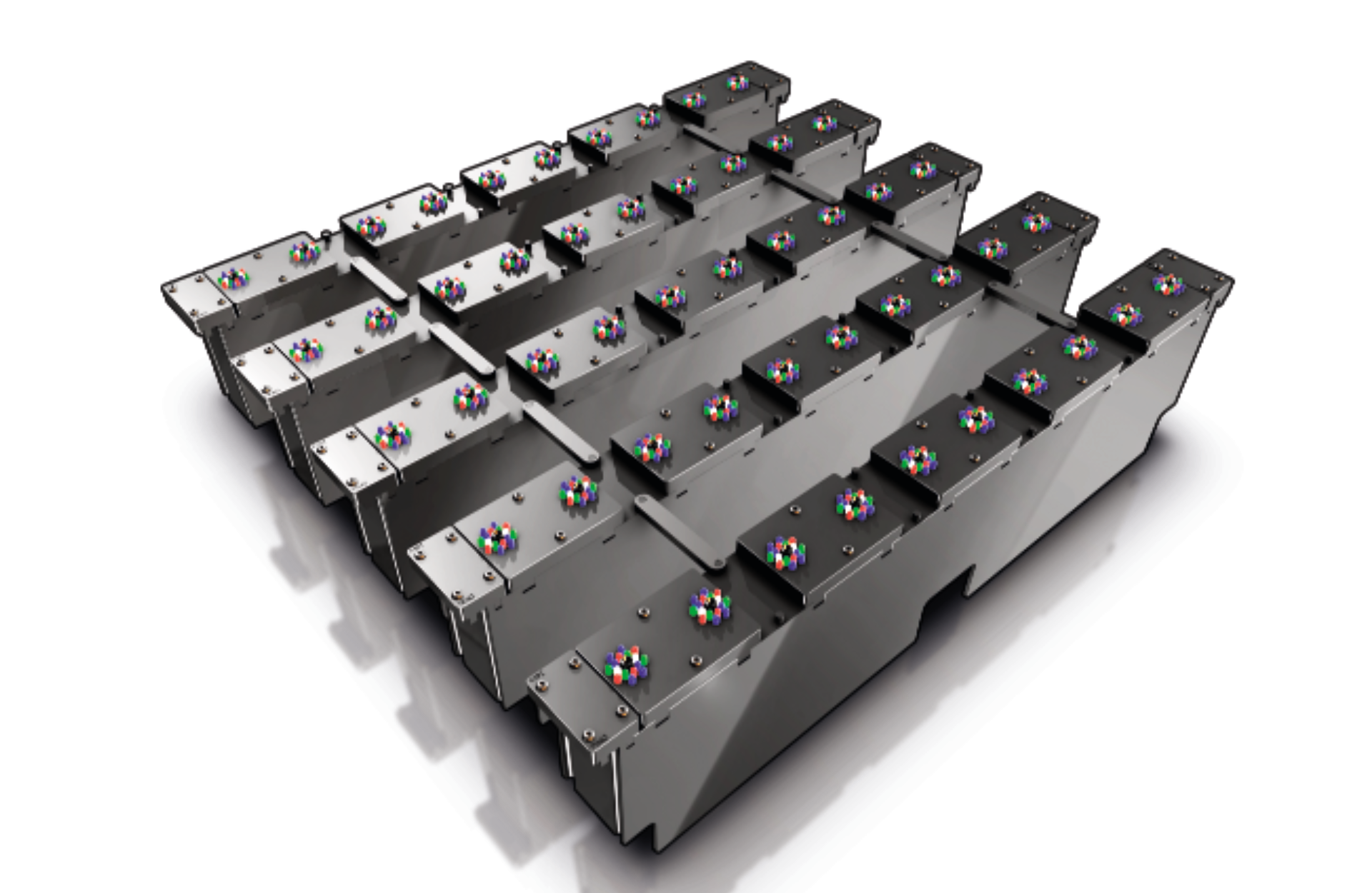

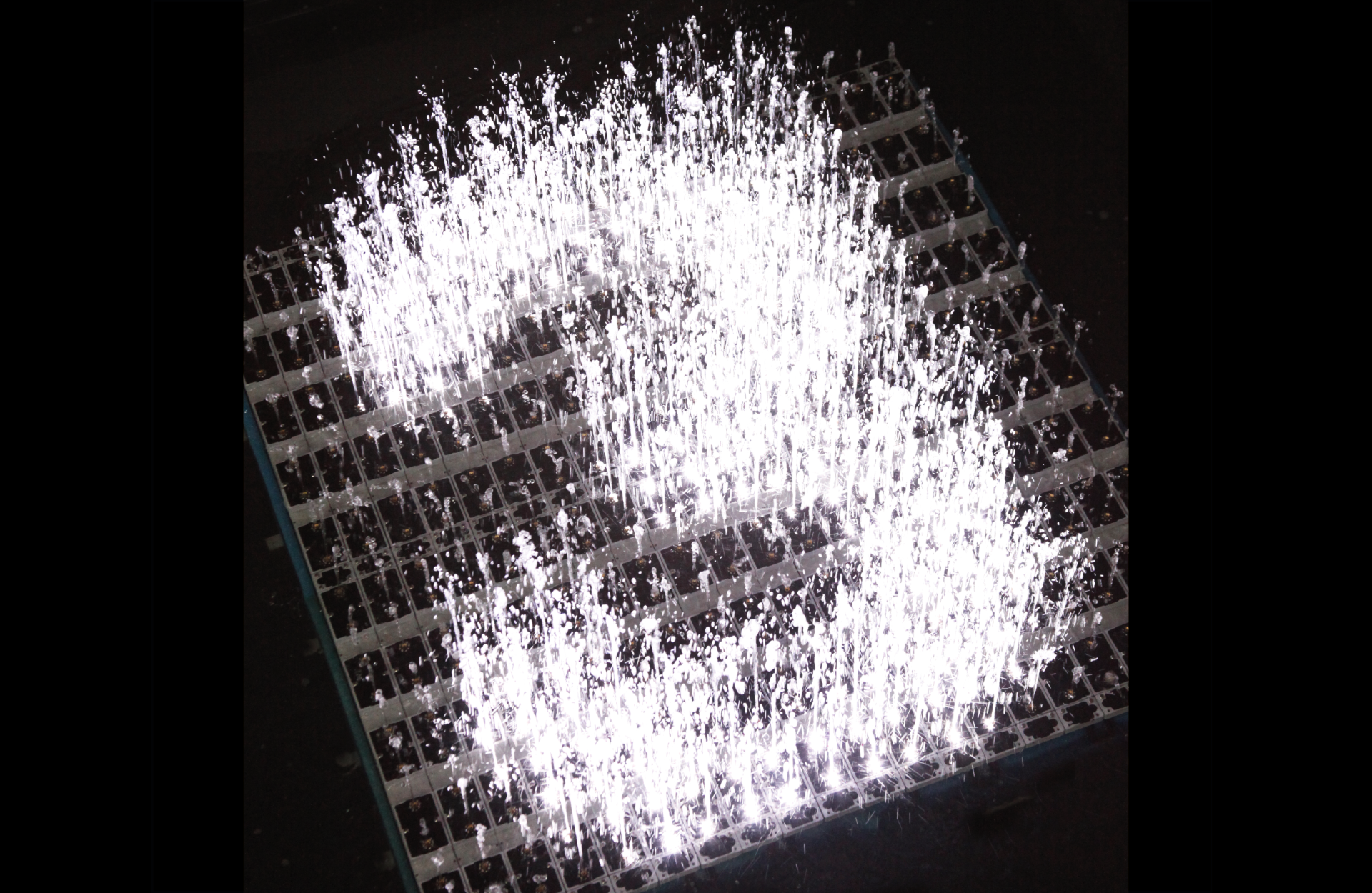

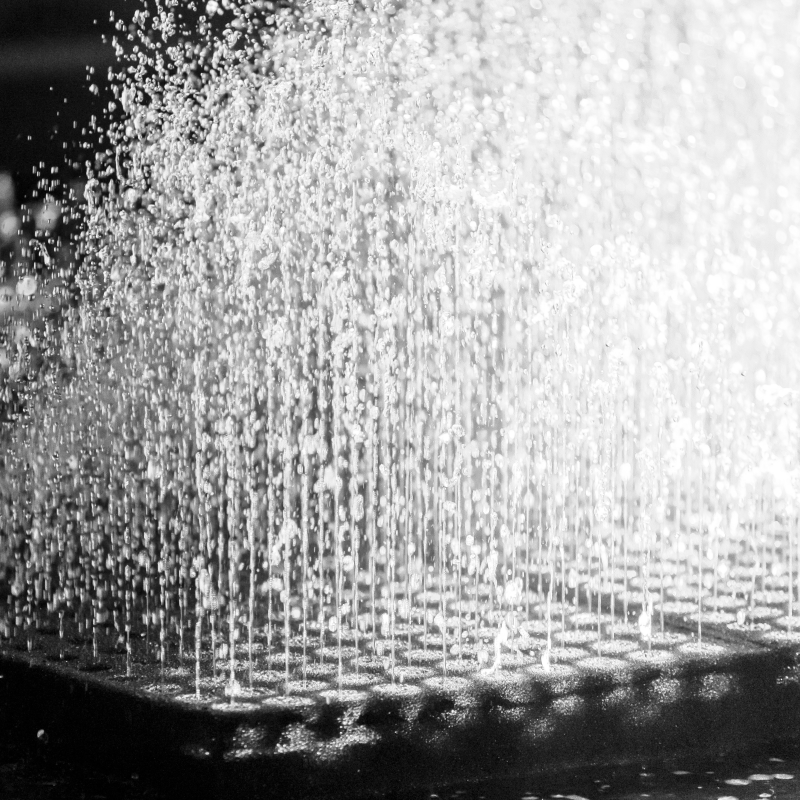

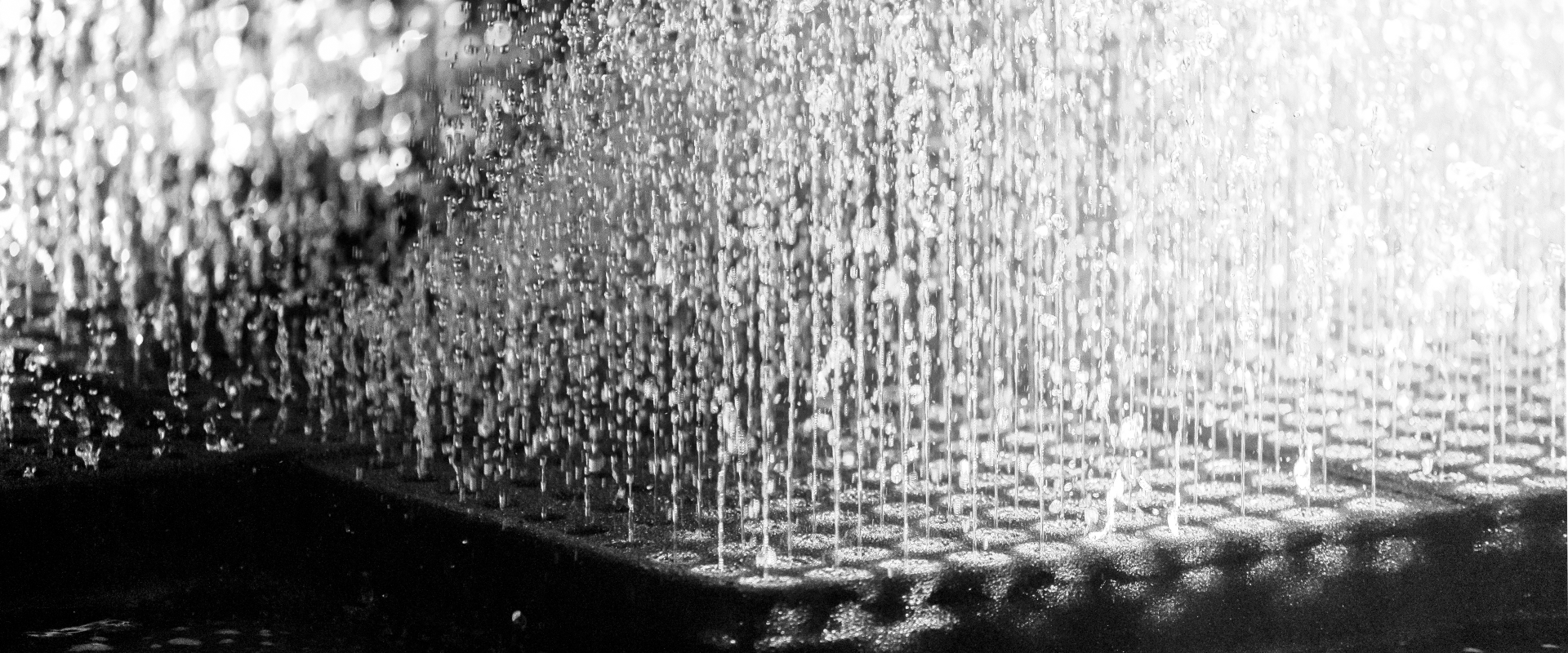

3D HYDRO MATRIX
INHOUSE PRODUCTION

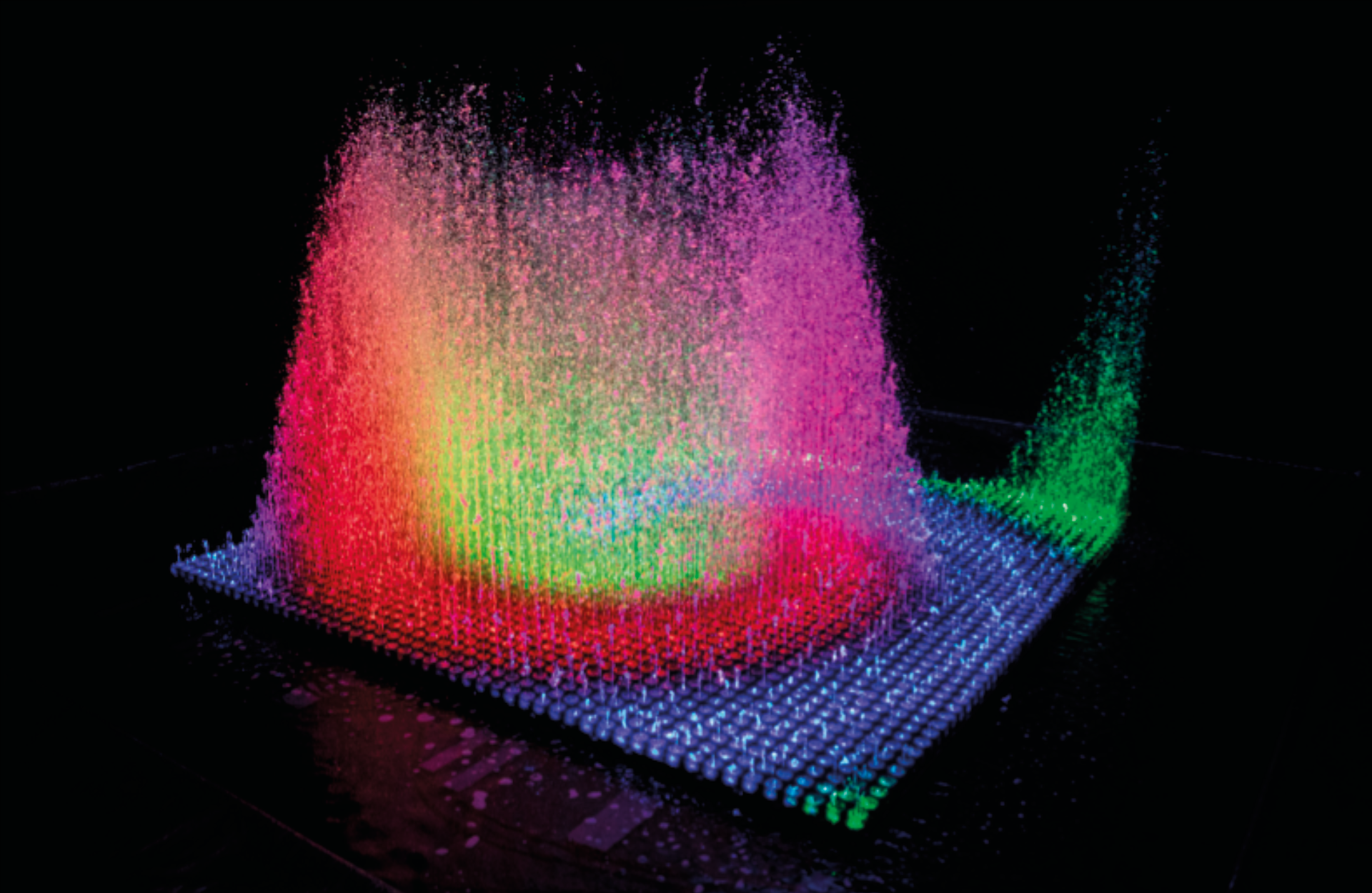

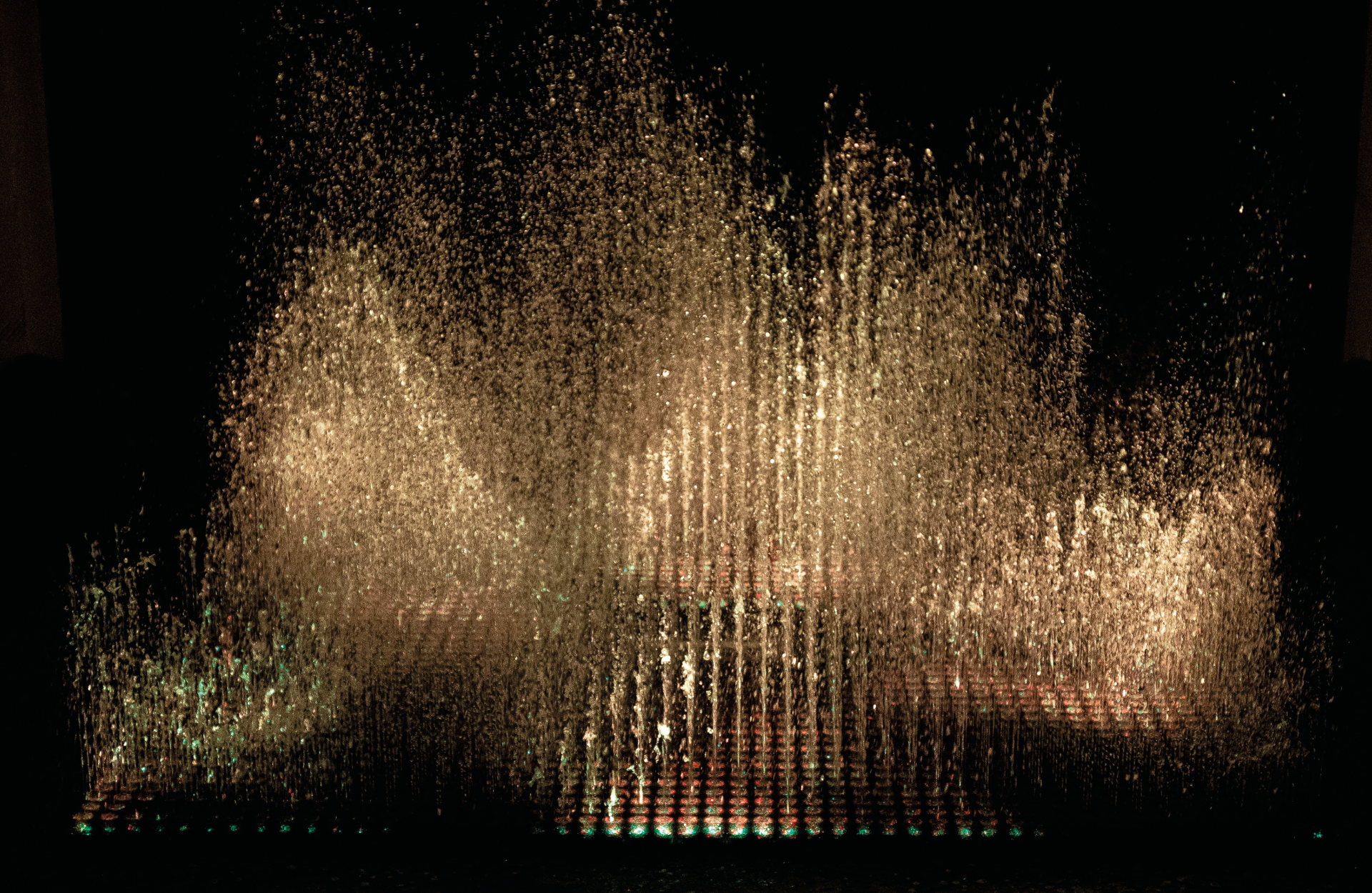

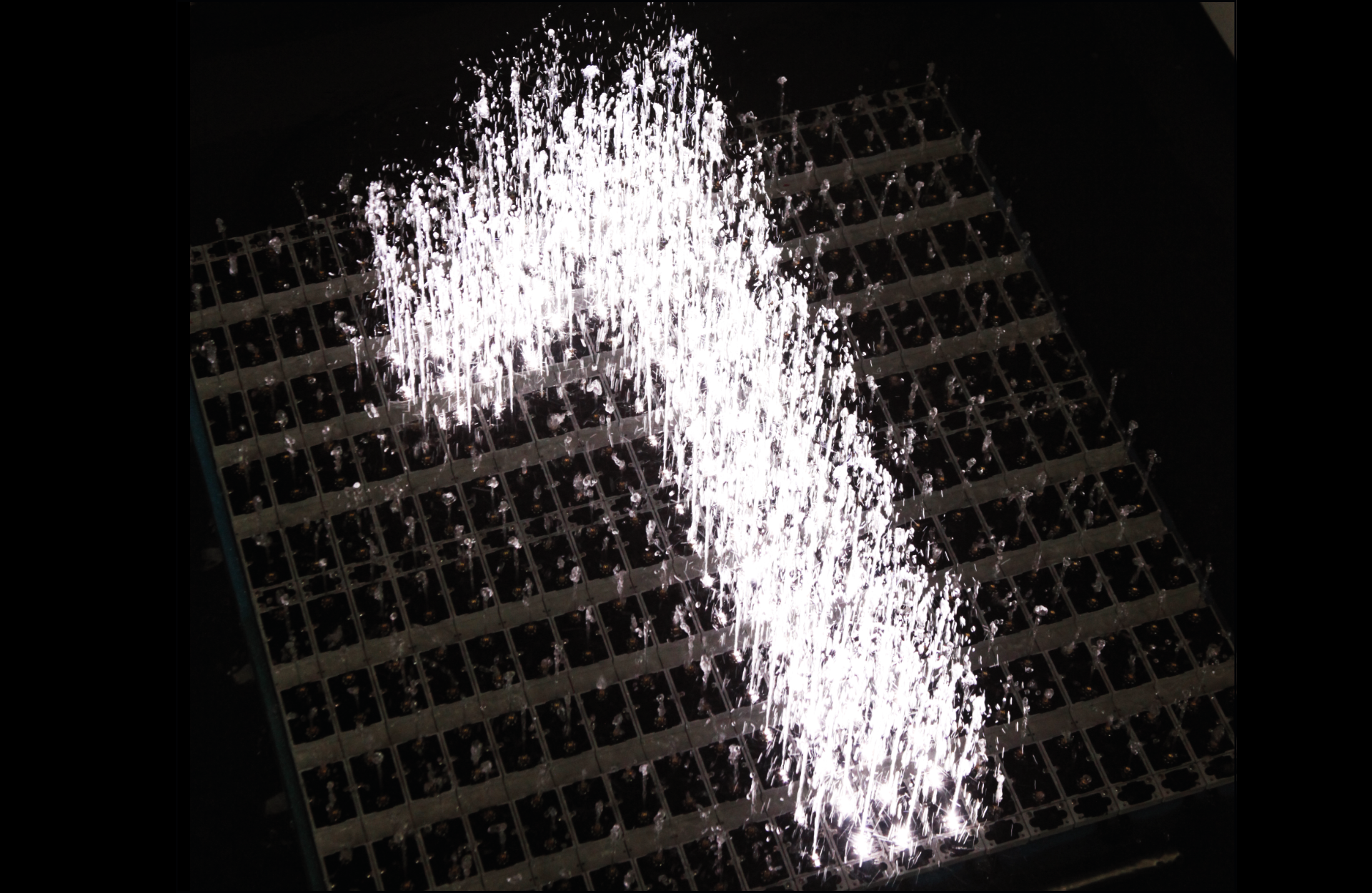

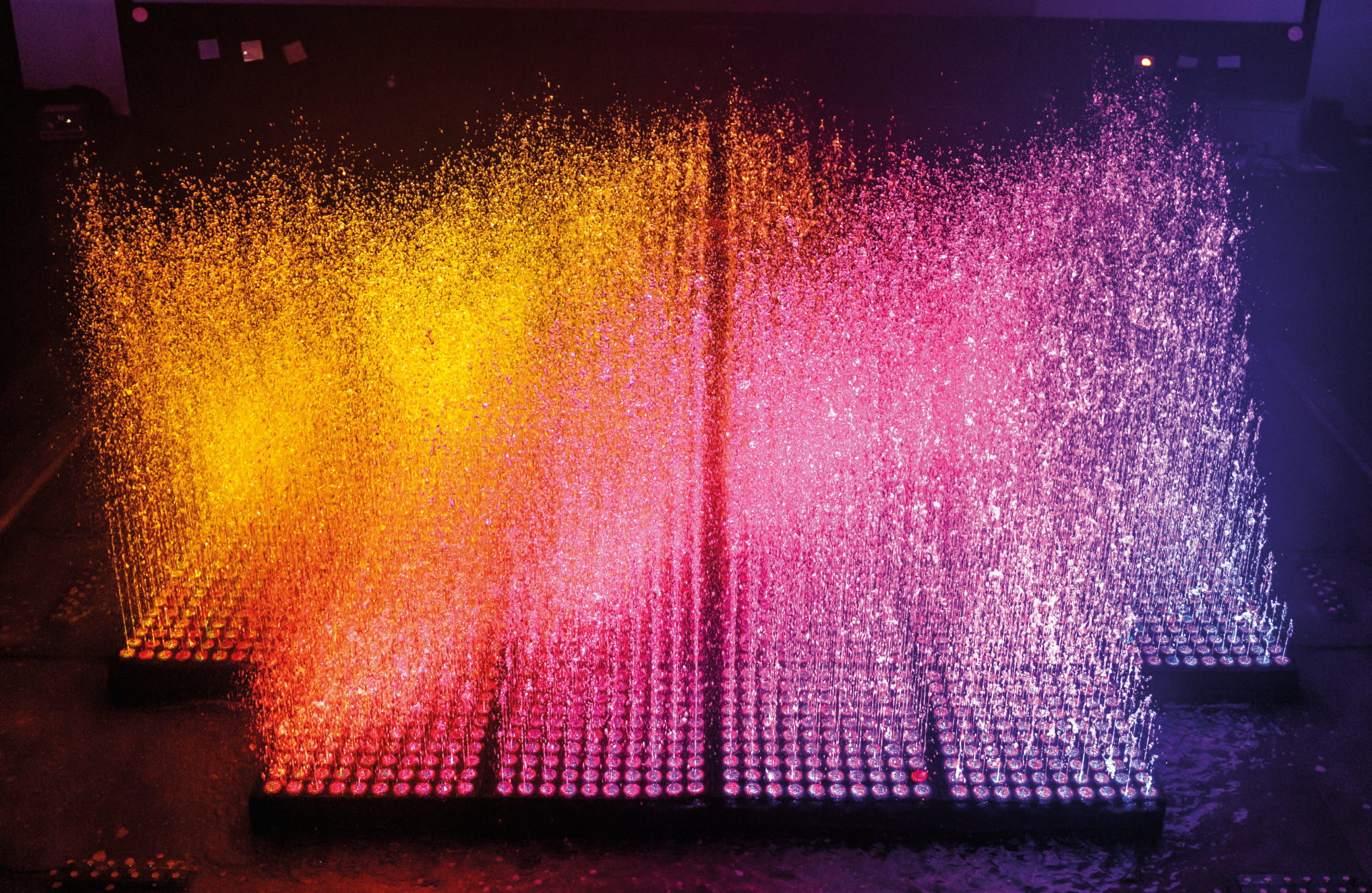

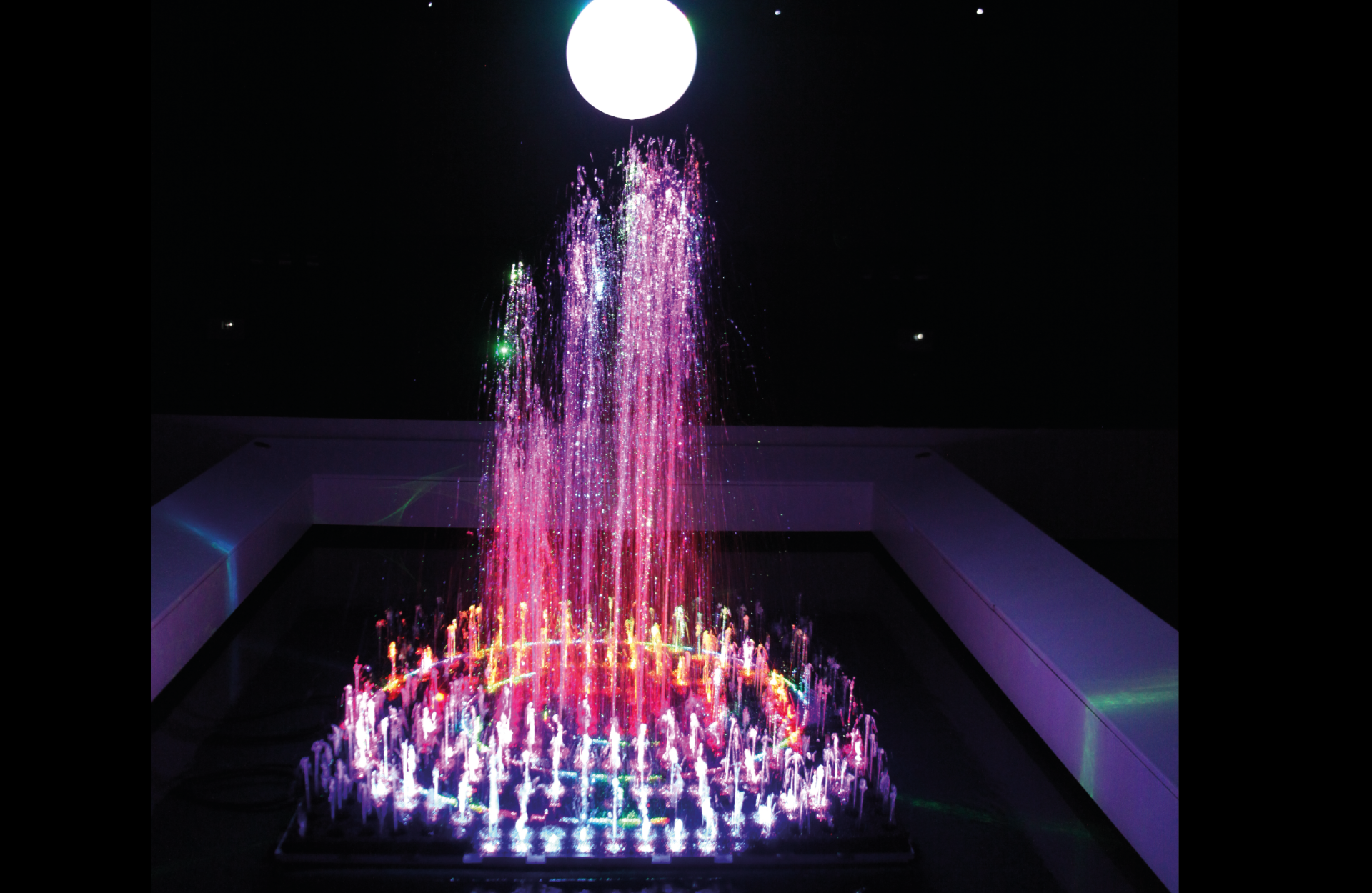

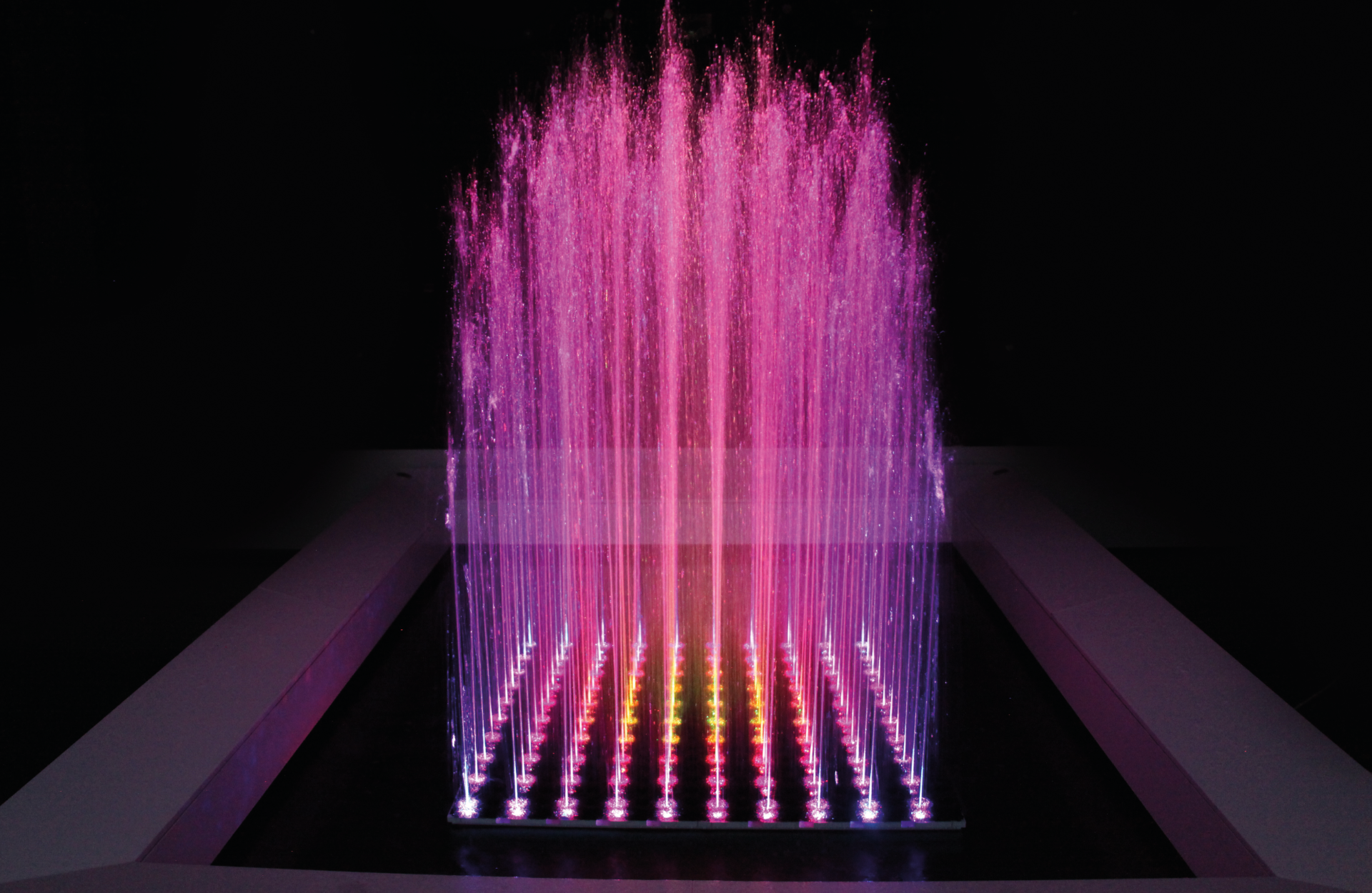

With our 3D Hydro Matrix We open up new customized design possibilities, you have never seen before. Water & light combined as animated 3d sculptures.
UNIQUE

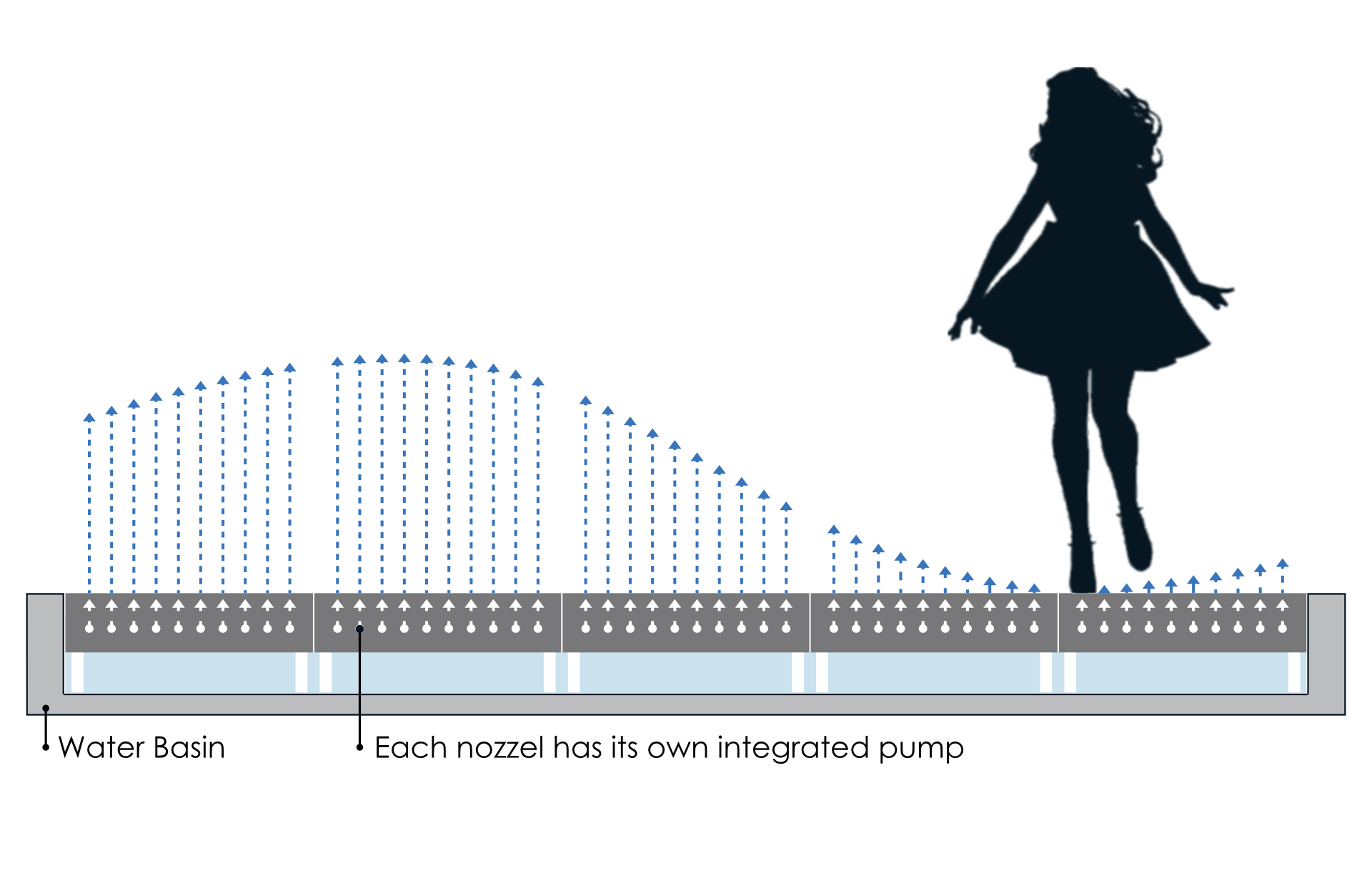

For the first time pixel accurate videos and pictures can be combined with a third dimension, by using the height of a water fountain. The minimal pitch between the LED water fountain nozzles allows the realization of any 3D surface out of water.
EMOTIONAL

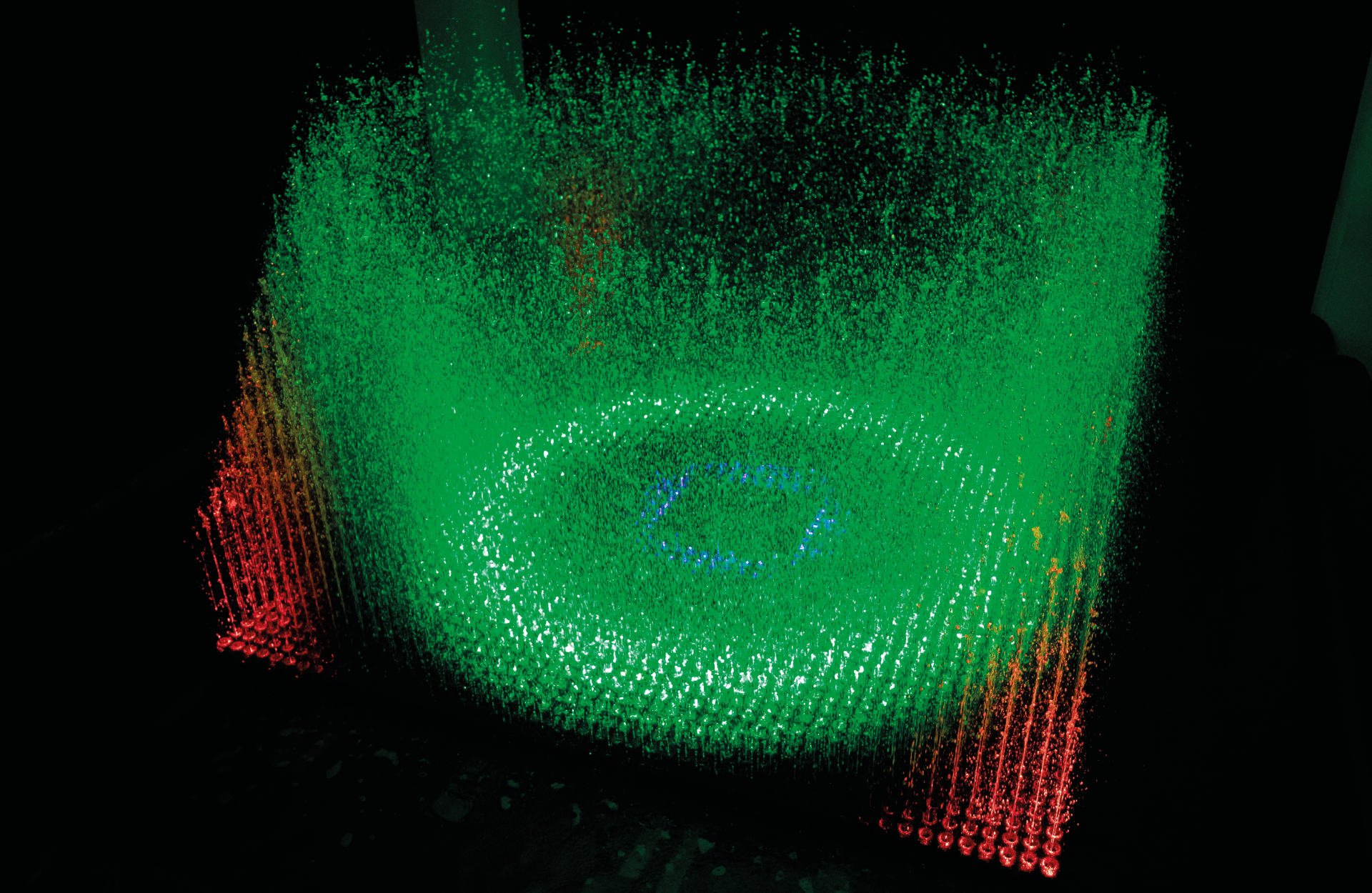

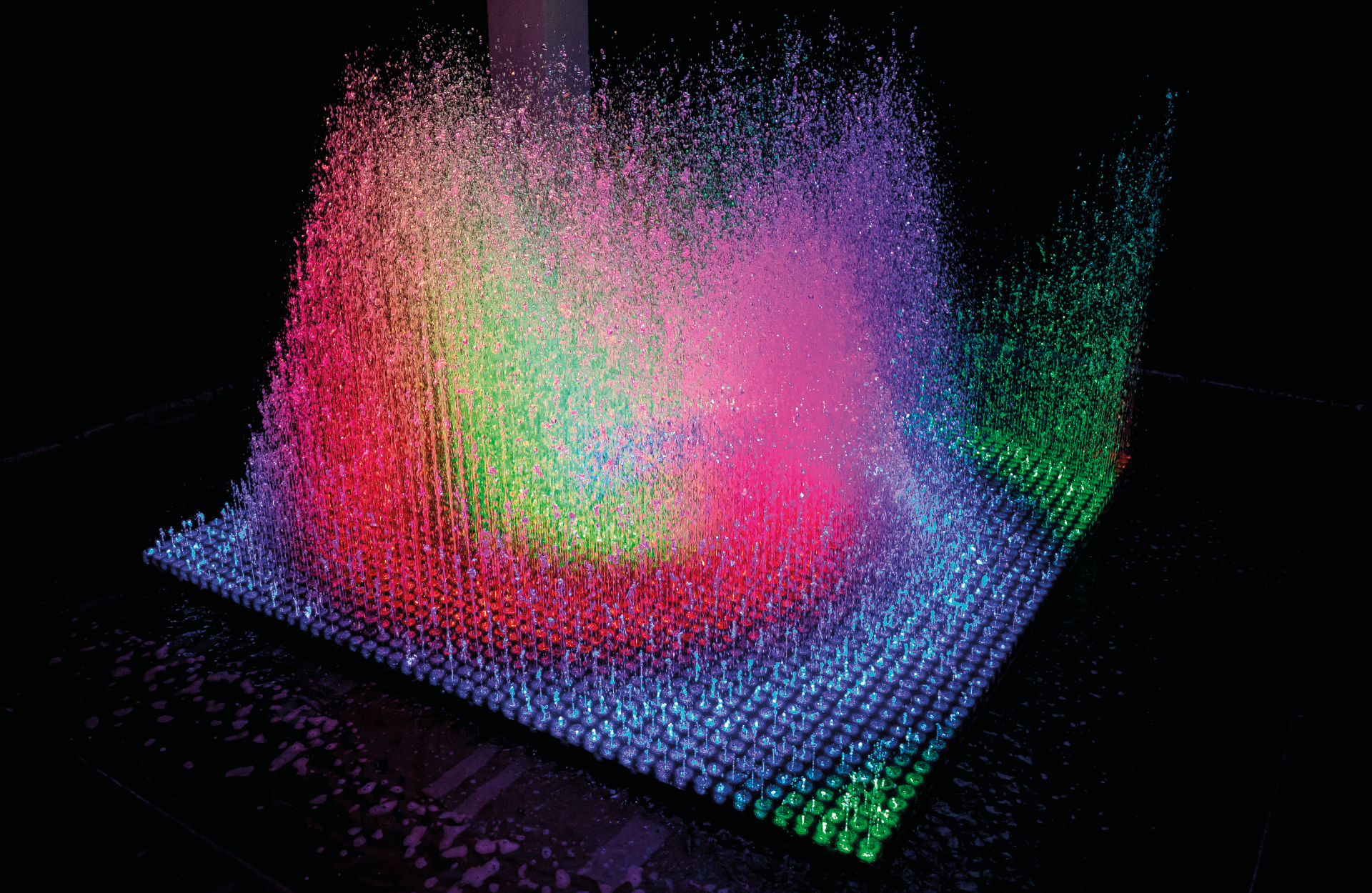

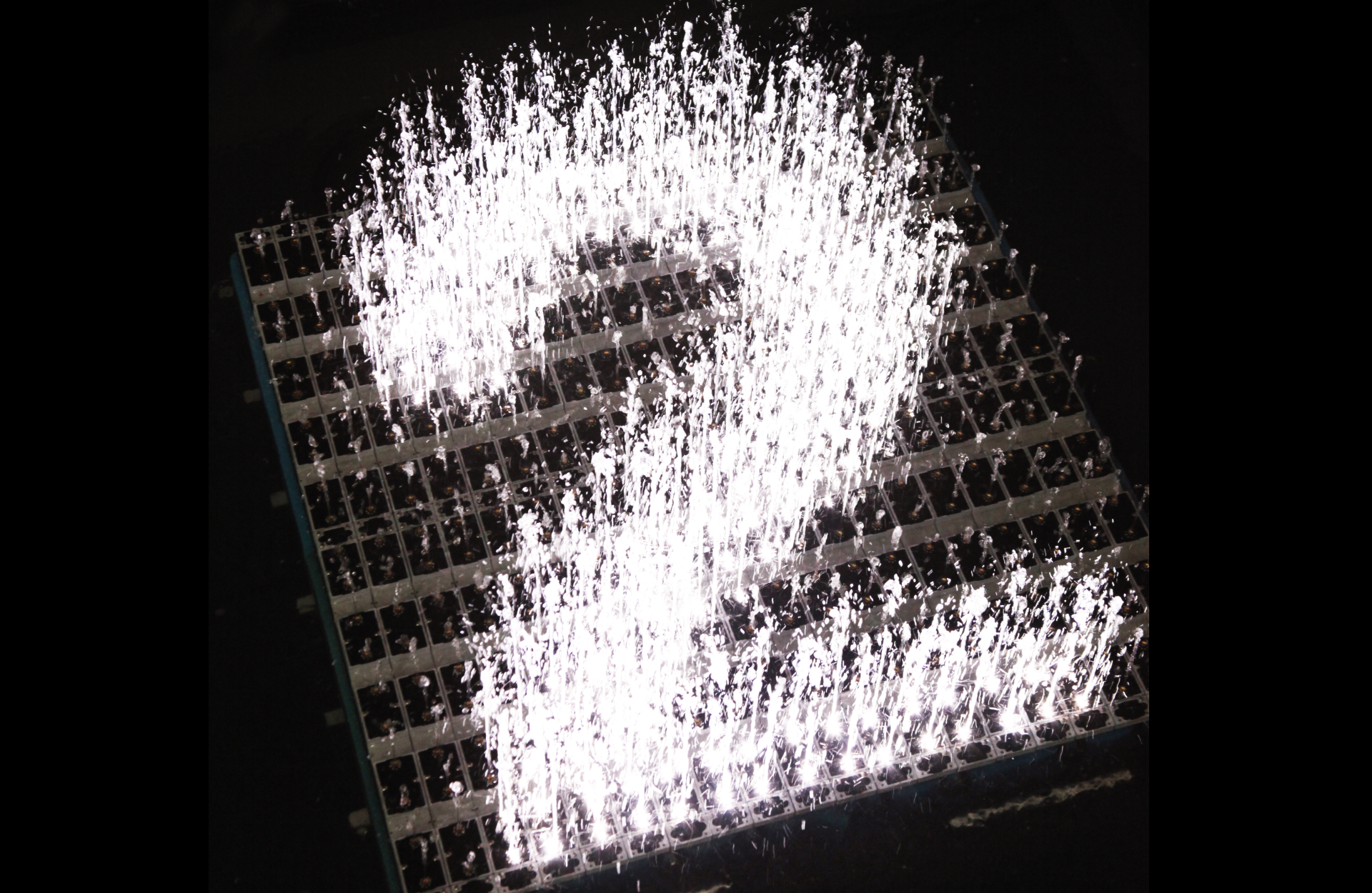

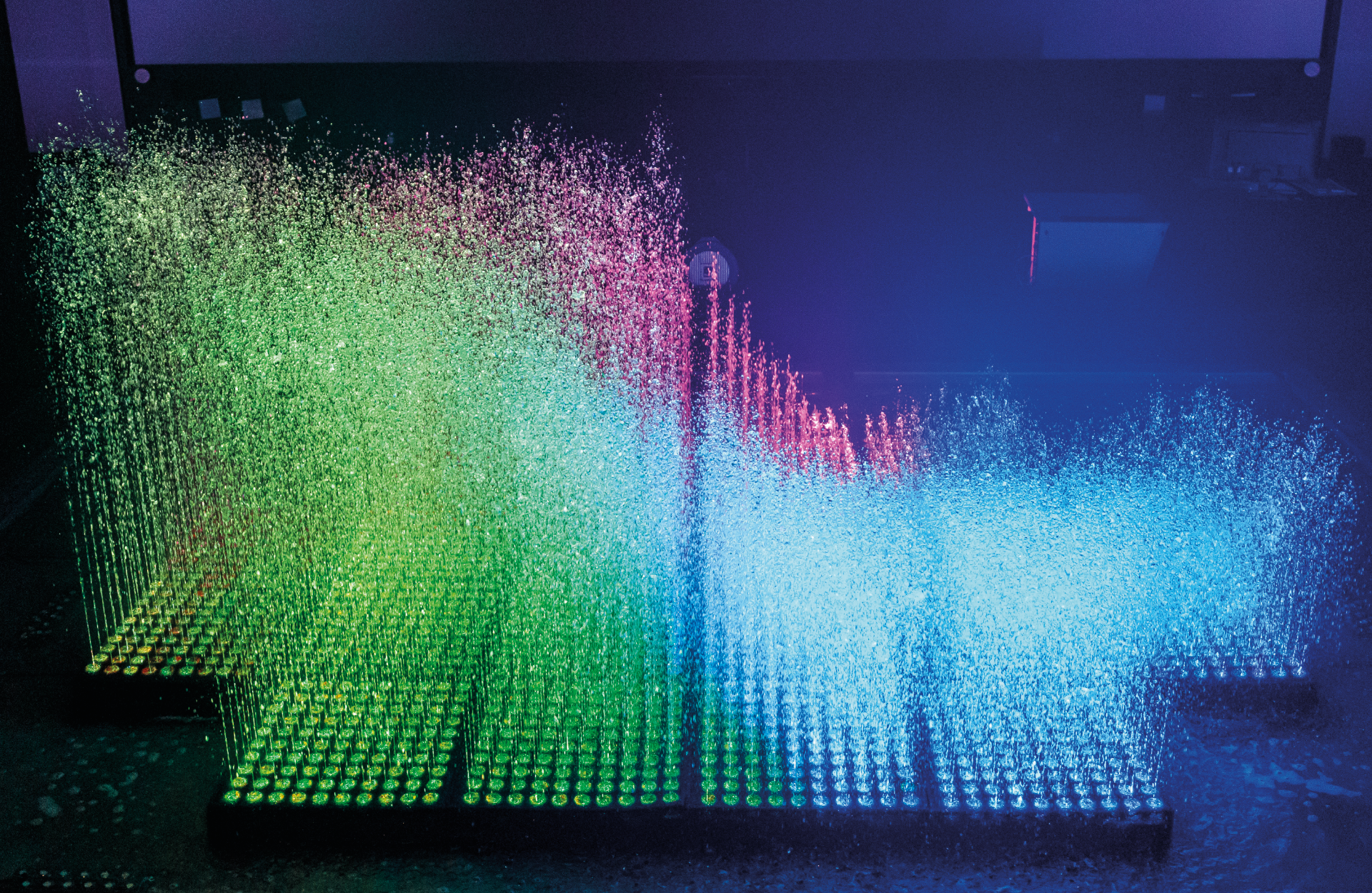

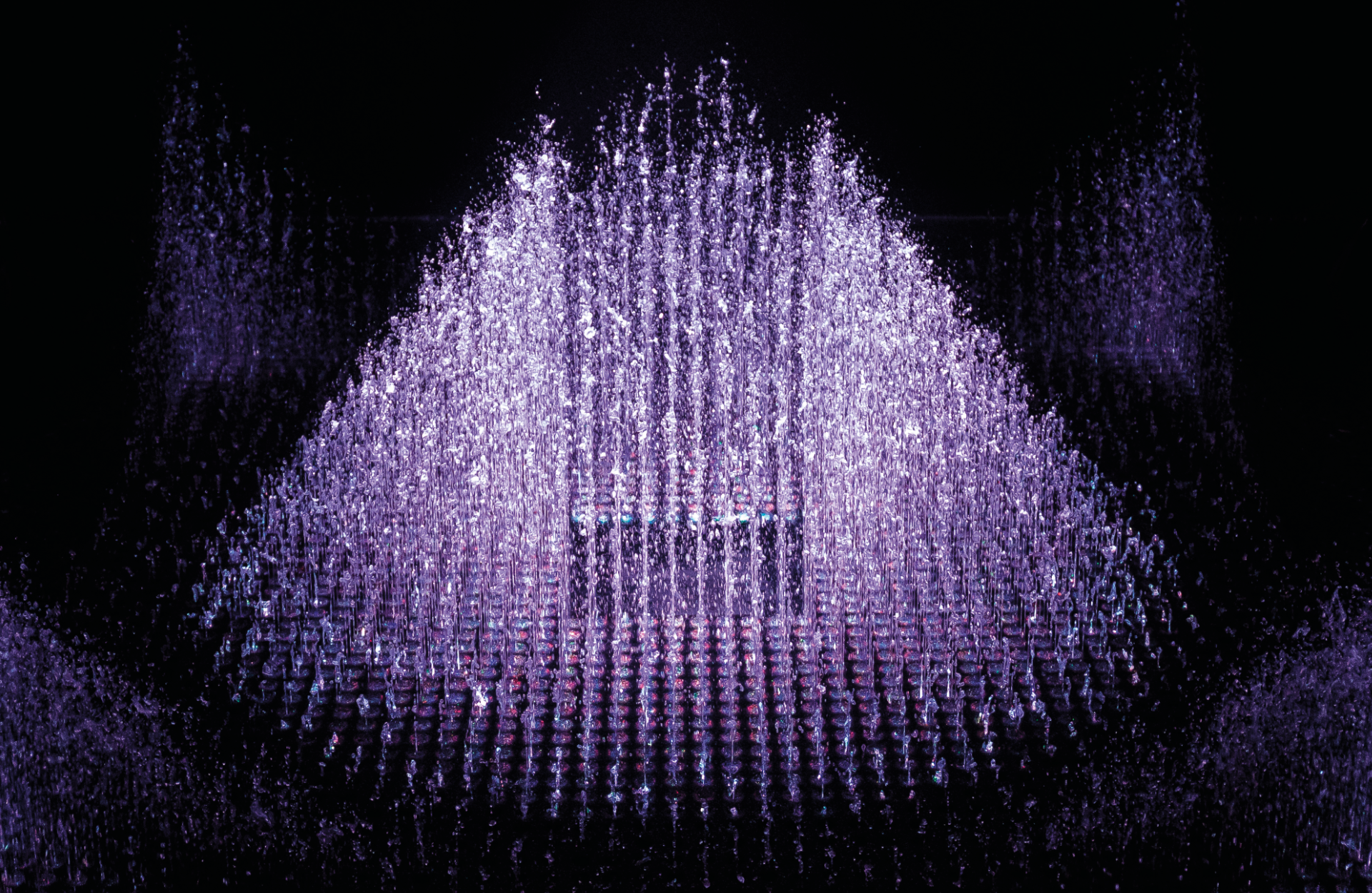

Water and light, combined as animated 3D sculptures. Geometrical figures, numbers or letters animated 3D logos or flights through fantastic 3D landscapes made from water and light offer borderless options, as well as new, never seen before, interactive possibilities.
SMART
It is possible to realize any individual design through the flexible configuration with a single or inline arrangement; for example, as a star or as an area covering matrix.
RELIABLE
Using 24V low voltage and only highest quality materials, safe and durable operation is guaranteed, even under sophisticated environmental conditions.
3D HYDRO MATRIX
VARIATIONS

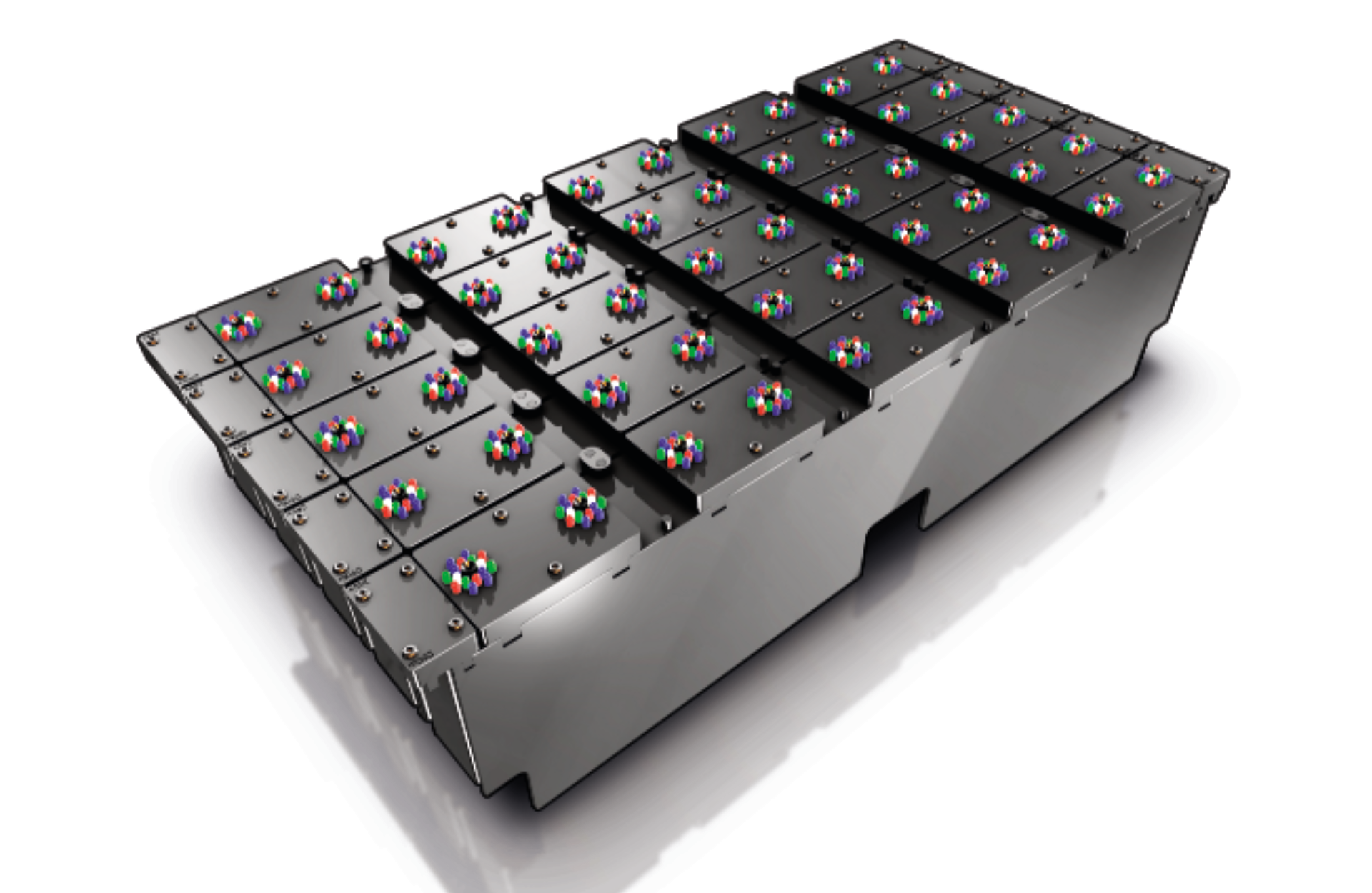

3D HydroMatrix hd
- 250 mm x 500 mm x 100 mm (LxWxH)
- 50 LED pixel RGBW (900 LED)
- 50 independent controllable fountains
- from 1cm up to 1,5m height
- pixel & fountain pitch 50mm
- DMX RDM incl. auto addressing

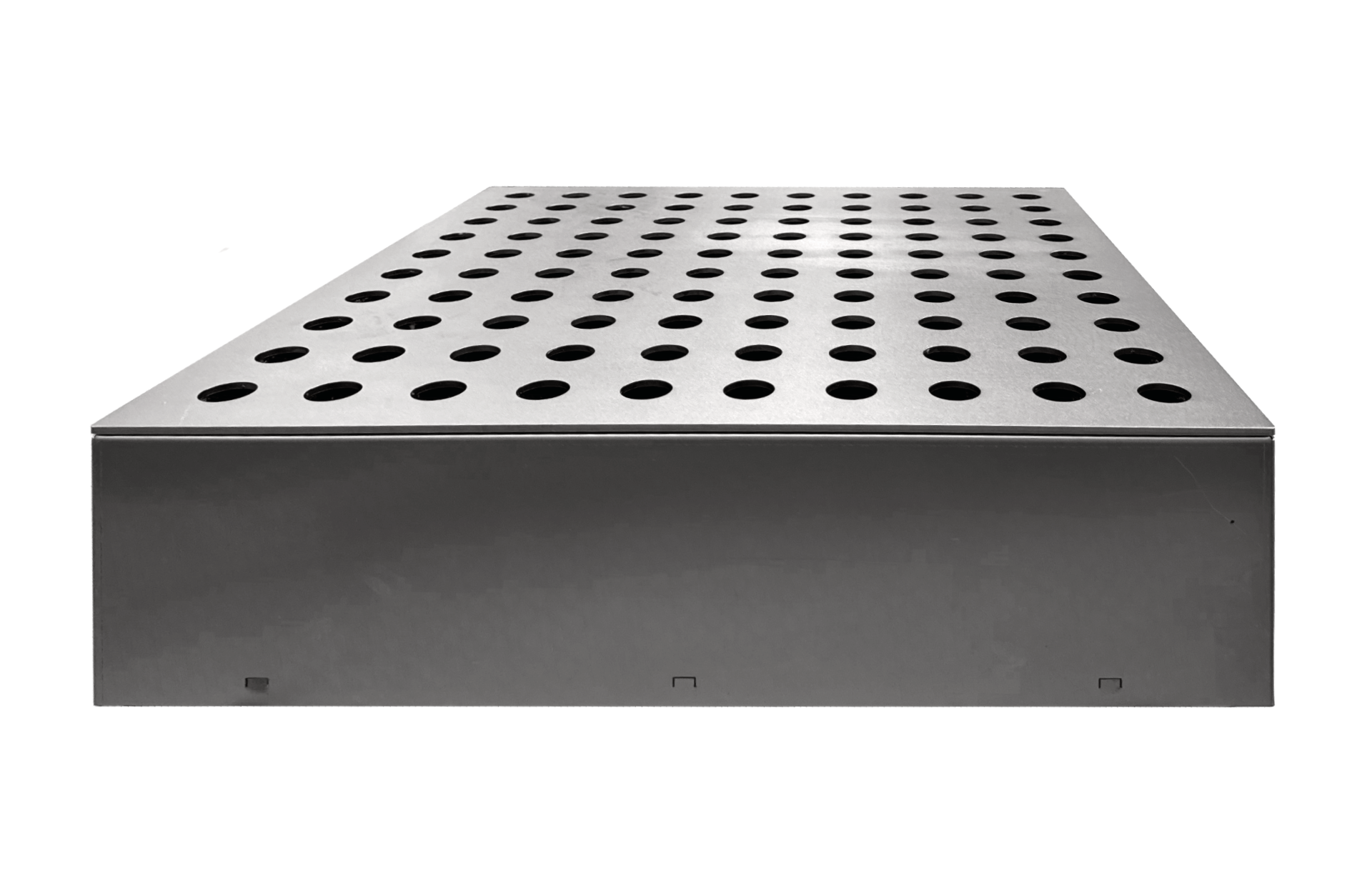

3D HydroMatrix SD
- 500 mm x 450 mm x 100 mm (L x W x H)
- 25 LED pixel RGBW (225 LED)
- 25 independent controllable fountains
- from 1cm up to 1,5m height
- pixel & fountain pitch 100mm
- DMX RDM incl. auto addressing

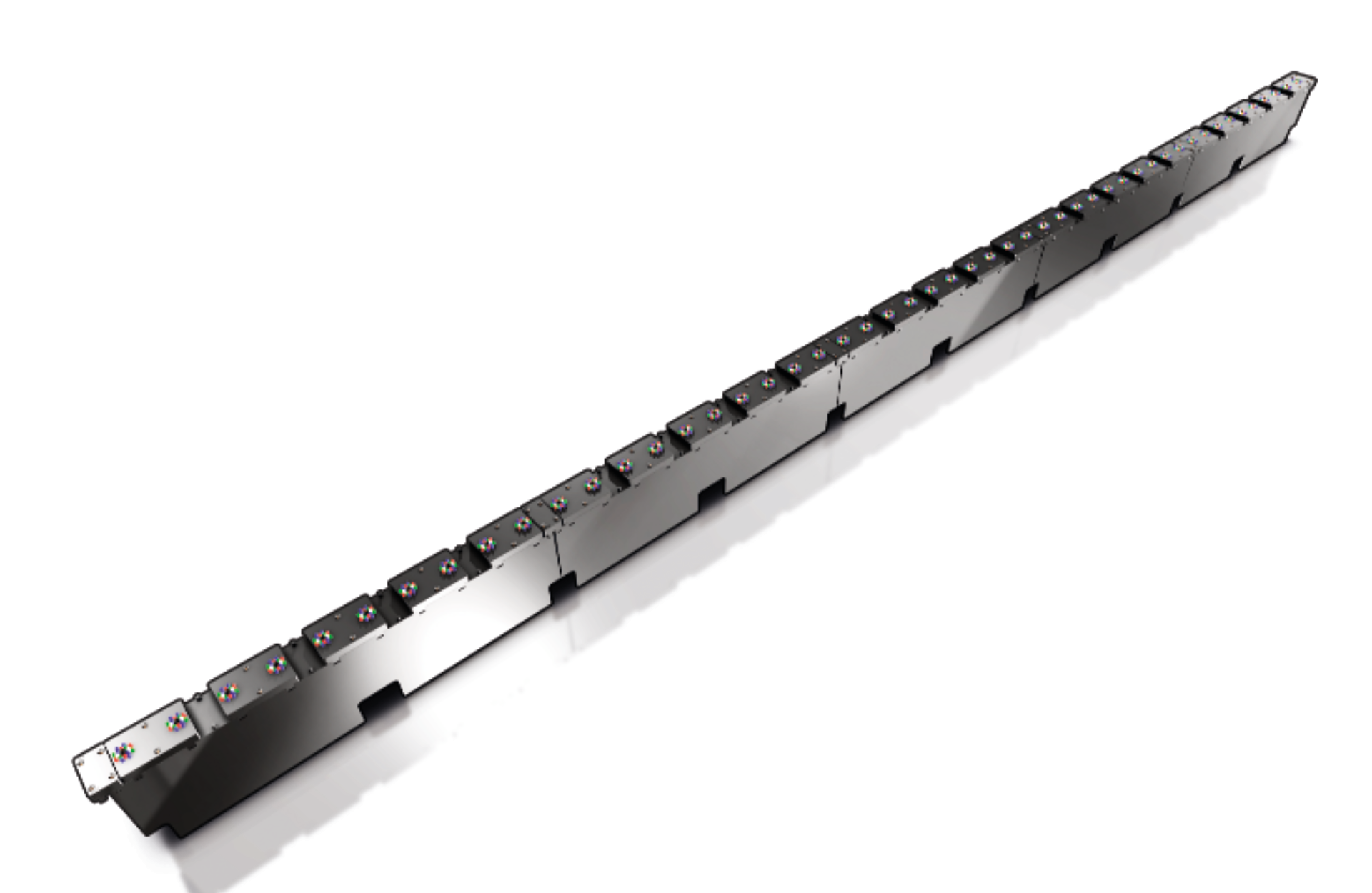

3D HydroMatrix HD Single Module
- 500mm x 50mm x 100mm (LxWxH)
- 10 LED pixel RGBW (90 LED)
- 10 independent controllable fountains
- from 1cm up to 1,5m height
- pixel & fountain pitch 50mm
- DMX RDM incl. auto addressing

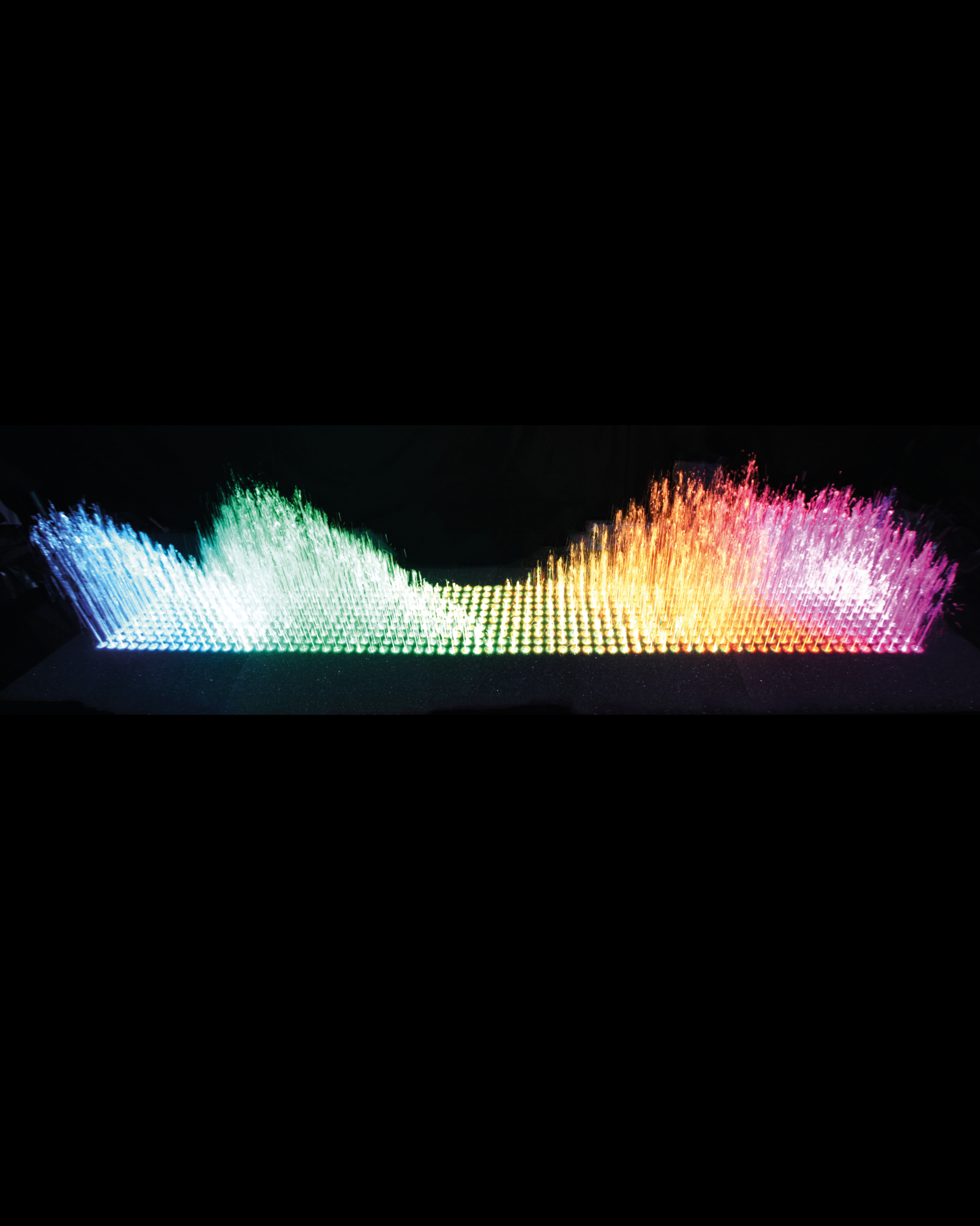

3D HydroMatrix Setup example
- Single module in row-configuration
- Flexible configurable and expandable

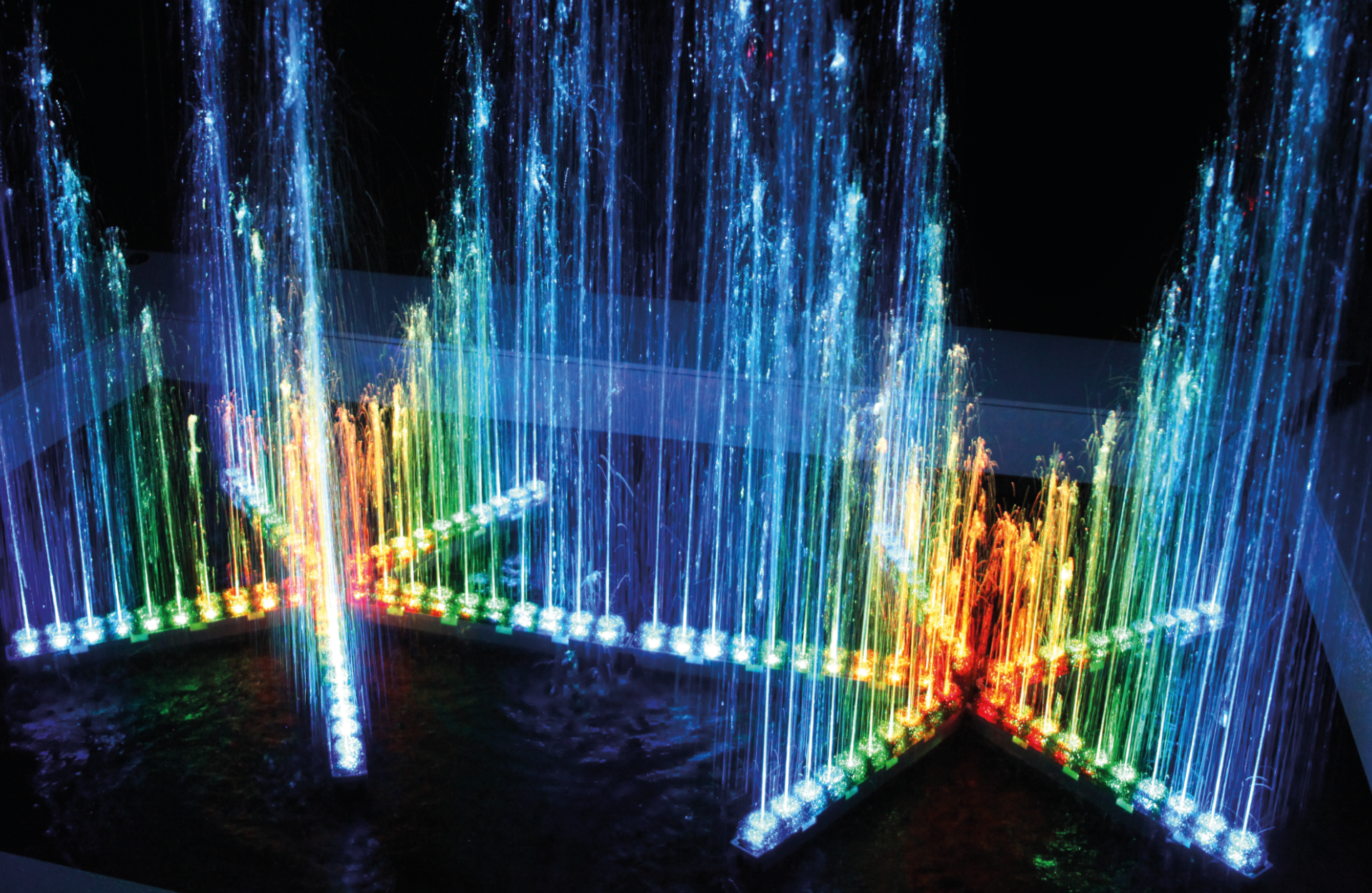

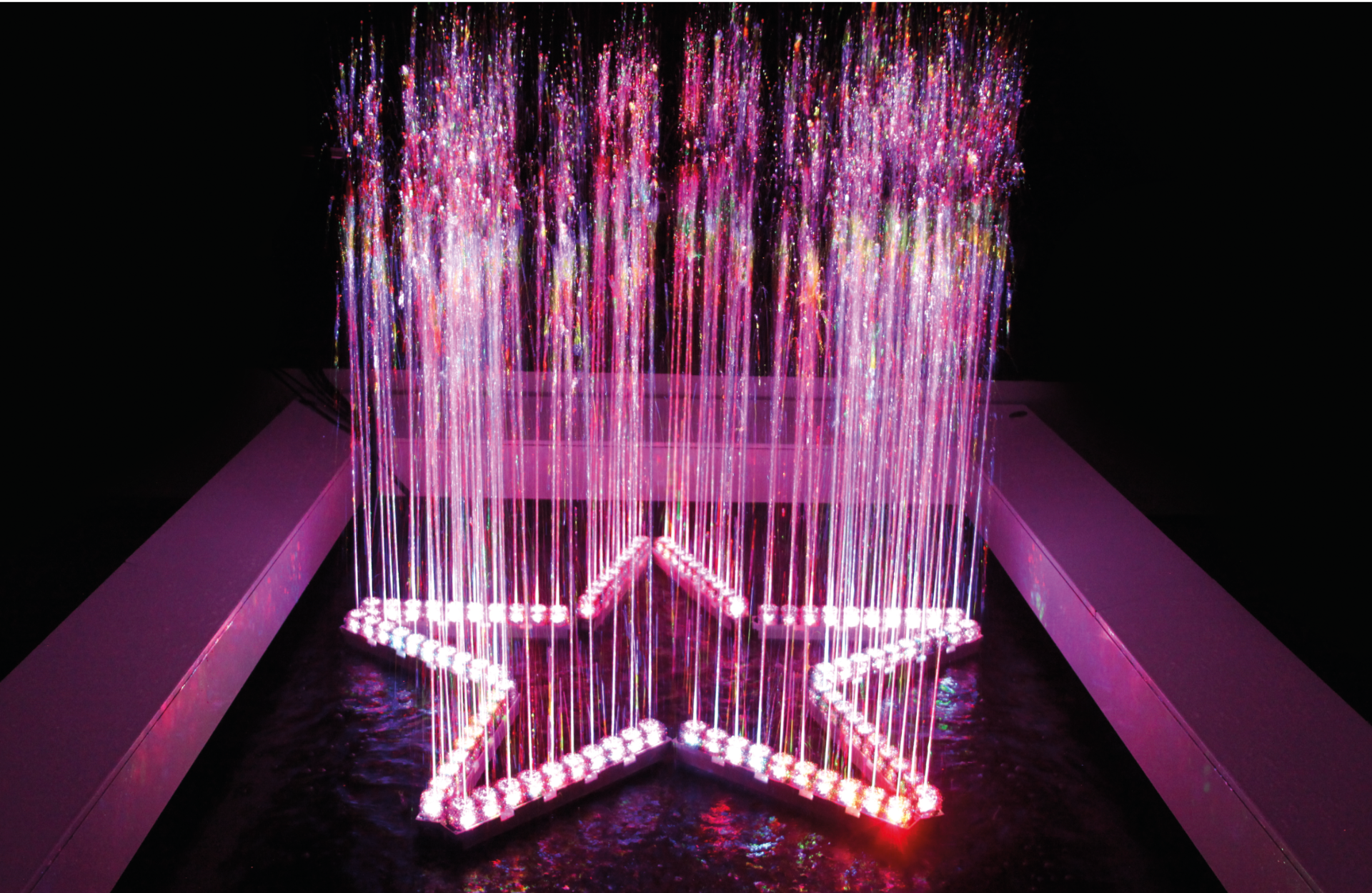

- Single module in star configuration
- Flexible configurable and expandable
HYDRO SCREENS

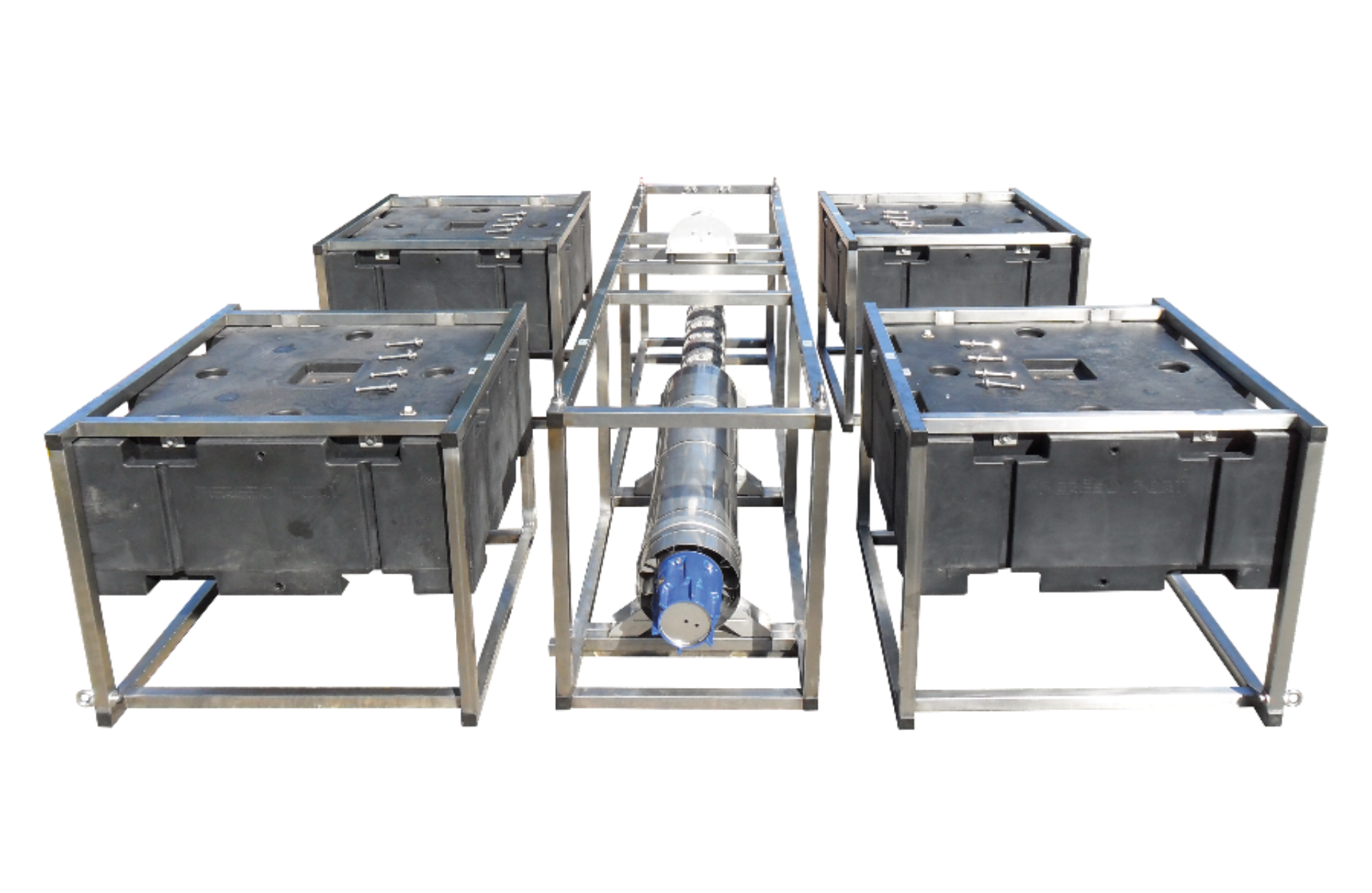

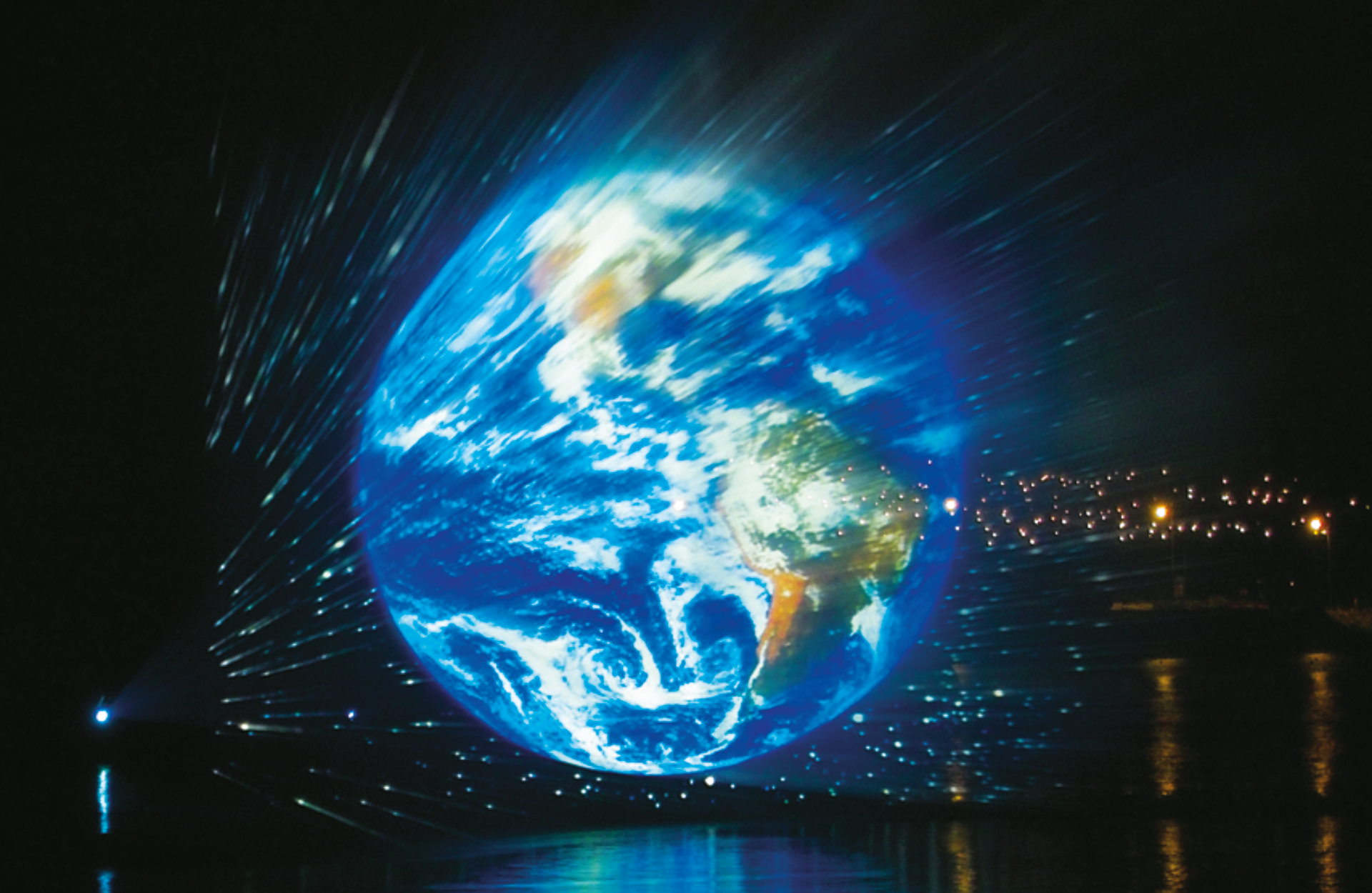

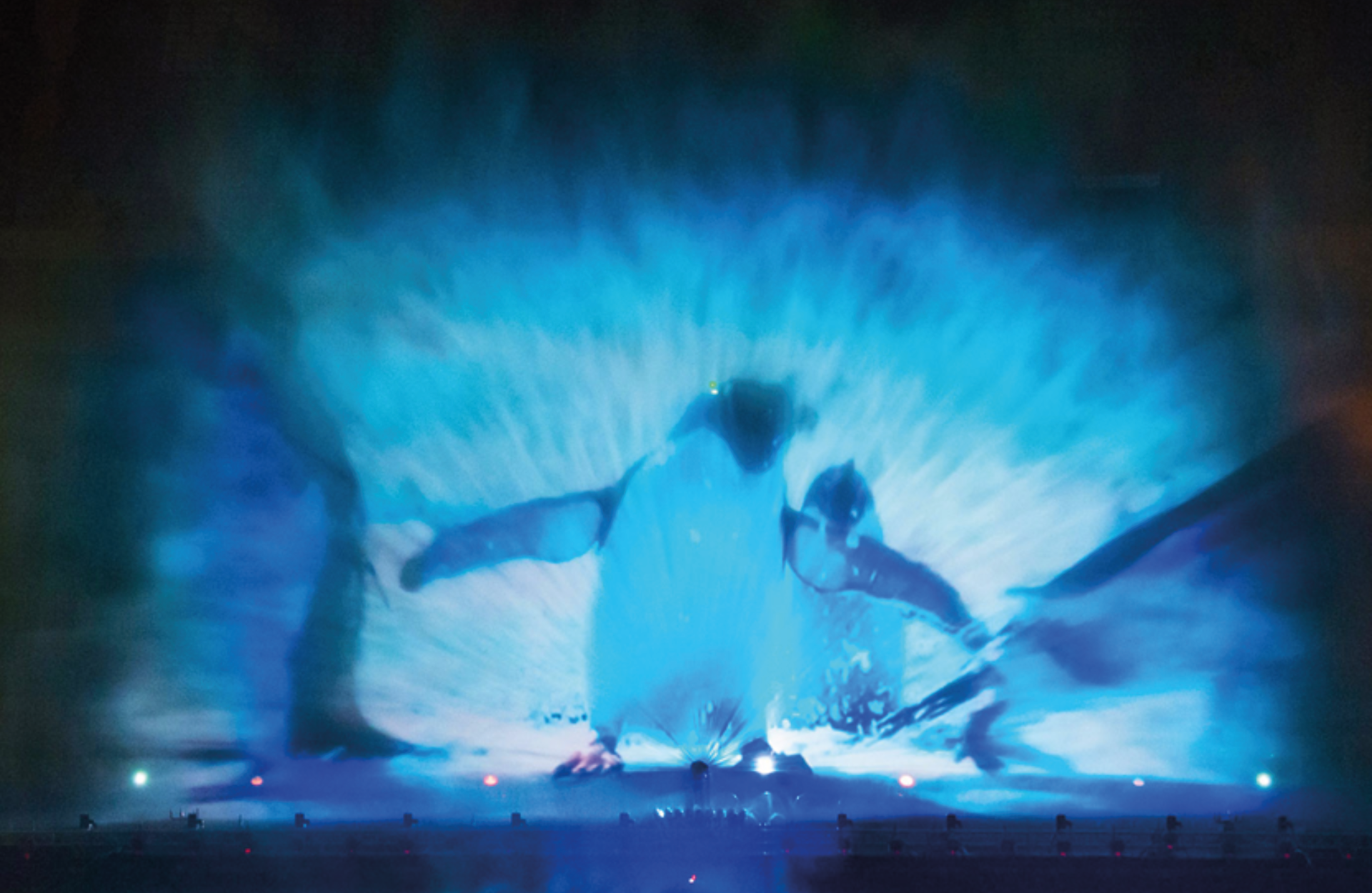

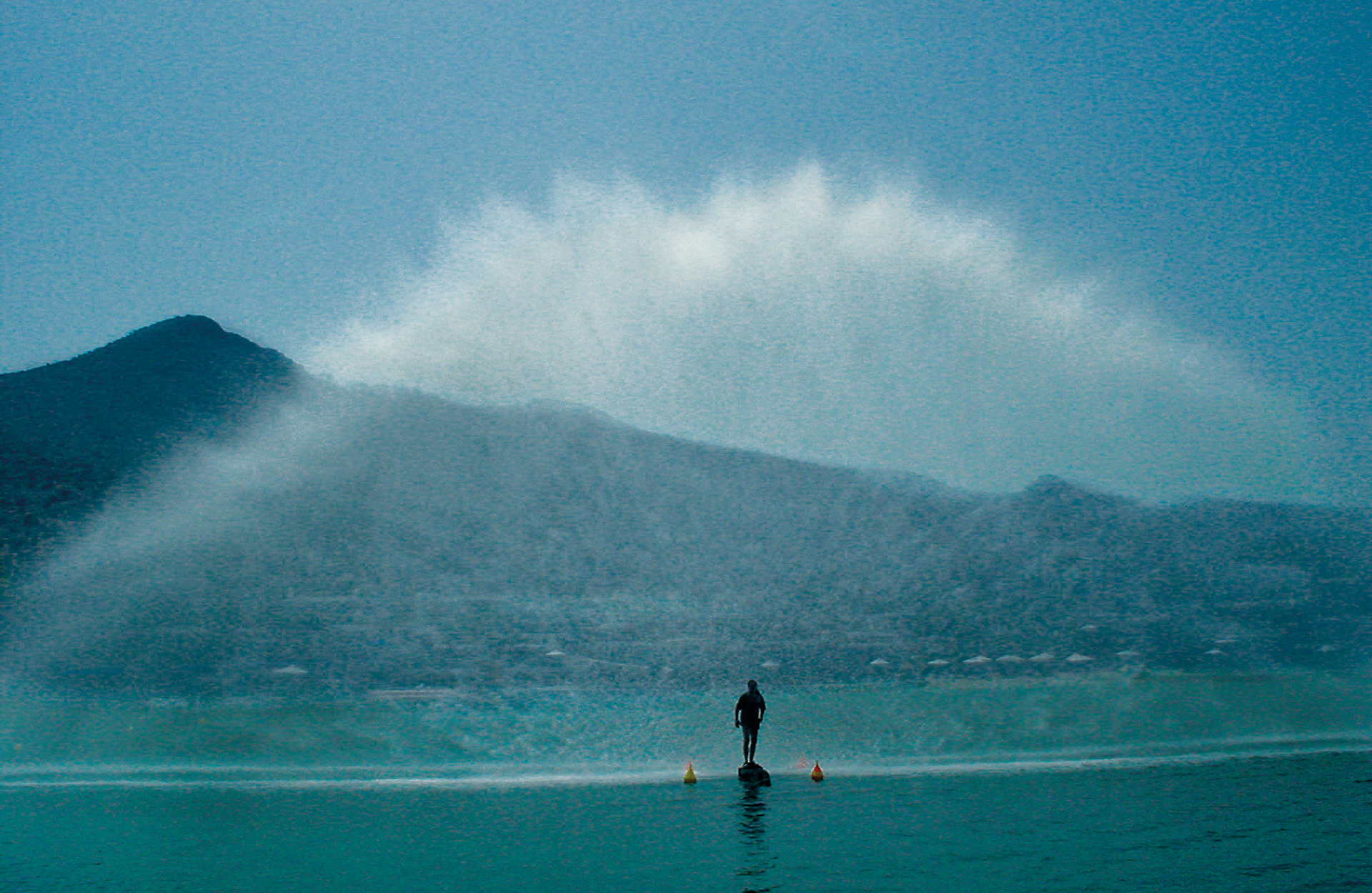

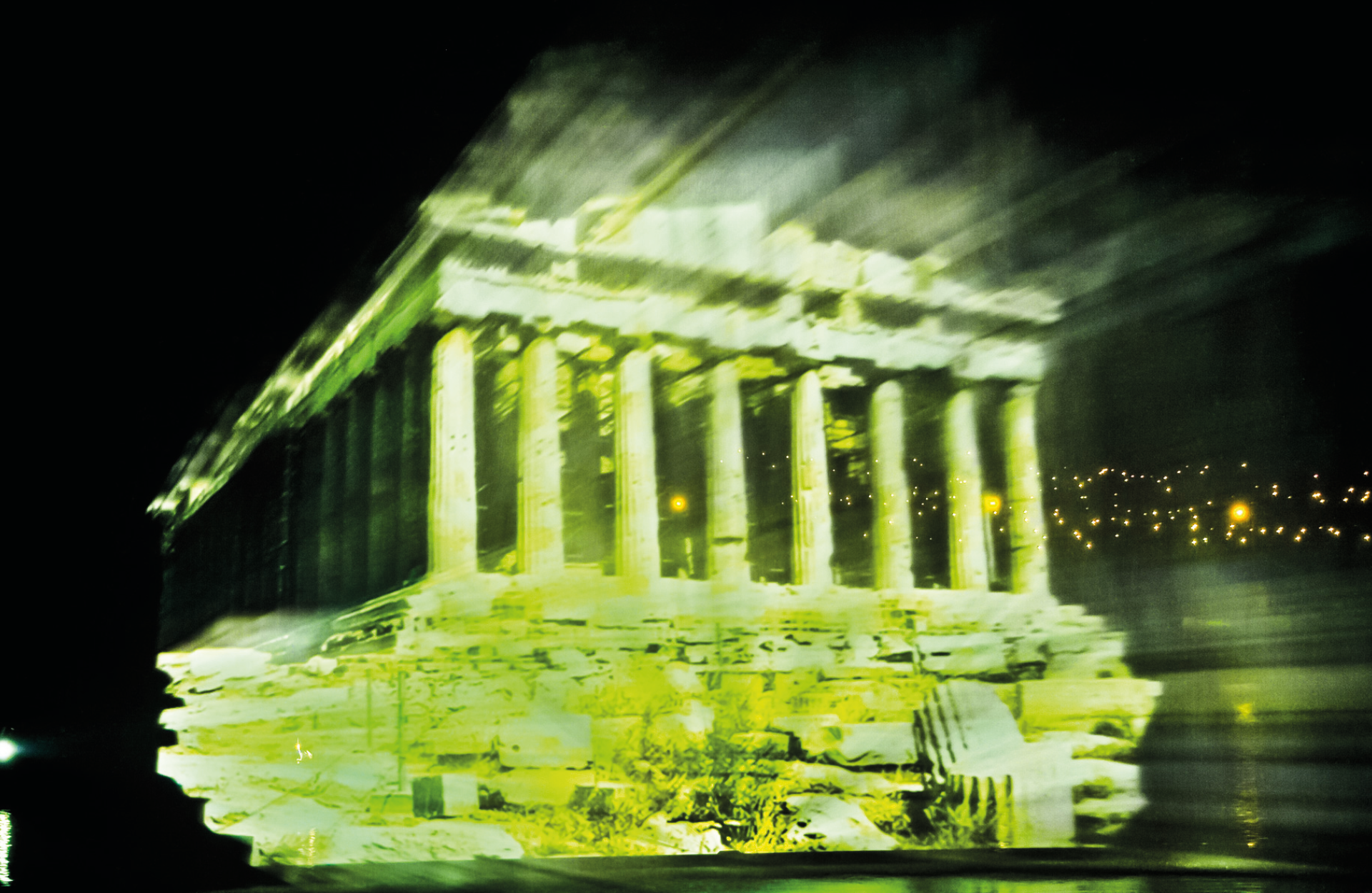

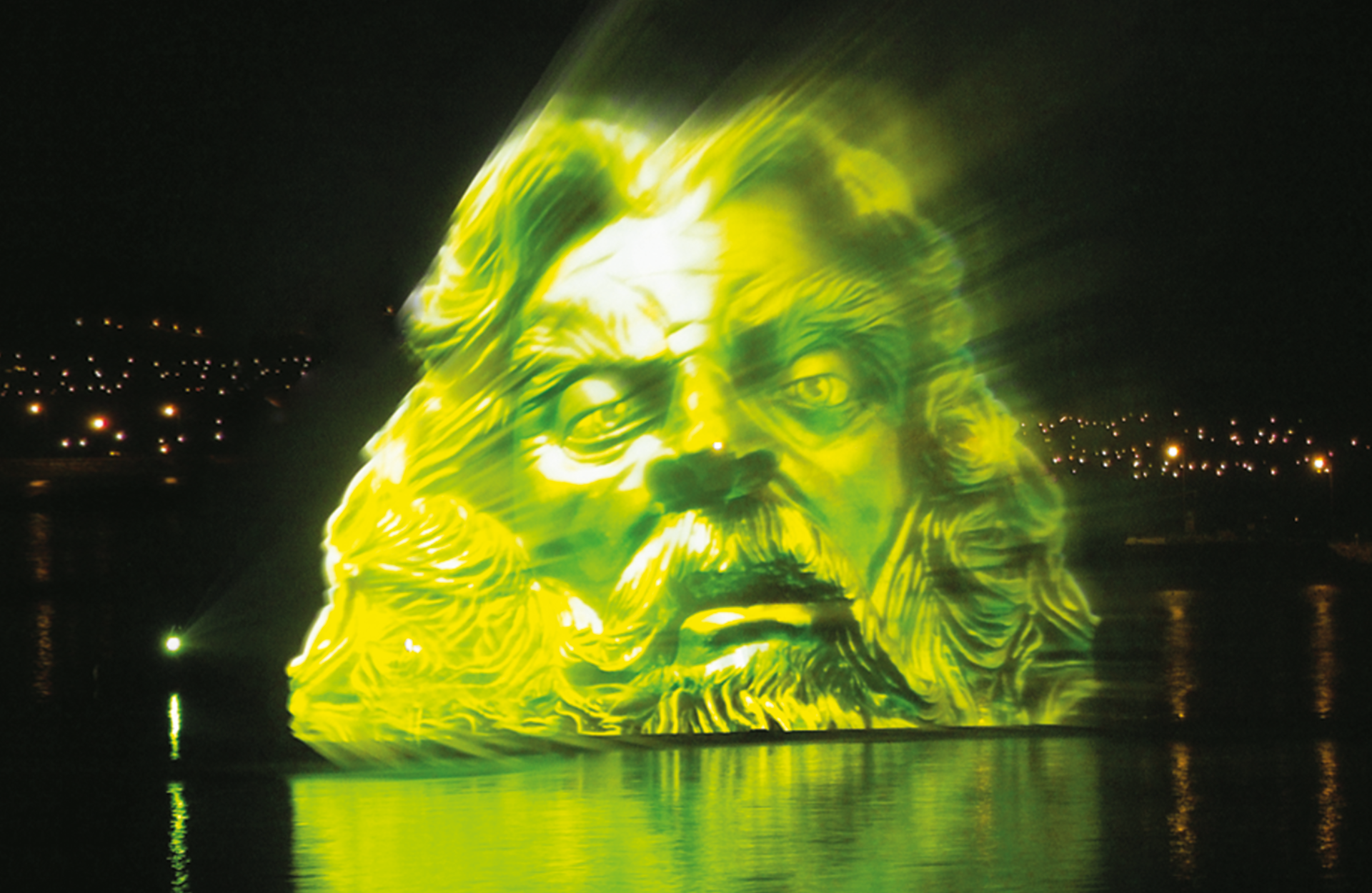

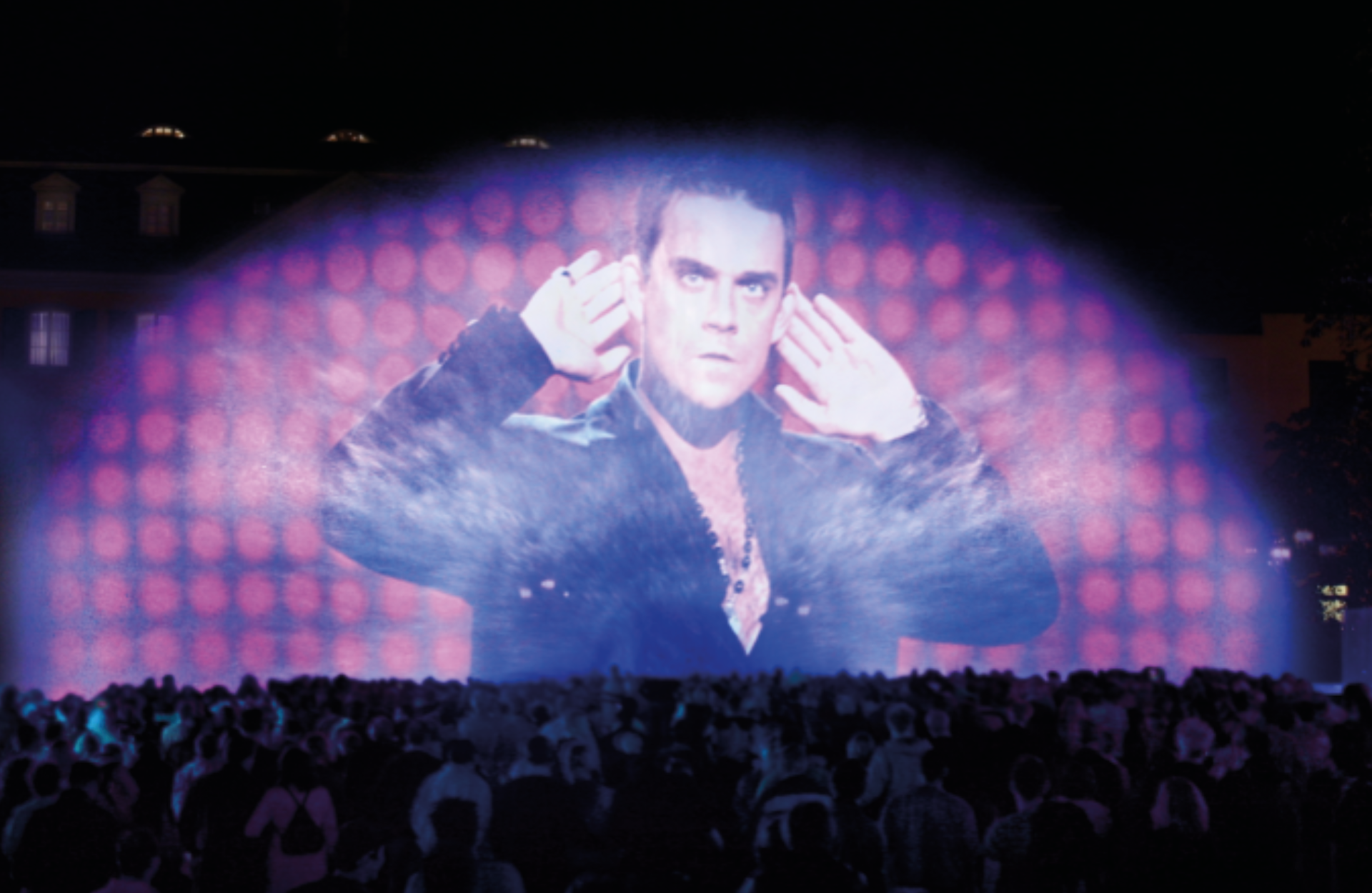

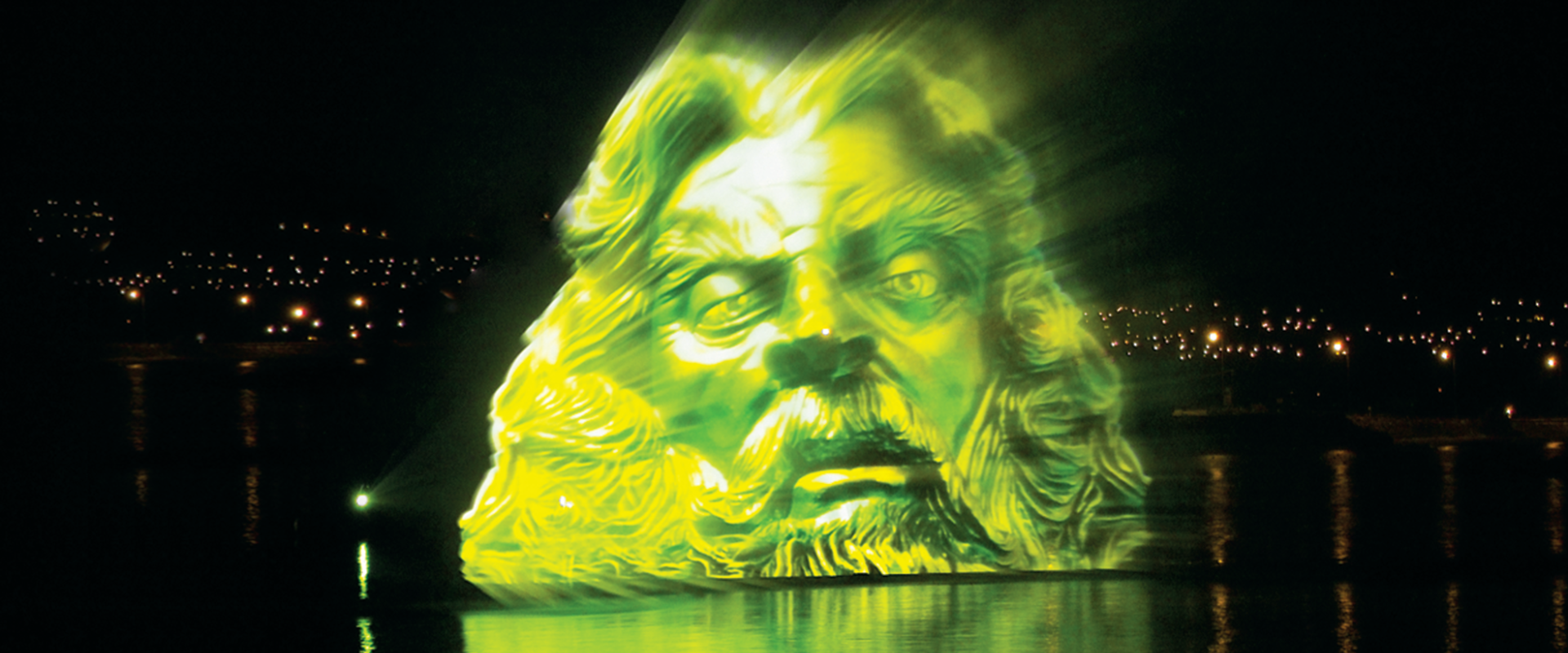

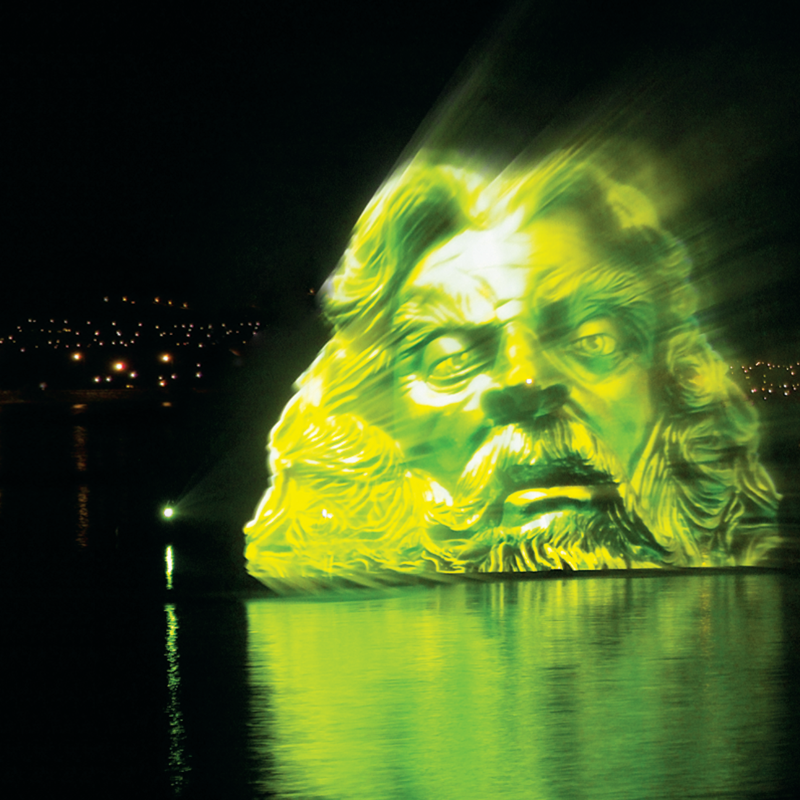

Neptune Hydro Shield
Among projection screens made of fabrics or foils, water screens become more and more popular in the event industry.
The NEPTUNE HydroShield creates a semicircle water wall of up to 20 m hight and 50 m width. It is easy to assemble as it can be directly connected to a hydrant or a water pump. The water flow of these systems is up to 3500 l/min at a pressure of 16 bar.
This product is one of the biggest and most spectacular possibilities to produce a projection screen on water basis for sharp laser graphics or video projections. It offers a giant screen of approximately 10x27m or 17×45 (depending on the version) for amazing displays of graphics content. Storytelling, movies or pictures can be displayed and will astonish the audience as the screen is nearly invisible, coming out in the middle of the water.

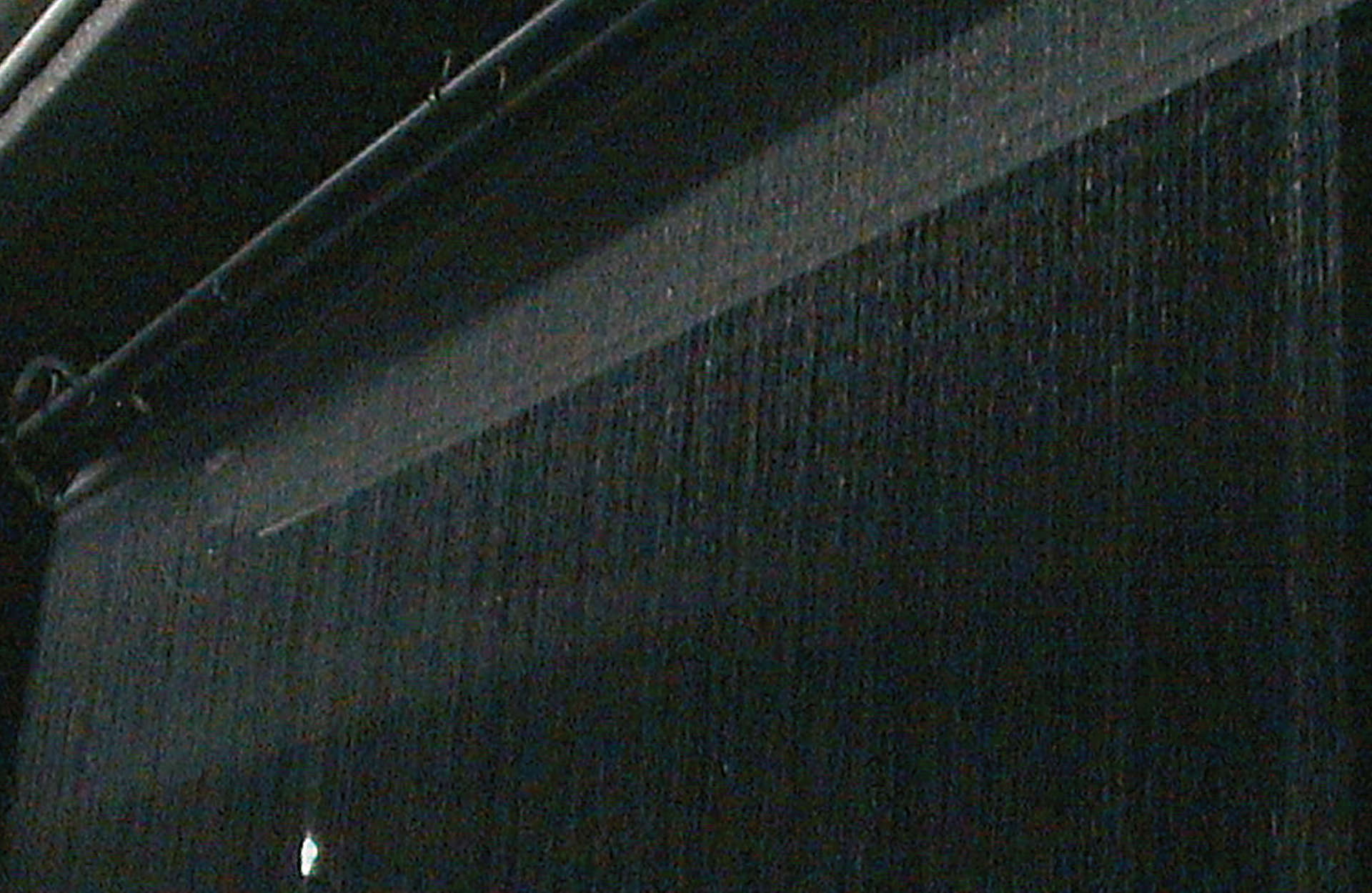

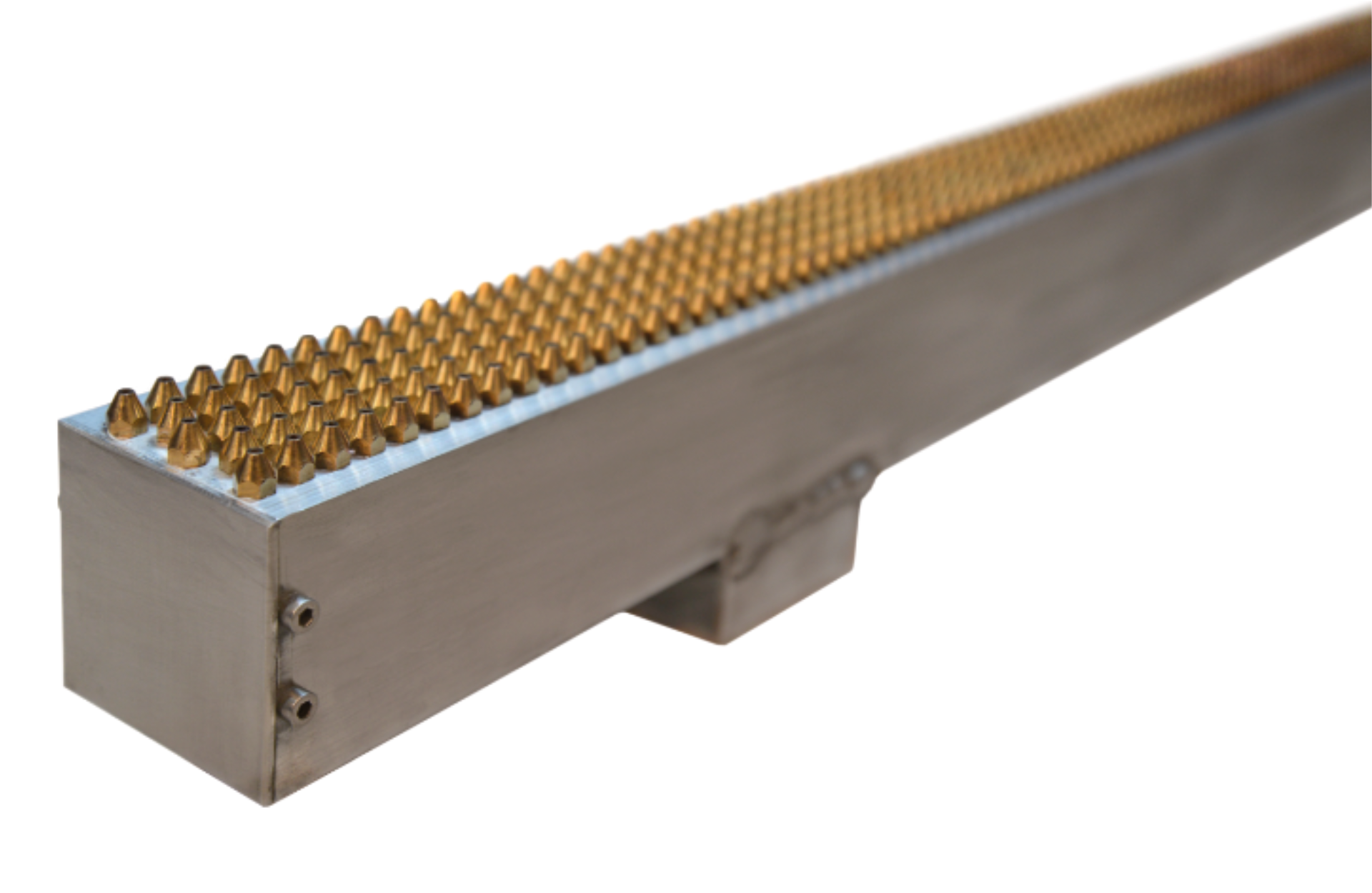

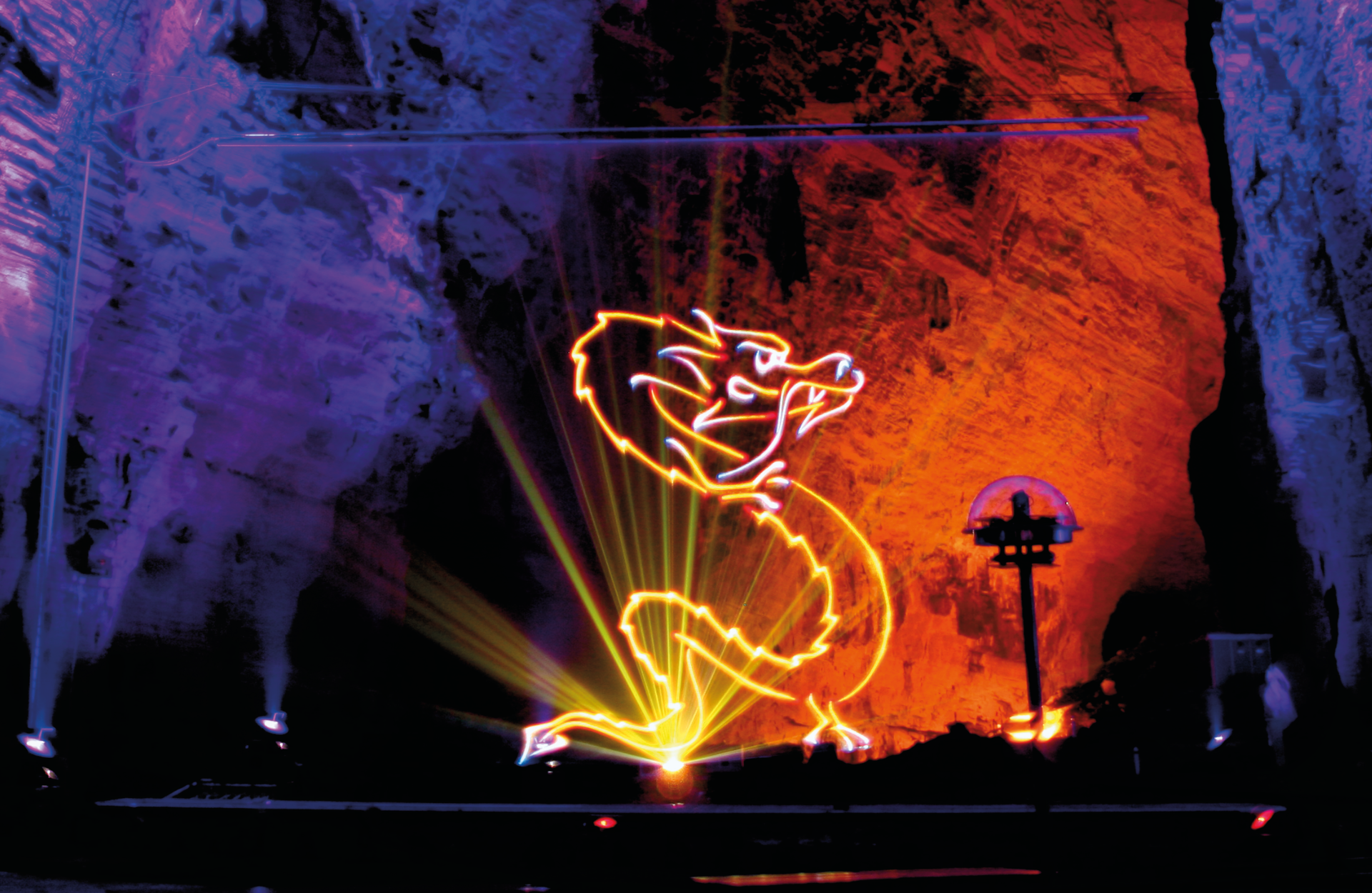

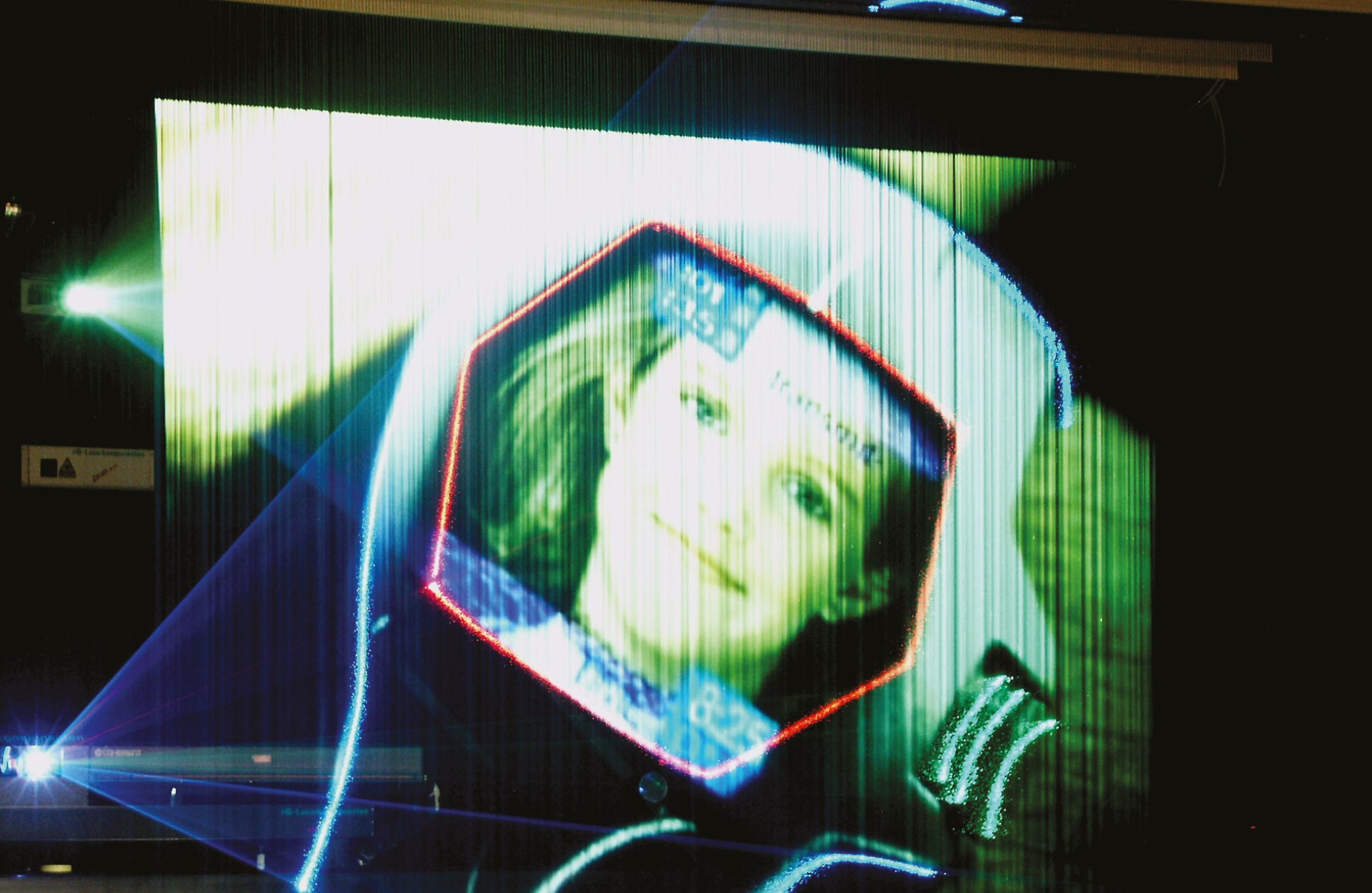

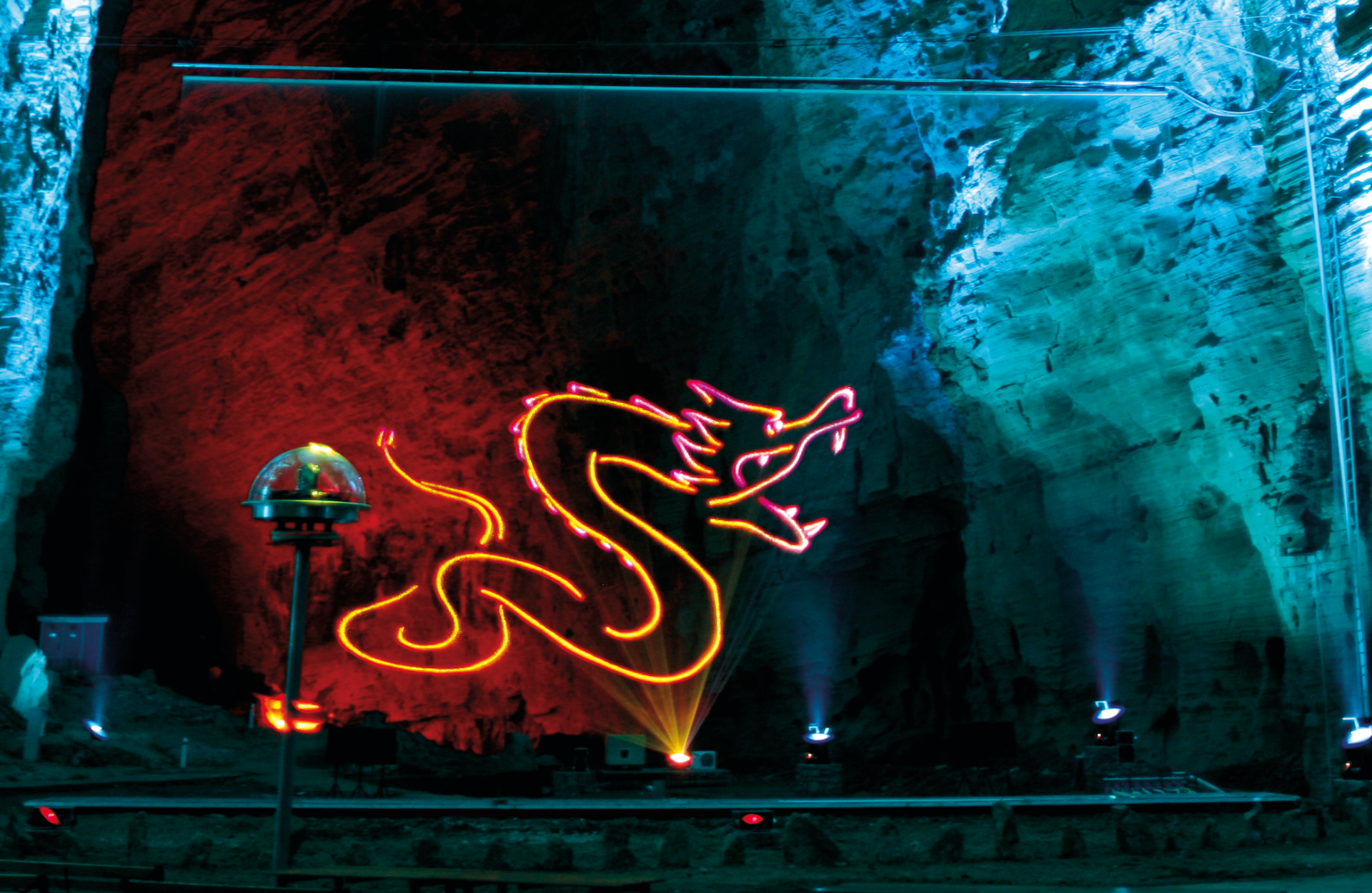

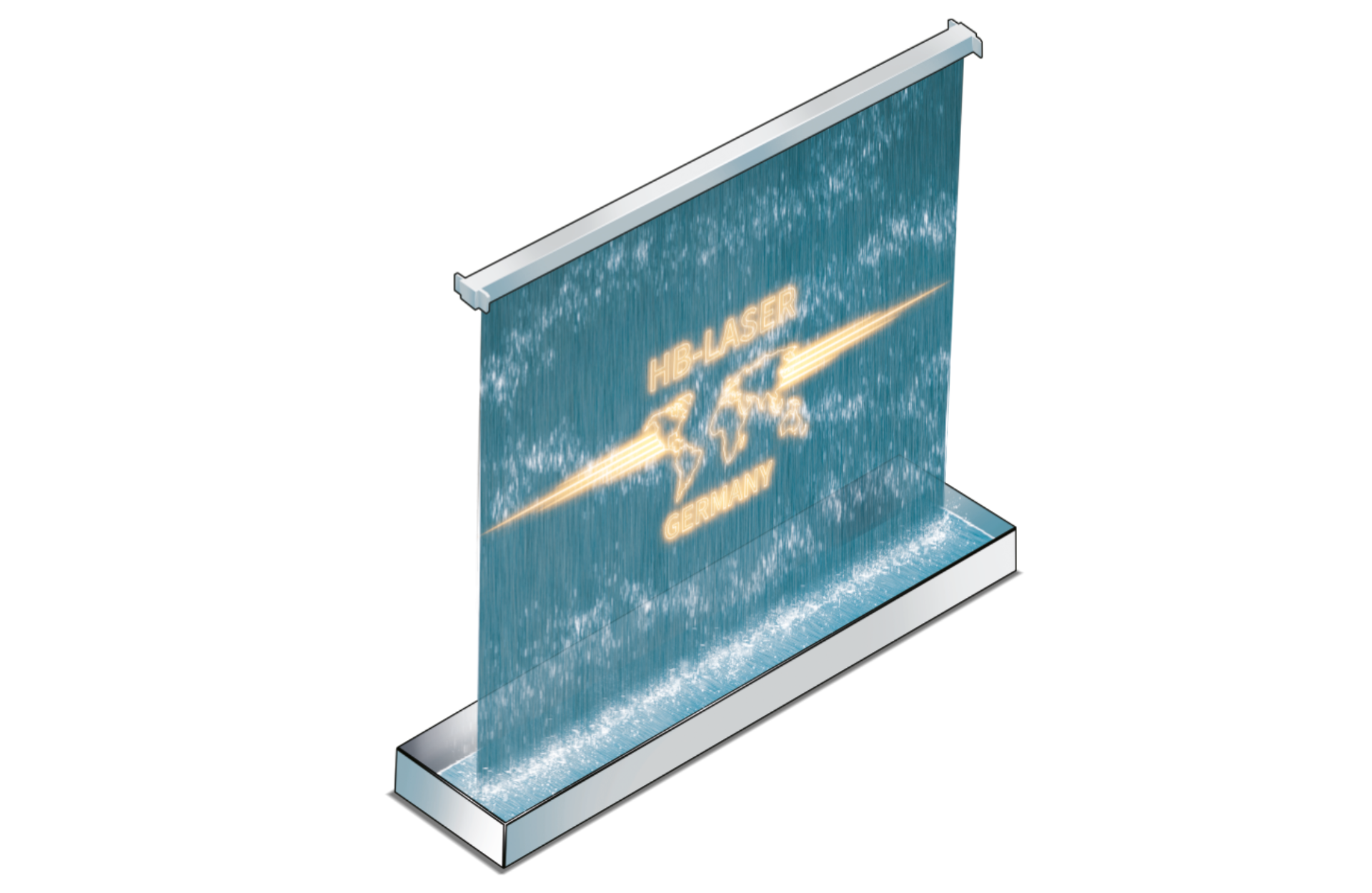

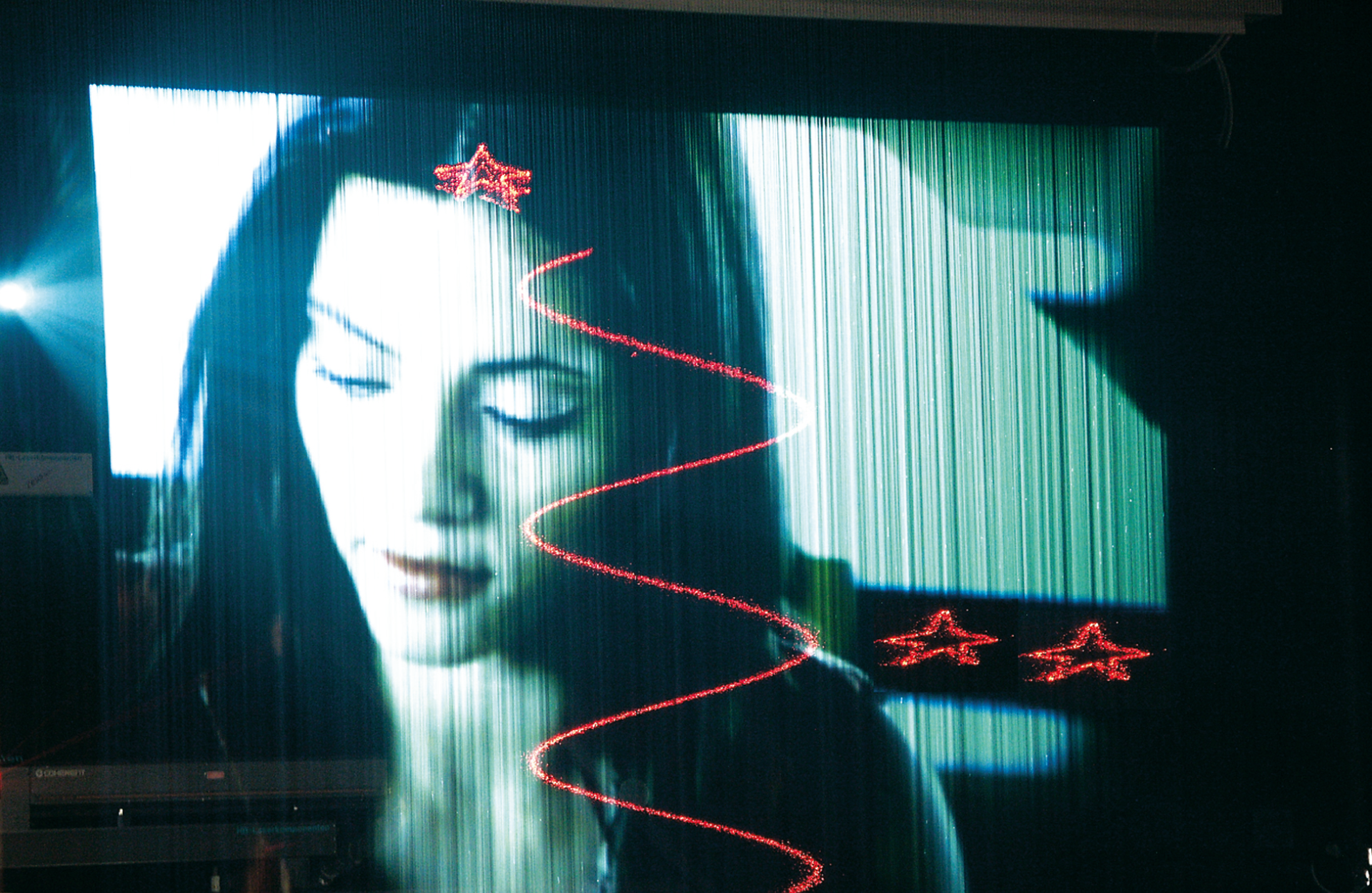

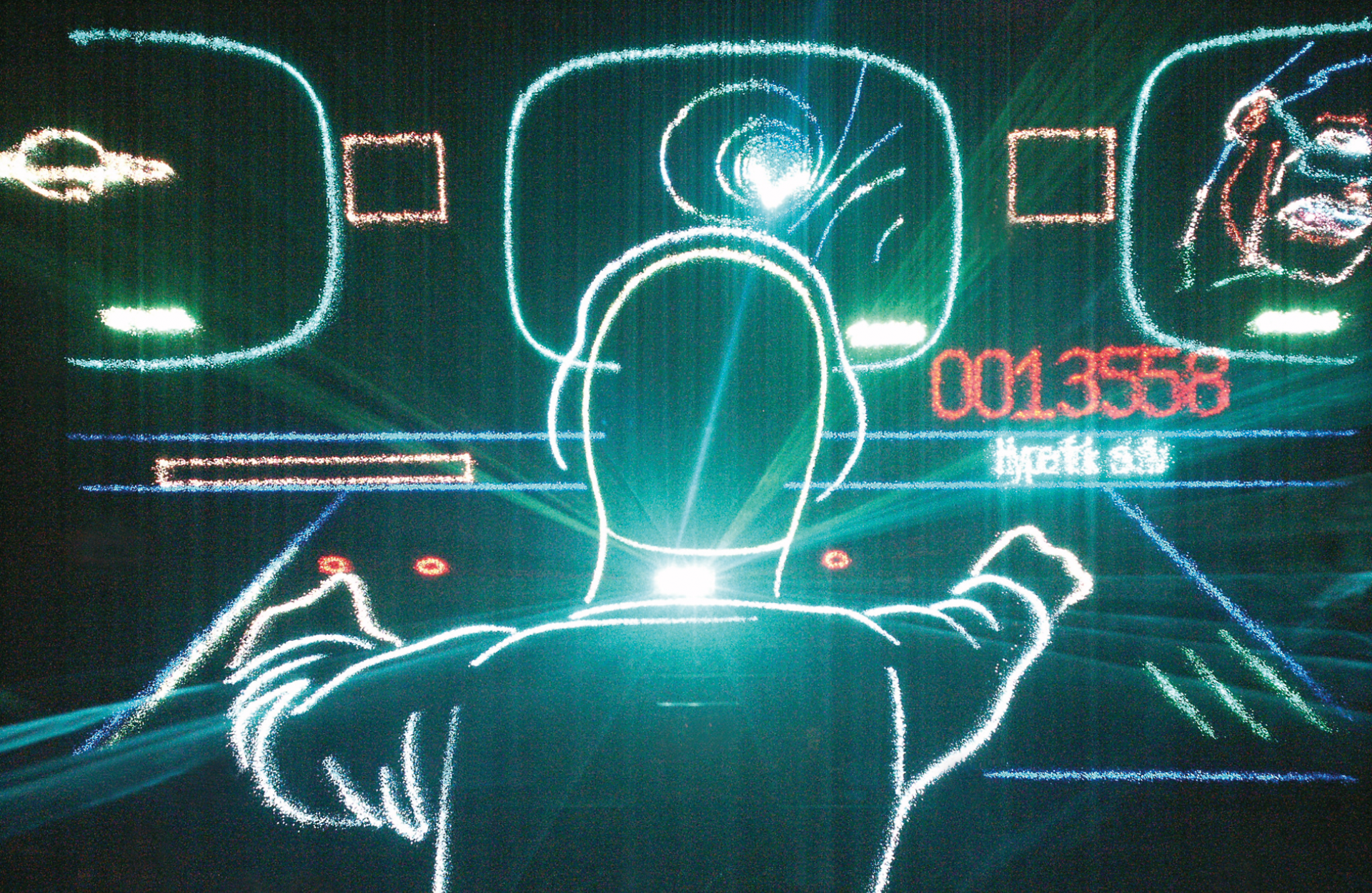

Poseidon Hydro Screen
Besides the Neptune HydroShield the Poseidon HydroScreens are a great feature to use water as a projection surface.
With a big variety of options regarding the number of rows of nozzles and therefore the total number of nozzles (1-3 rows, each equipped with 110 nozzles/meter) the screen can perfectly be adapted for your application even in regards to the material.
Available as straight screens or even as curved screens this product is flexible scalable to any length and is a perfect match for multimedia projects including video or laser projections.
This amazing product will create a nearly invisible screen that will astonish the audience. Different versions of this unique product are available to fit into any application you can imagine. Combining water and light for projection surfaces is a great way to set new standards, especially if the water depth is not enough for using a Neptune HydroShield.
Poseidon Hydro Pixel
This product is a special solution of a HydroScreen not made for projections, but allowing to display texts or graphics.
Equipped with 120 single nozzles per meter incredibly looking figures can be displayed in mid-air falling from above.
The whole solution is flexible scalable in length by combining various 0.8m long segments to the size required.
Any of the single valves can be controlled individually to create surreal effects that will be an eyecatcher, no matter where it will be installed.
OUR DISTINCTIVE
3D WATER
FOUNTAINES

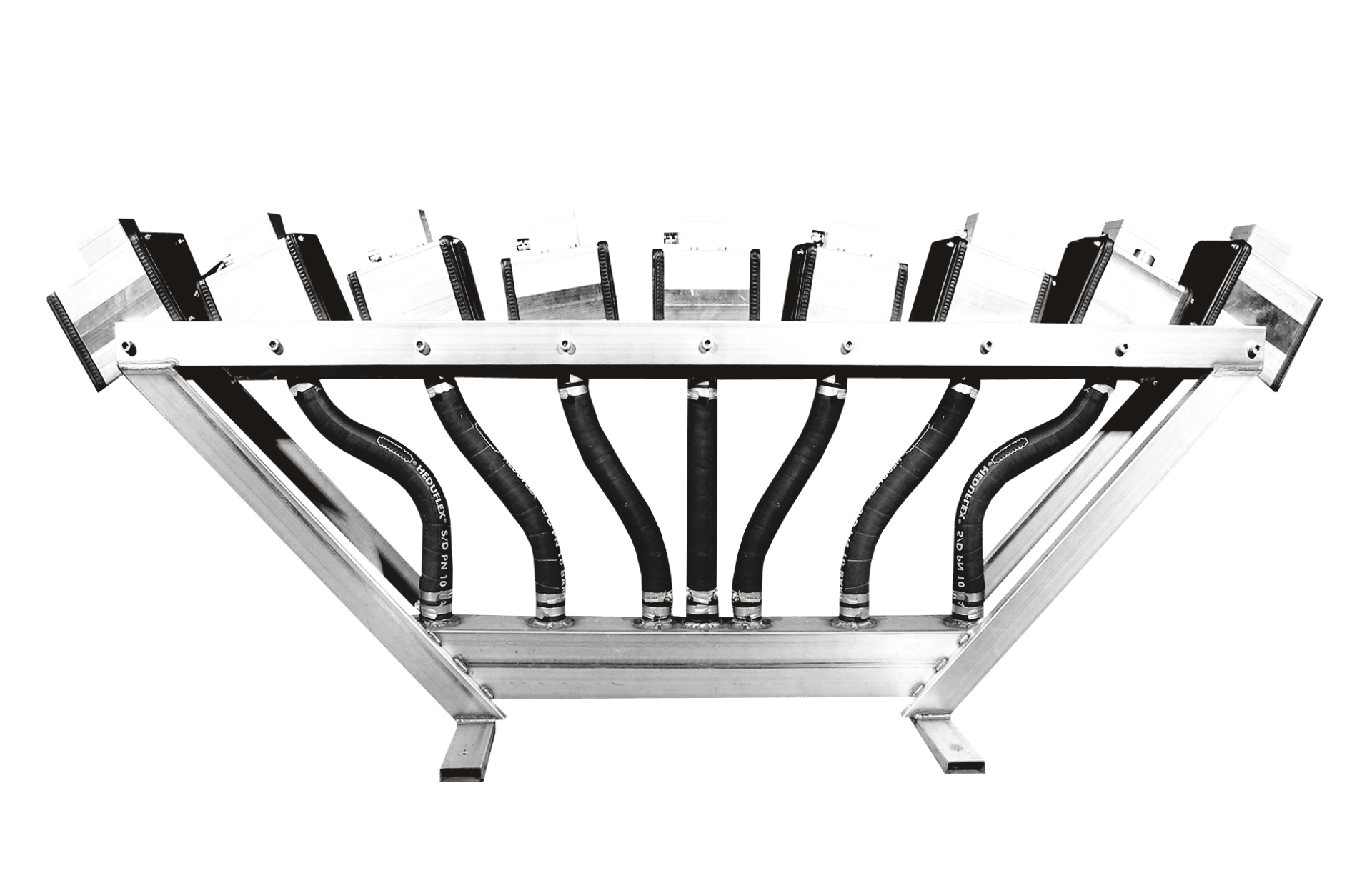

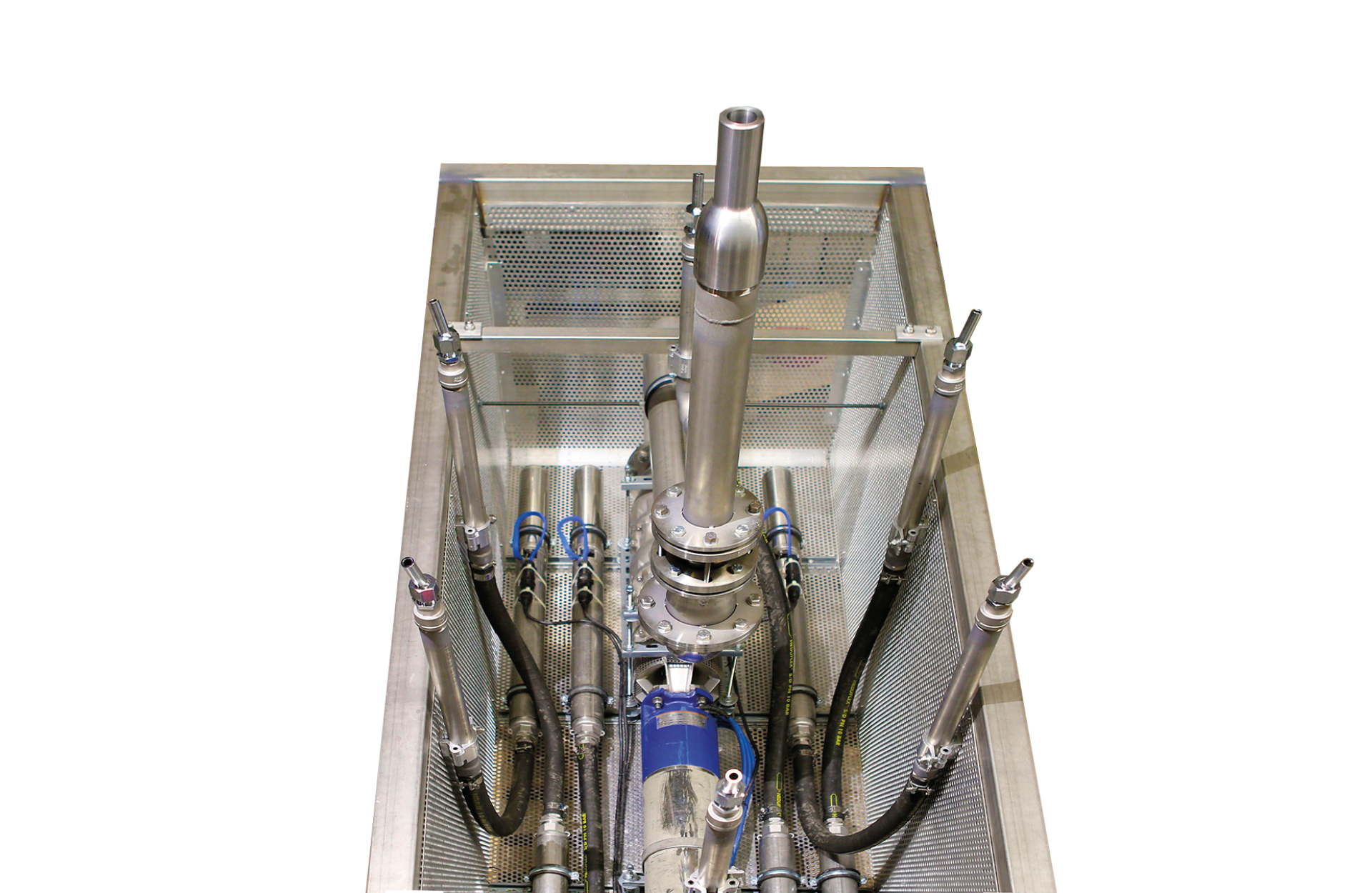

Neptune Aquashutter
Neptune AquaShutter is an amazing solution for high rising, fast shooting spectacularly synchronized water effects.
Due to its 9 single nozzles, combined with a maximum height of 25m and the possibility to adjust each nozzle by +/- 20°, spectacular water effects can be programmed.
With its superior switching time of 0.25 seconds, fast water shots are possible, as well as a constant water stream with an impact unlike any before.

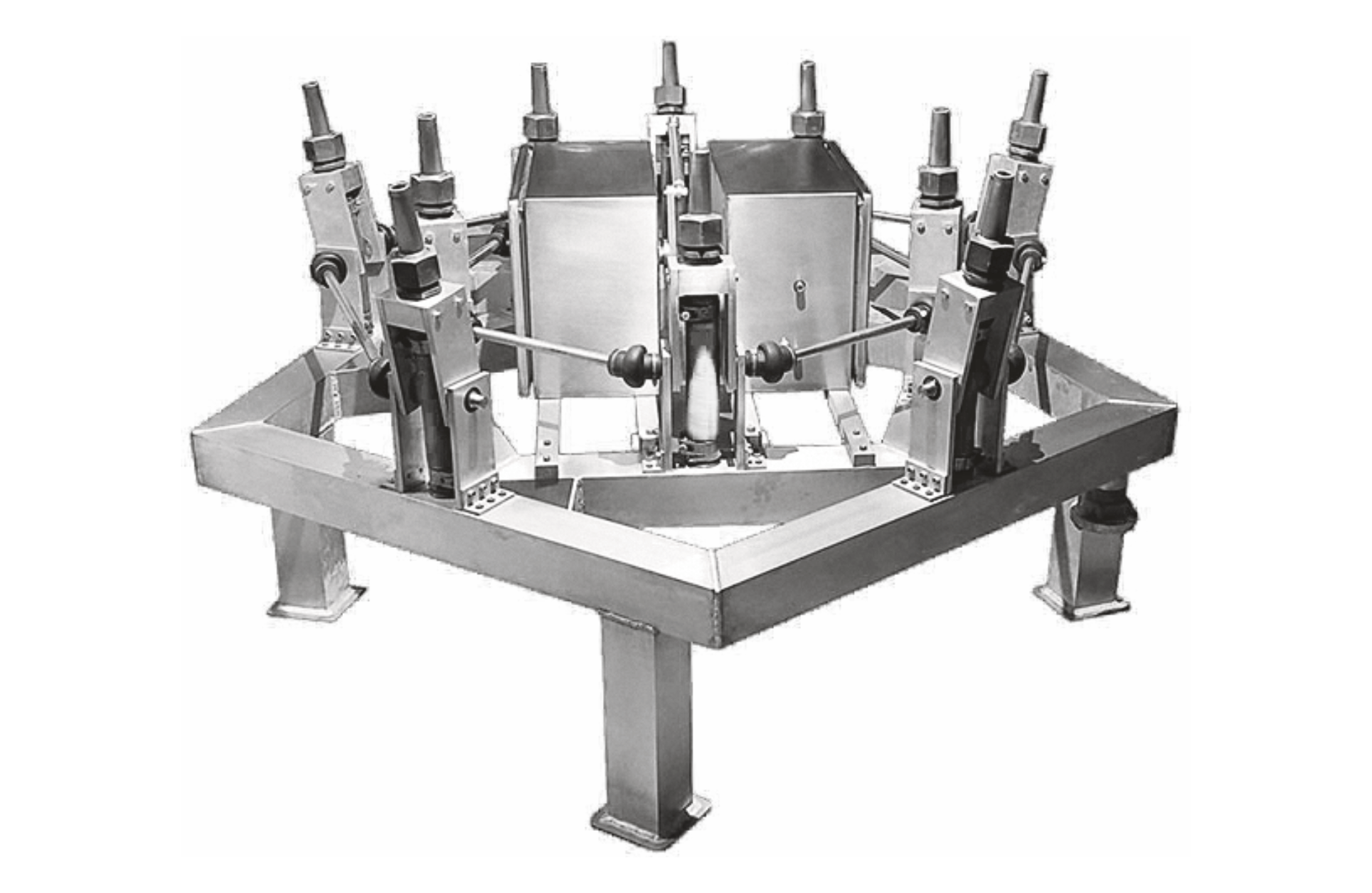

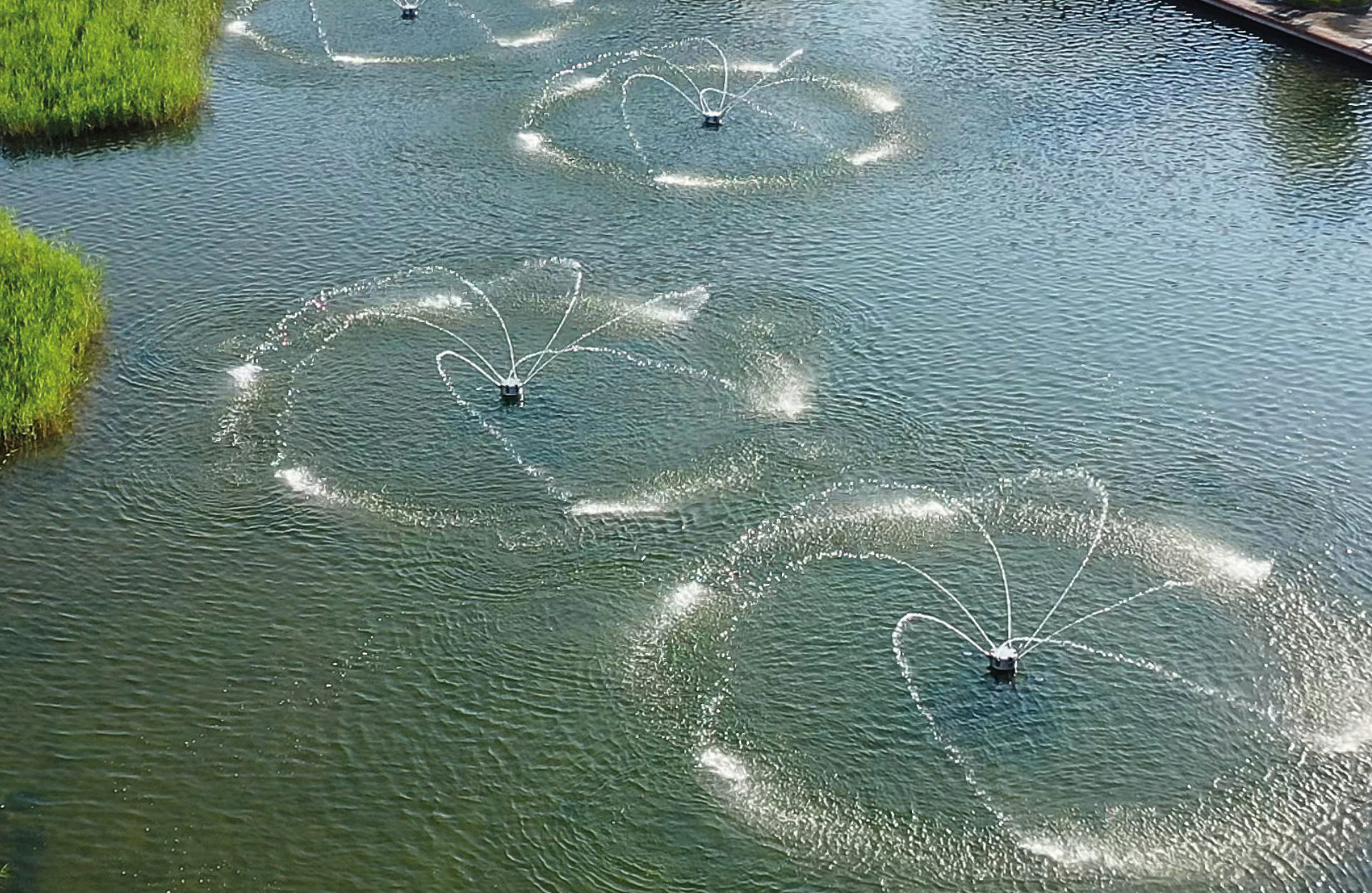

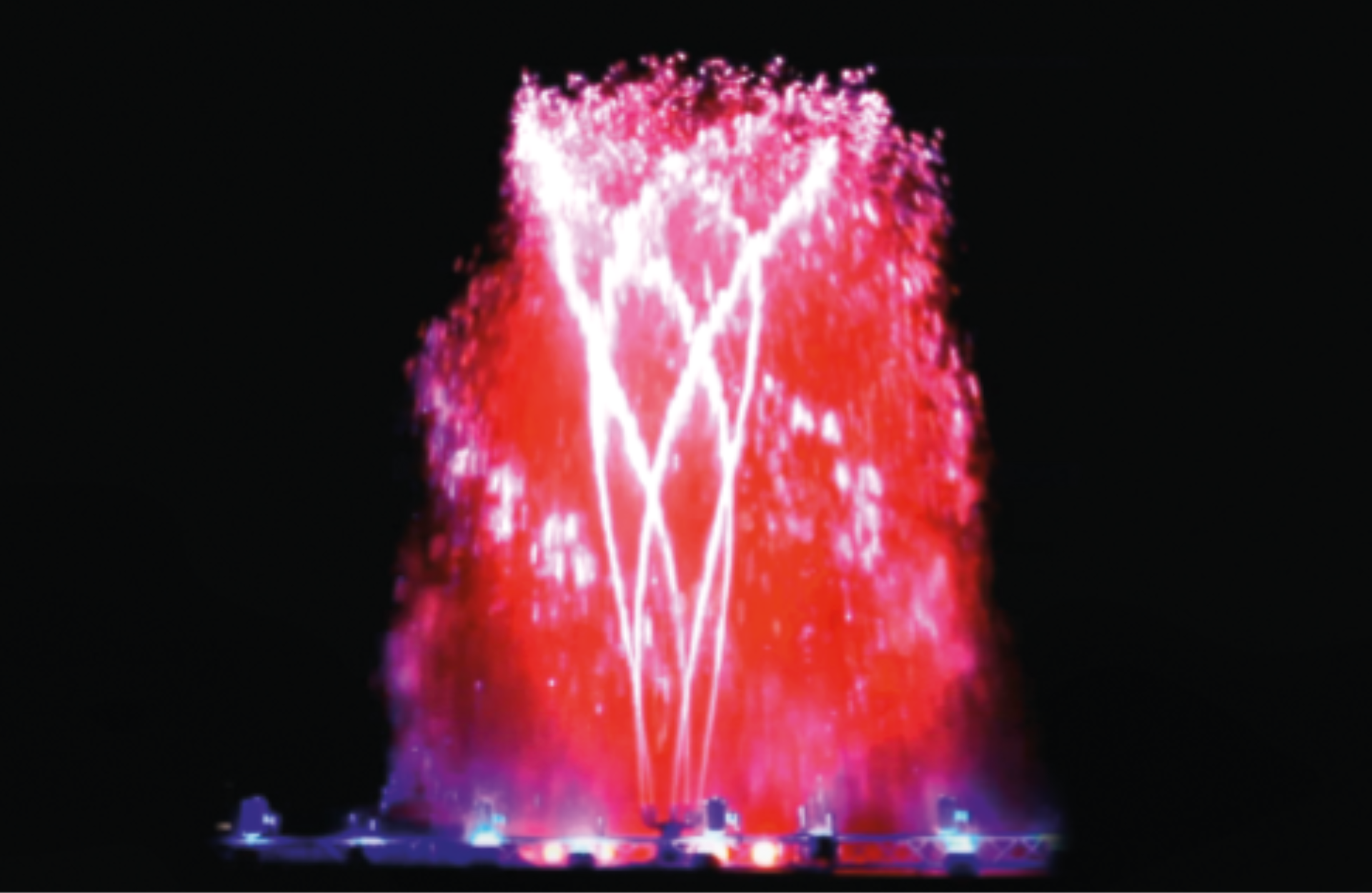

Neptune Octopus
This special nozzle system is based on the principle of the most beautiful water figures – perfect symmetry. Equipped with 10 indivi-dual nozzles, arranged in 2 circles with each 5 nozzles, making it possible to realize astonishing and fascinating water sculptures.
Each nozzle can be moved and positioned perfectly due to servo-motors, which allow a pivoting range of 60 degrees at a maximum speed of 0.9 seconds, producing incredible dynamic effects.
In combination with RGBW LED lights and a maximum height of 25 m and more, the Neptune Octupus is a fantastic add on for any fountain setup, not already having such a unique highlight, producing a variety of breathtaking effects.

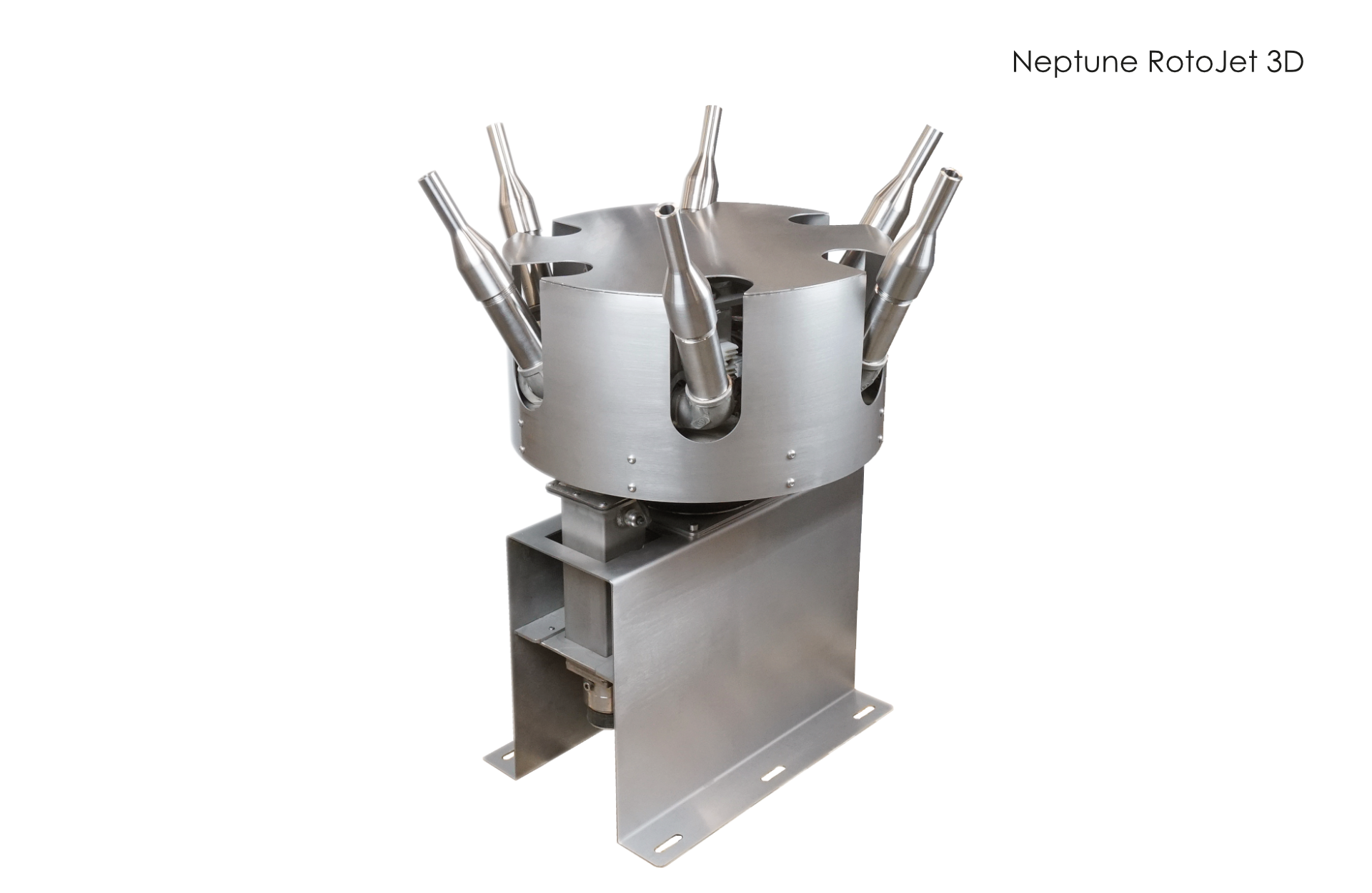

Neptune Rotojet 3D
The Neptune Rotojet is a fascinating, rotating jet combination with 5 nozzles. With the possibility of varying the speed from 0 – 200 rpm in combination with its numerous nozzles, amazing looking pirouettes can be created.
By varying the height and the speed of rotation a wide range of unique and special effects can be pro-grammed.
In combination with the optional RGBW LED lights, colored water pirouettes are the reason for breathtaking moments, when watching the musical and dancing fountain show.
Adaptable water pillar heights from 0 m up to 15 m make this solution a fantastic and flexible product, adding a special value for any water or fountain show in the world.

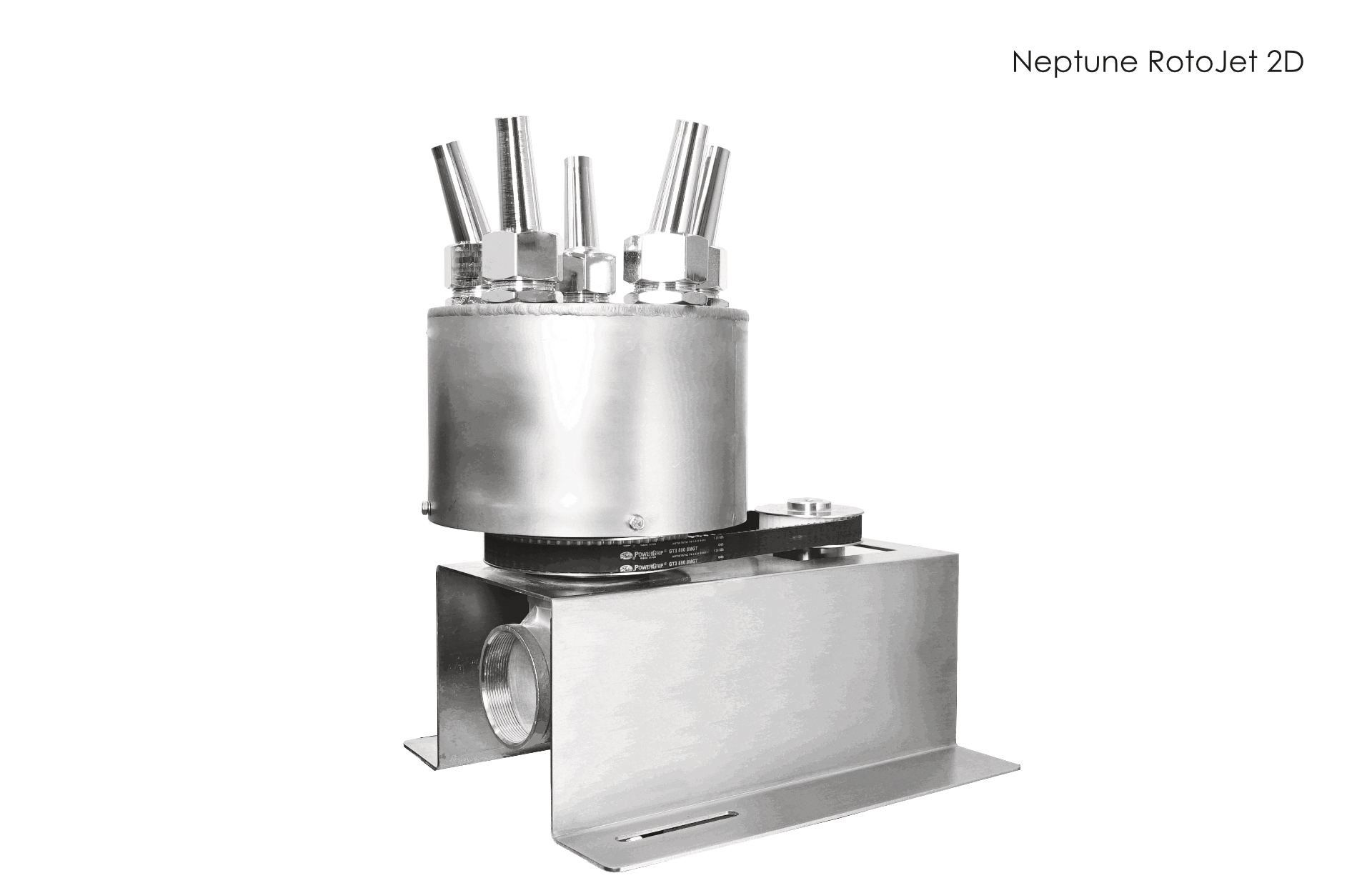

Neptune Rotojet 2D
In contrast to the Rotojet 3D, the Rotojet 2D can only be controlled in height; the nozzles cannot be changed in the horizontal axis.

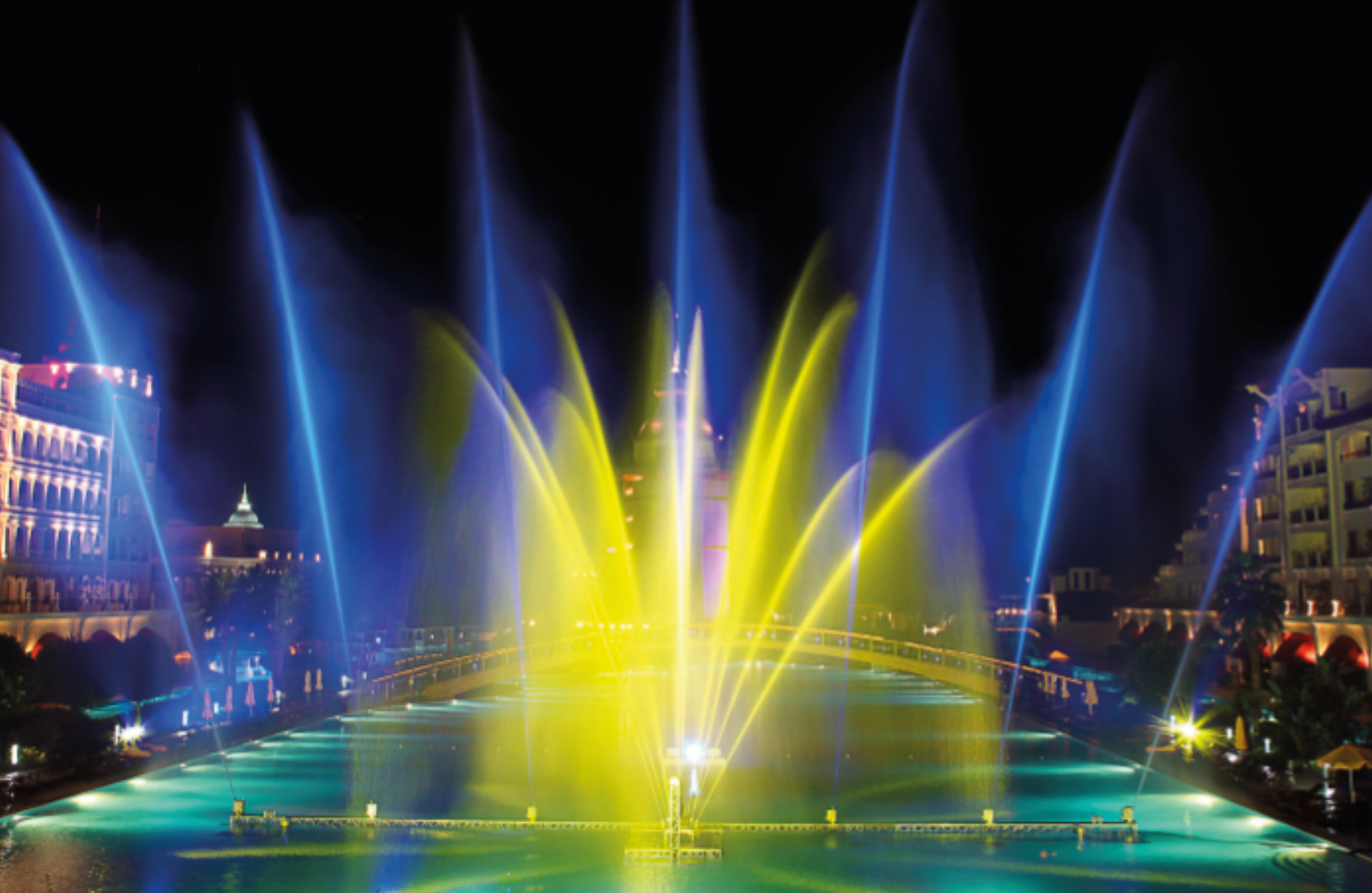

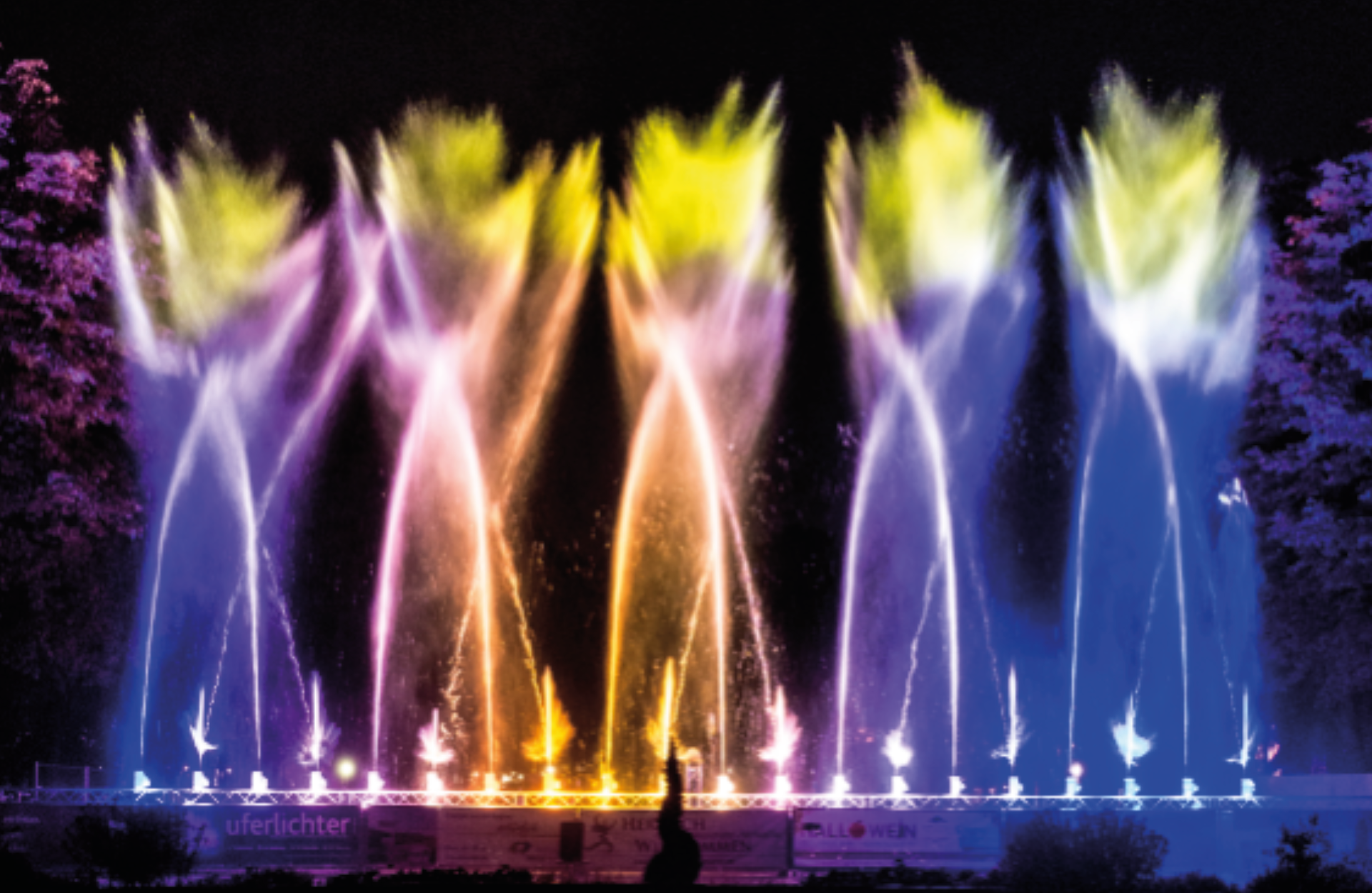

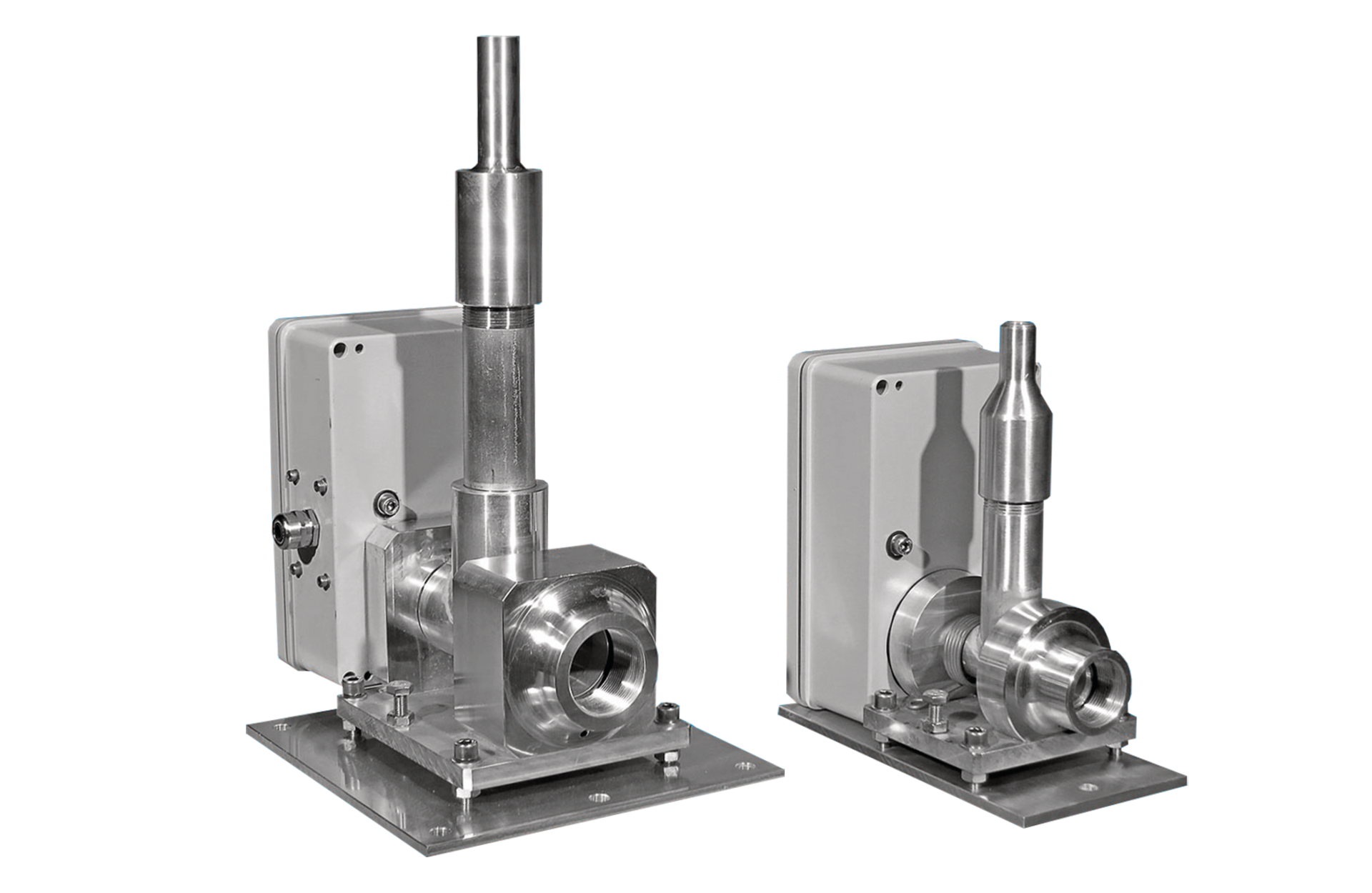

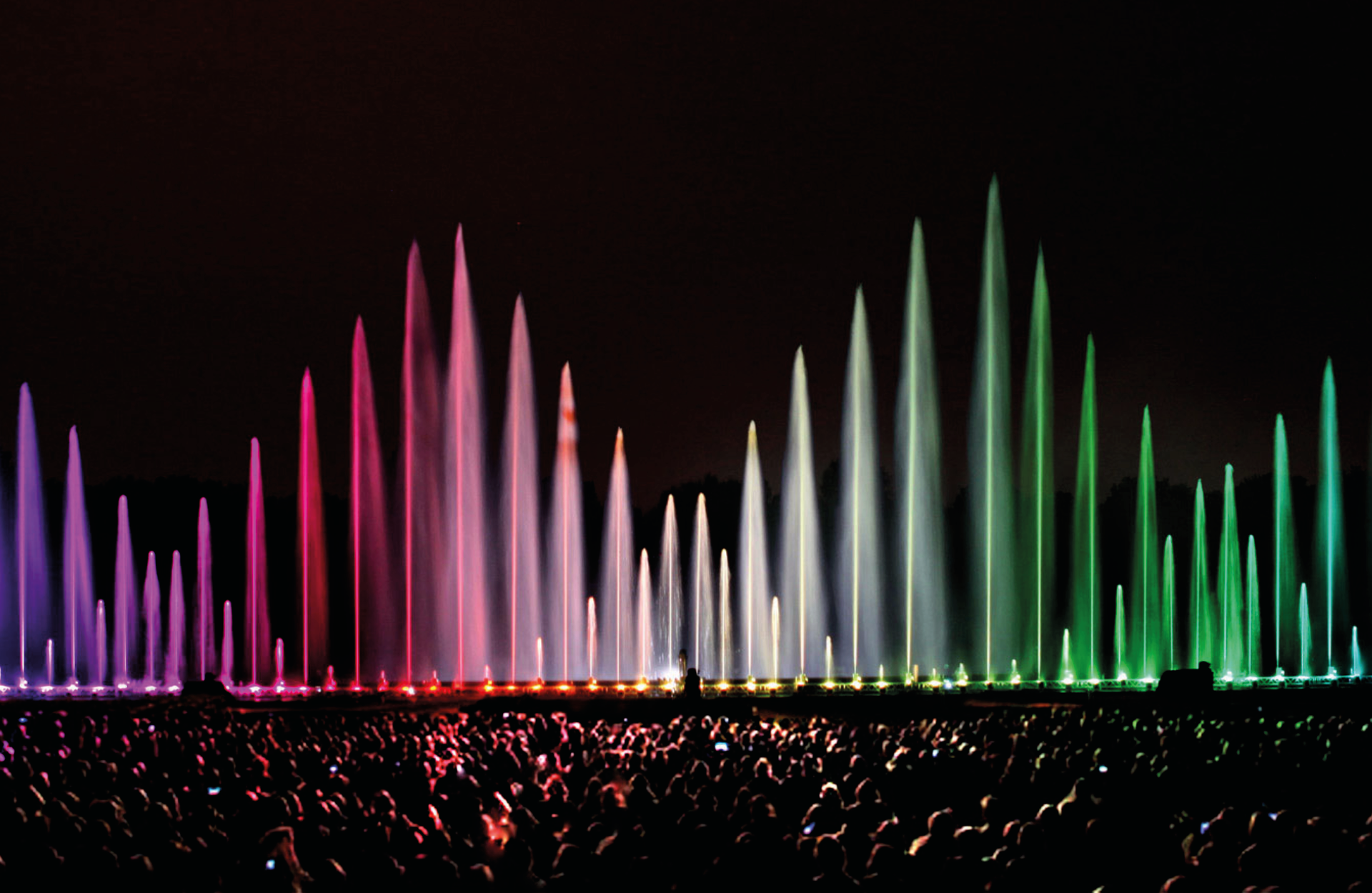

Neptune VarioStream
HB-Laser´s Neptune VarioStream jets are a great solution for any fountain setup requiring the smooth control of different heights. With the optional RGBW LED lights, fasci-nating water pillars can be created. By combining different heights and colors in the programming, amazing water and light effects can be created:
Compositions can be realized, suprising spectators. Equipped with different pumps, the range for the maximum height varies from 12m up to 45m. This system was dimensioned to enable rapid motor runs in short intervals. By being able to regulate the water height smoothly, nu-merous effects can be achieved.
The interconnection by bus system on DMX allows unbelievable dyna-mic and static effects.

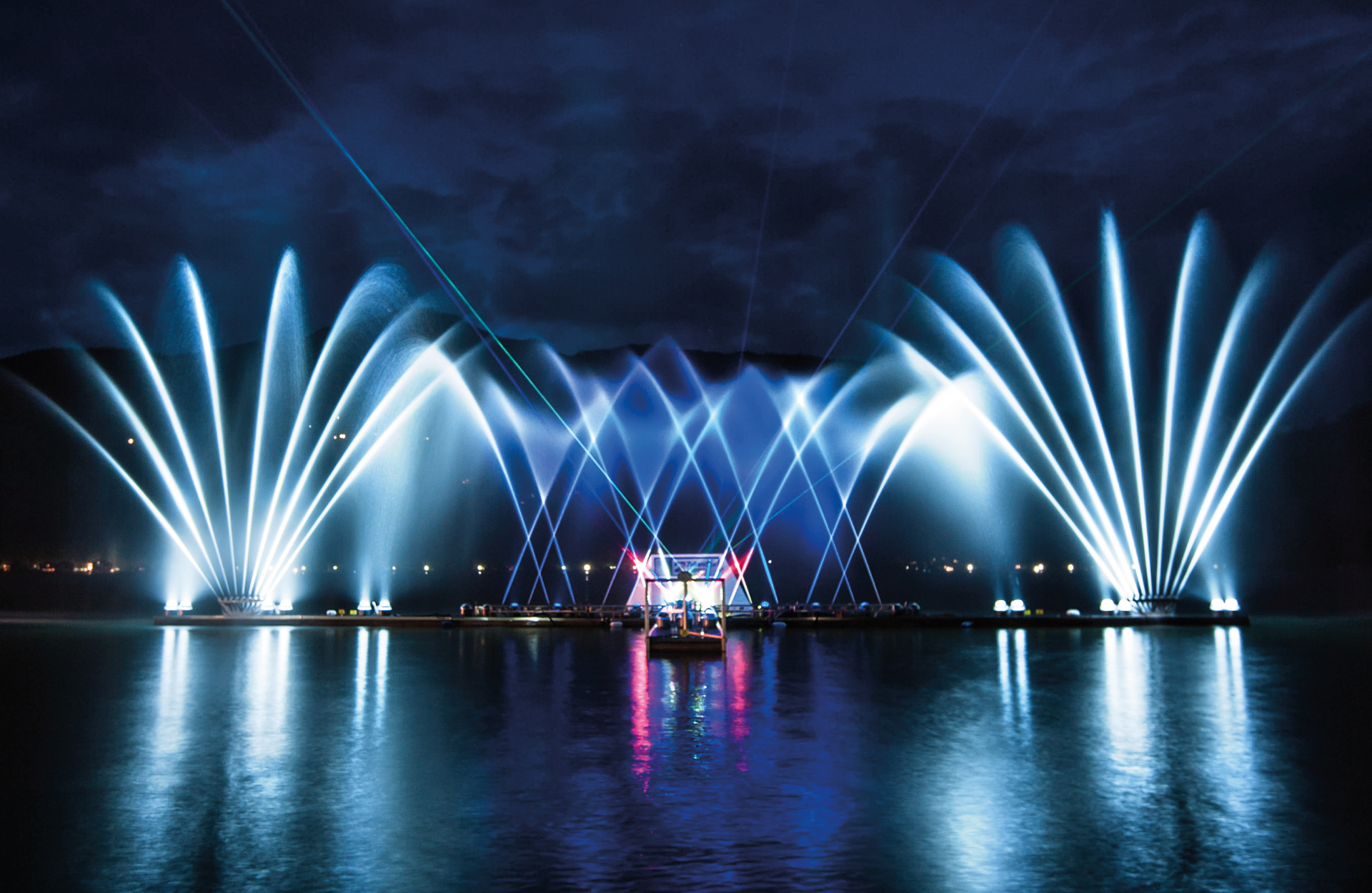

Neptune MoveStream 2D
HB-Laser´s Neptune MoveStream jets are a great solution for any fountain setup where different heights with the option of swinging on one axis, are required. With the optional RGBW LED lights fascinating dancing effects are possible.
By combining different heights and synchronized or desynchronized movement together with a variety of colors in the programming, amazing water and light com-positions can be realized, which will astonish any spectator.
Equipped with different pumps the range for the maximum height varies from 18m up to 45 m. This system was dimensioned to enable rapid motor runs in short intervals. By being able to regulate the water height smoothly, numerous effects can be achieved. The intercon-nection by bus system on DMX allows unbelievable dynamic and static effects.

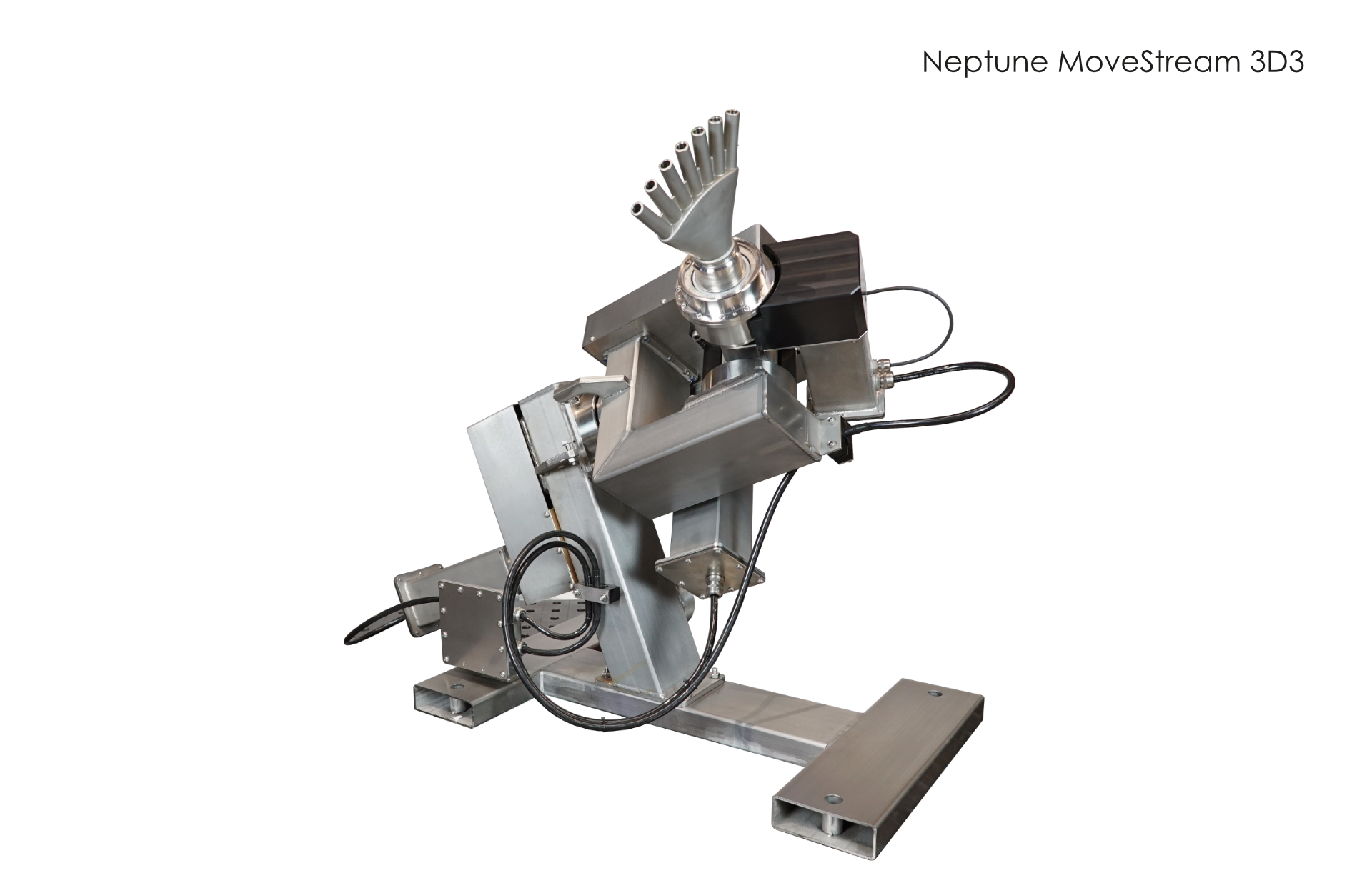

Neptune MoveStream 3D
The Neptune MoveStream 3D series provides amazing features as this is the first product in the world with the possibility of revolving endlessly on its Y axle and 180° swing on its X axle. Using this product will make a massive impact on any fountain installation claiming to be among the top Dancing or Musical Fountain setups in the world.
Nearly cutting off any limitation, the design possibilities are nearly endless and new choreographies, never been there, can be achieved. Combining a swinging nozzle with the option to simultaneously rotate endlessly allows designers to realize nearly any effects they can imagine.
This product will bring fountain dreams come true and is a must have for any superior installation around the globe.
Neptune LaminarJet
The Neptune LaminarJet offers a unique water feature and impresses with laminar water jets that are up to 4 meters high and 5 meters wide. Low Power 800 W pumps produce extremely homogeneous water jets which shoot in arcs through the air and provide an amazing ambience. The laminar jet always hits the same target.
Whether by day or by night, the new Neptune LaminarJet offers a spec-tacular water show with RGBW lighting. The jets are stable enough to transport light like an optical fiber. The Neptune LaminarJet works with integrated RGBW LEDs and they are not illuminated from the outside like other fountains. Because of the illumination from inside, the water jets look like shining glass rods.

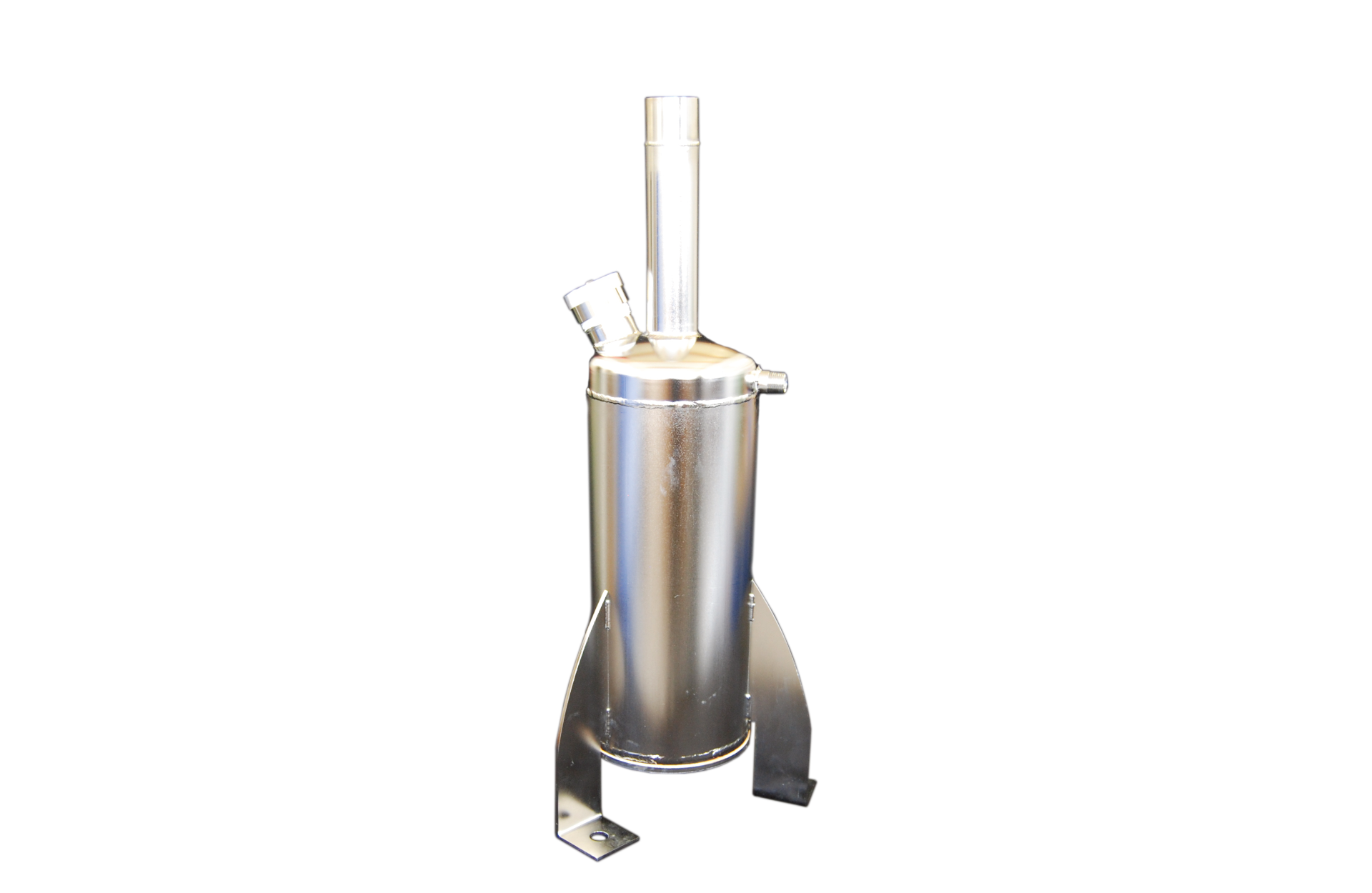

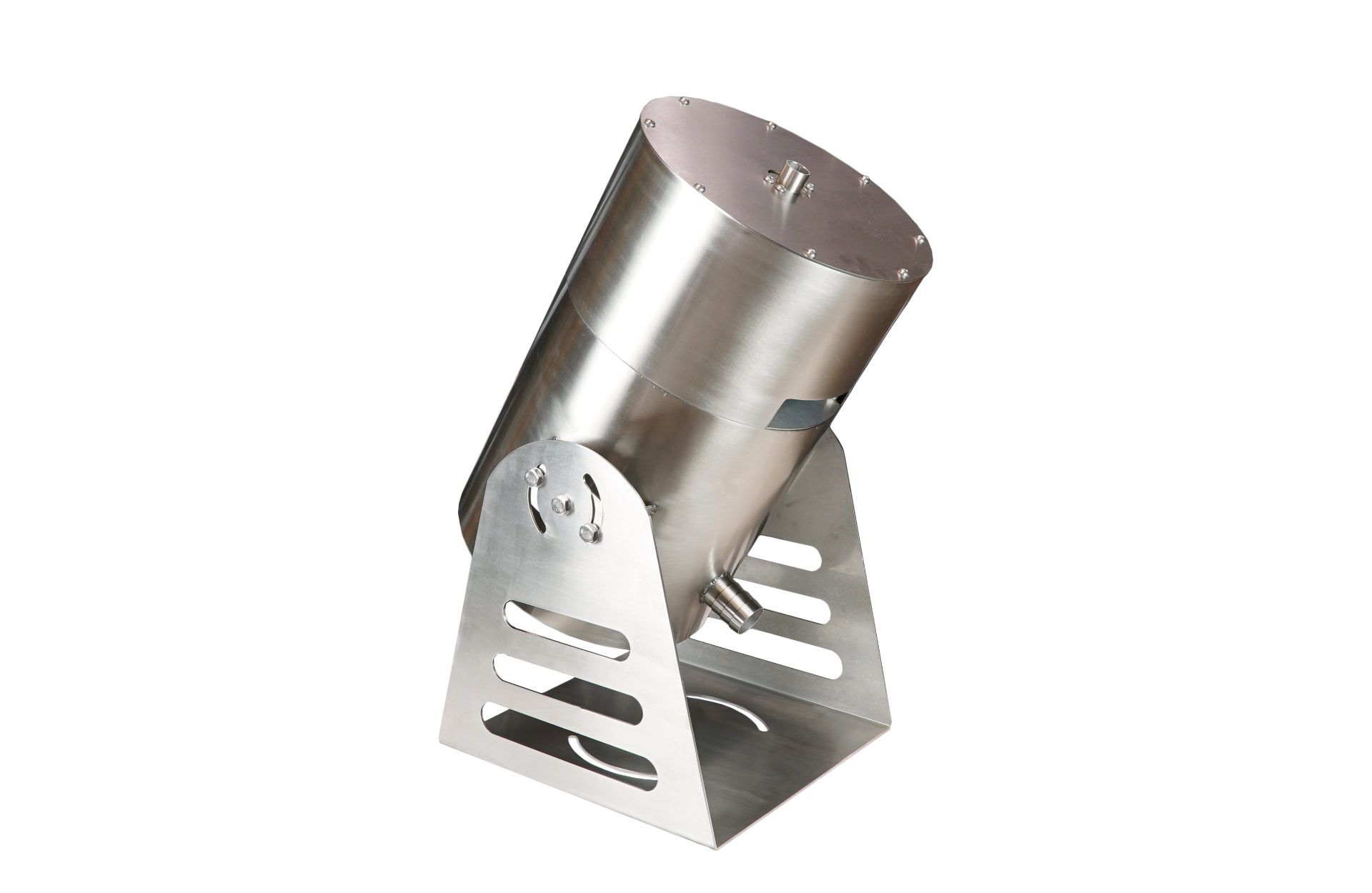

Neptune RocketShooter
The Neptune RocketShooter is a small, inexpensive and impressive effect shooter which creates unique water columns with a height of up to 15m at 4 bar. It`s made entirely of stainless steel with a water volume of only 10 liters. Every Shooter has his own water tank. Up to four shoots per minute are possible because of the short filling time of the tanks and a powerful compressor.
Via the illumination with LED IP68 lights in the appropriate colors, the impression of an imposing flame column arises.

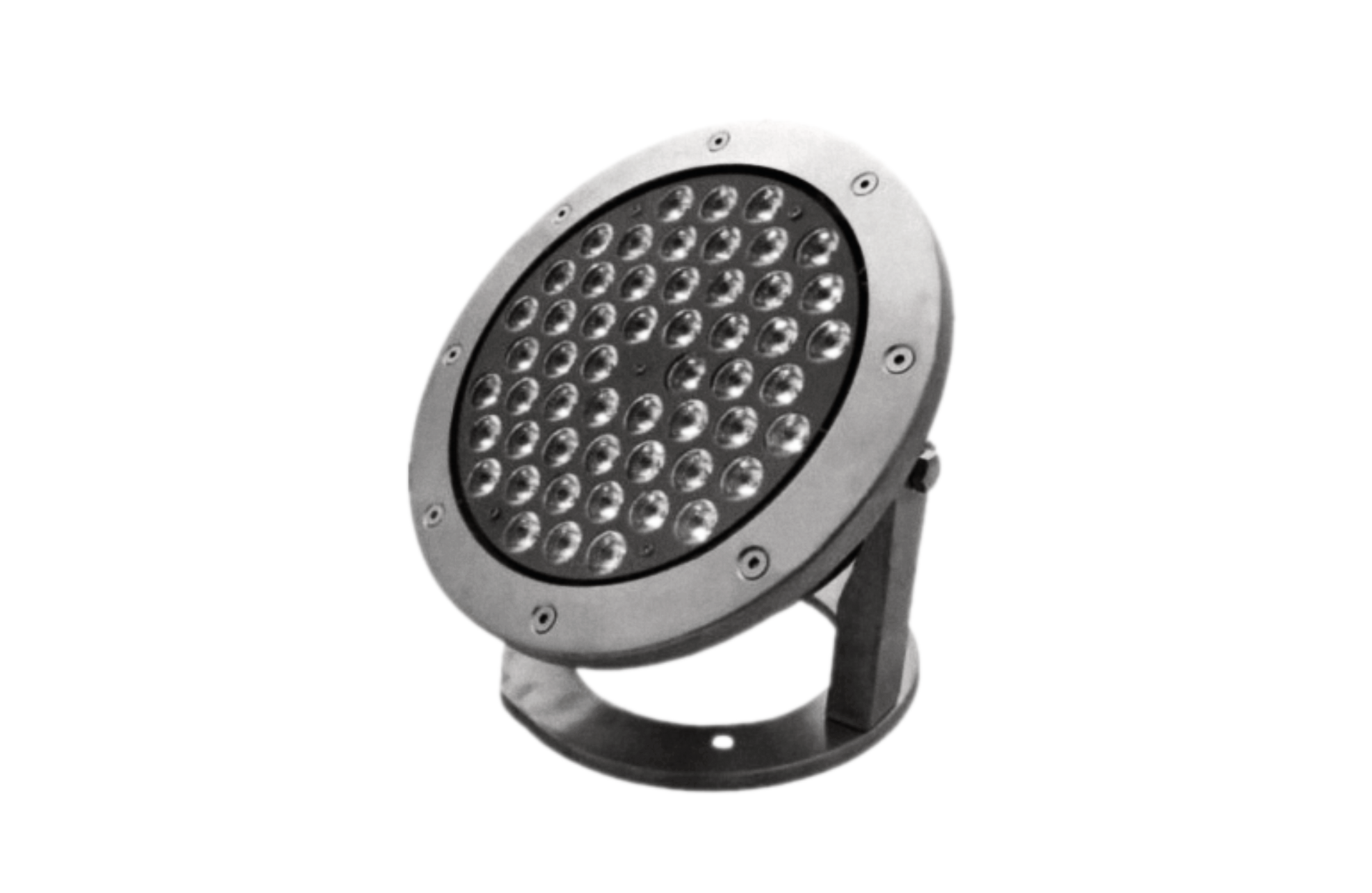

Neptune rgbw led
For making water shows even more spectacular. The Neptune RGBW LED provides more than 4 million colors and allows the water jets to shine in a new light.
With 54 High Power LEDs made by Cree, 180 Watt Led power and 14.820 lm light output, the water shows can be redefined. With 50.000 hours LED lifetime with up to 90% less power consumption, a long-term reliable use is guaranteed.
The housing is made of pure, heavy-duty Stainless Steel to withstand the harshest conditions.
It is designed to protect the light source from corrosion, aggressive water and impacts, requiring min. maintenance.
The exceptional waterproofing offers IP68 protection degree for up to 2m / 6ft water depth.
