HB-LASER
WHO WE ARE
HB-Laser’s operational areas and services focus not only on its headquarters in Germany but extend to locations all around the world.
At the location in Schwaebisch Gmuend the departments for development, production, project planning, designing, training as well as the creative department are housed. On site our teams take care of implementation and realization of projects. Sometimes the operational areas couldn’t be more different: whether indoors or outdoors, in areas with extreme (weather) conditions, on buildings, underwater, or in underground tunnels – HB-Laser has many years of experience and competent, highly qualified staff to implement projects so that customer’s expectations are exceeded.
In addition to the project implementation, technical modifications, maintenance and service on site are also parts of the service spectrum of HB-Laser.
our customized
light cube series
LightCube 850 MKII IP68
Professional 3.0
850 MKII IP68 Professional 3.0
- Output Power: Specified: 3.3 W / Typical 3.0 W
- Red: 0.72 W
- Green: 1.0 W
- Blue: 1.6 W
- Beam Specs: 0.8 mrad
- Beam Diameter: 3.0 mm
- Net Weight: 18.0 kg
- Laser Sorce: Pure Diode
- Op. modes: ILDA, LAN, SD, optional DMX
- Laser Class: 4
- Scanners: Eye-Magic EMS 8000 Digi
- Power Supply: 100 – 240V AC 50/60Hz
- Power cons.: < 450 W
- Dimensioning: 250 x 167 x 335 mm
- Dimensioning With Hanger: 294 x 267 x 335 mm
- Housing: black anodized 6 mm thick aluminium
- Degree Of Protection: IP68
- External Power-Box: 300 x 220 x 300 mm / 15.0 kg
LightCube 851 MKII IP68
Basic & Professional
851 MKII IP68 Basic 18.0
- Output Power: Specified: 20.45 W / Typical 18.0 W
- Red: 5.2 W
- Green: 6.25 W
- Blue: 9.0 W
- Beam Specs: ~1.1 mrad
- Beam Diameter: 7 x 7 mm
- Net Weight: 28.0 kg
- Laser Sorce: Pure Diode
- Op. modes: ILDA, LAN, SD, optional DMX
- Laser Class: 4
- Scanners: Eye-Magic EMS 8000 Digi
- Power Supply: 100 – 240V AC 50/60Hz
- Power cons.: < 650 W
- Dimensioning: 345 x 182 x 435 mm
- Dimensioning With Hanger: 394 x 327 x 435 mm
- Housing: massive aluminium
- Degree Of Protection: IP68
- External Power-Box: 300 x 220 x 300 mm / 15.0 kg
851 MKII IP68 Professional 5.0
- Output Power: Specified: 5.92 W / Typical 5.0 W
- Red: 0.72 W
- Green: 2.0 W
- Blue: 3.2 W
- Beam Specs: <1 mrad
- Beam Diameter: 3.0 mm
- Net Weight: 28.0 kg
- Laser Sorce: Pure Diode
- Op. modes: ILDA, LAN, SD, optional DMX
- Laser Class: 4
- Scanners: Eye-Magic EMS 8000 Digi
- Power Supply: 100 – 240V AC 50/60Hz
- Power cons.: < 700 W
- Dimensioning: 345 x 182 x 435 mm
- Dimensioning With Hanger: 394 x 327 x 435 mm
- Housing: massive aluminium
- Degree Of Protection: IP68
- External Power-Box: 300 x 220 x 300 mm / 15.0 kg
LightCube 860 MKII
Basic & Professional
860 MKII Basic 5.5
- Output Power: Specified: 6.0 W / Typical 5.5 W
- Red: 1.8 W
- Green: 1.1 W
- Blue: 3.1 W
- Beam Specs: 1.1 mrad
- Beam Diameter: 2.5 x 5 mm
- Net Weight: 14.5 kg
- Laser Sorce: Pure Diode
- Op. modes: ILDA, LAN, SD, optional DMX
- Laser Class: 4
- Scanners: Eye-Magic EMS 8000 Digi
- Power Supply: 100 – 240V AC 50/60Hz
- Power cons.: < 400 W
- Dimensioning: 331 x 196 x 261 mm
- Dimensioning With Hanger: 375 x 290 x 261 mm
- Housing: Aluminium
860 MKII Professional 3.0
- Output Power: Specified: 3.32 W / Typical 3.0 W
- Red: 0.72 W
- Green: 1.0 W
- Blue: 1.6 W
- Beam Specs: 0.8 mrad
- Beam Diameter: 3.0 mm
- Net Weight: 14.5 kg
- Laser Sorce: Pure Diode
- Op. modes: ILDA, LAN, SD, optional DMX
- Laser Class: 4
- Scanners: Eye-Magic EMS 8000 Digi
- Power Supply: 100 – 240V AC 50/60Hz
- Power cons.: < 400 W
- Dimensioning: 331 x 196 x 261 mm
- Dimensioning With Hanger: 375 x 290 x 261 mm
- Housing: Aluminium
860 MKII Professional 5.0
- Output Power: Specified: 5.92 W / Typical 5.0 W
- Red: 0.72 W
- Green: 2.0 W
- Blue: 3.2 W
- Beam Specs: 0.8 mrad
- Beam Diameter: 3.0 mm
- Net Weight: 14.5 kg
- Laser Sorce: Pure Diode
- Op. modes: ILDA, LAN, SD, optional DMX
- Laser Class: 4
- Scanners: Eye-Magic EMS 8000 Digi
- Power Supply: 100 – 240V AC 50/60Hz
- Power cons.: < 400 W
- Dimensioning: 331 x 196 x 261 mm
- Dimensioning With Hanger: 375 x 290 x 261 mm
- Housing: Aluminium

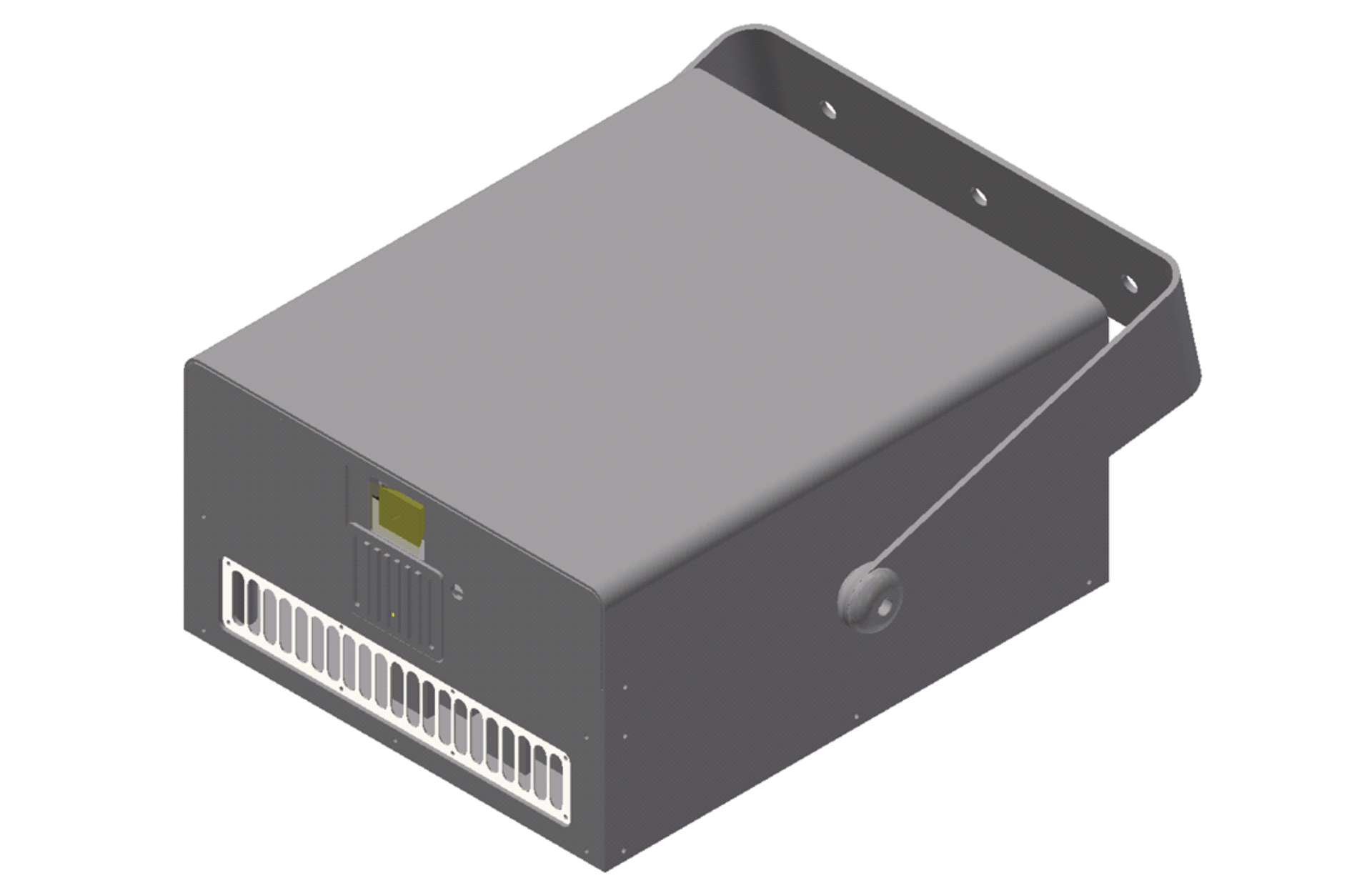

LightCube 861 MKII
Basic & Professional
861 MKII Basic 9.0
- Output Power: Specified: 10.85 W / Typical 9.0 W
- Red: 2.6 W
- Green: 3.75 W
- Blue: 4.5 W
- Beam Specs: ~1.1 mrad
- Beam Diameter: 3.5 x 6.5 mm
- Net Weight: 17.0 kg
- Laser Sorce: Pure Diode
- Op. modes: ILDA, LAN, SD, optional DMX
- Laser Class: 4
- Scanners: Eye-Magic EMS 8000 Digi
- Power Supply: 100 – 240V AC 50/60Hz
- Power cons.: < 400 W
- Dimensioning: 331 x 196 x 396 mm
- Dimensioning With Hanger: 375 x 366 x 396 mm
- Housing: Aluminium
861 MKII Professional 8.0
- Output Power: Specified: 9.24 W / Typical 8.0 W
- Red: 1.44 W
- Green: 3.0 W
- Blue: 4.8 W
- Beam Specs: ~0.8 mrad
- Beam Diameter: 3 x 5 mm
- Net Weight: 17.0 kg
- Laser Sorce: Pure Diode
- Op. modes: ILDA, LAN, SD, optional DMX
- Laser Class: 4
- Scanners: Eye-Magic EMS 8000 Digi
- Power Supply: 100 – 240V AC 50/60Hz
- Power cons.: < 400 W
- Dimensioning: 331 x 196 x 396 mm
- Dimensioning With Hanger: 375 x 366 x 396 mm
- Housing: Aluminium
Laser Accessories

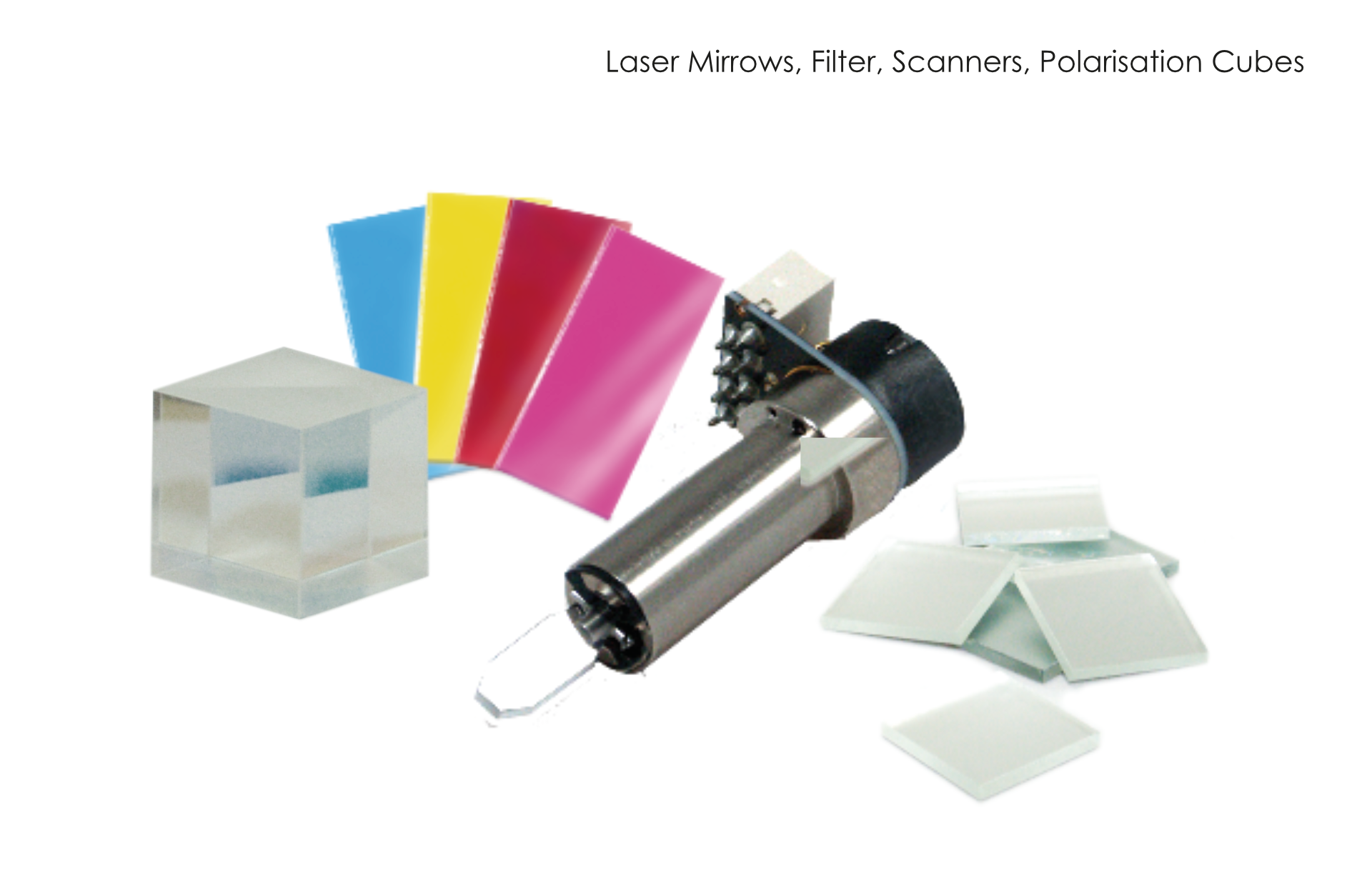

OEM Products & Weather Protection
Laser
Accessories

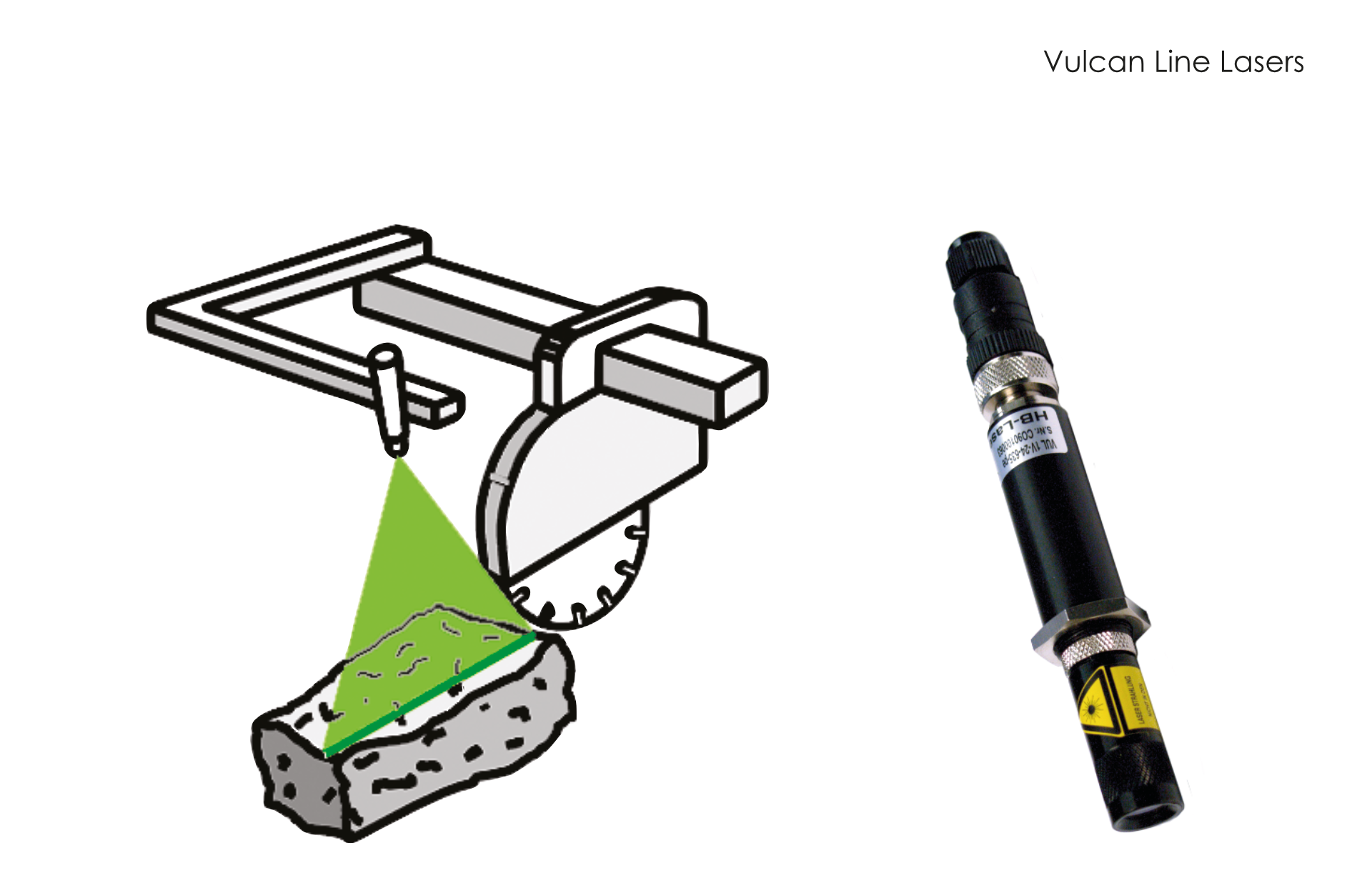

Vulcan Industrial Lasers
HB-Laser offers a huge variety of industrial laser systems including accessories. All components are available as single pieces. OEM products and custom specific developments are available on request.
POSSIBLE PROCESSINGS OF:
- Textile & Leather positioning
- Wood
- Stone, Glass & Ceramics
- Rubber, Tyres & Plastics
- Metal
- Paper
- Aircraft, Vehicle & Mould Constructions
- Labeling
- Measurement image processing
- Medicine technology

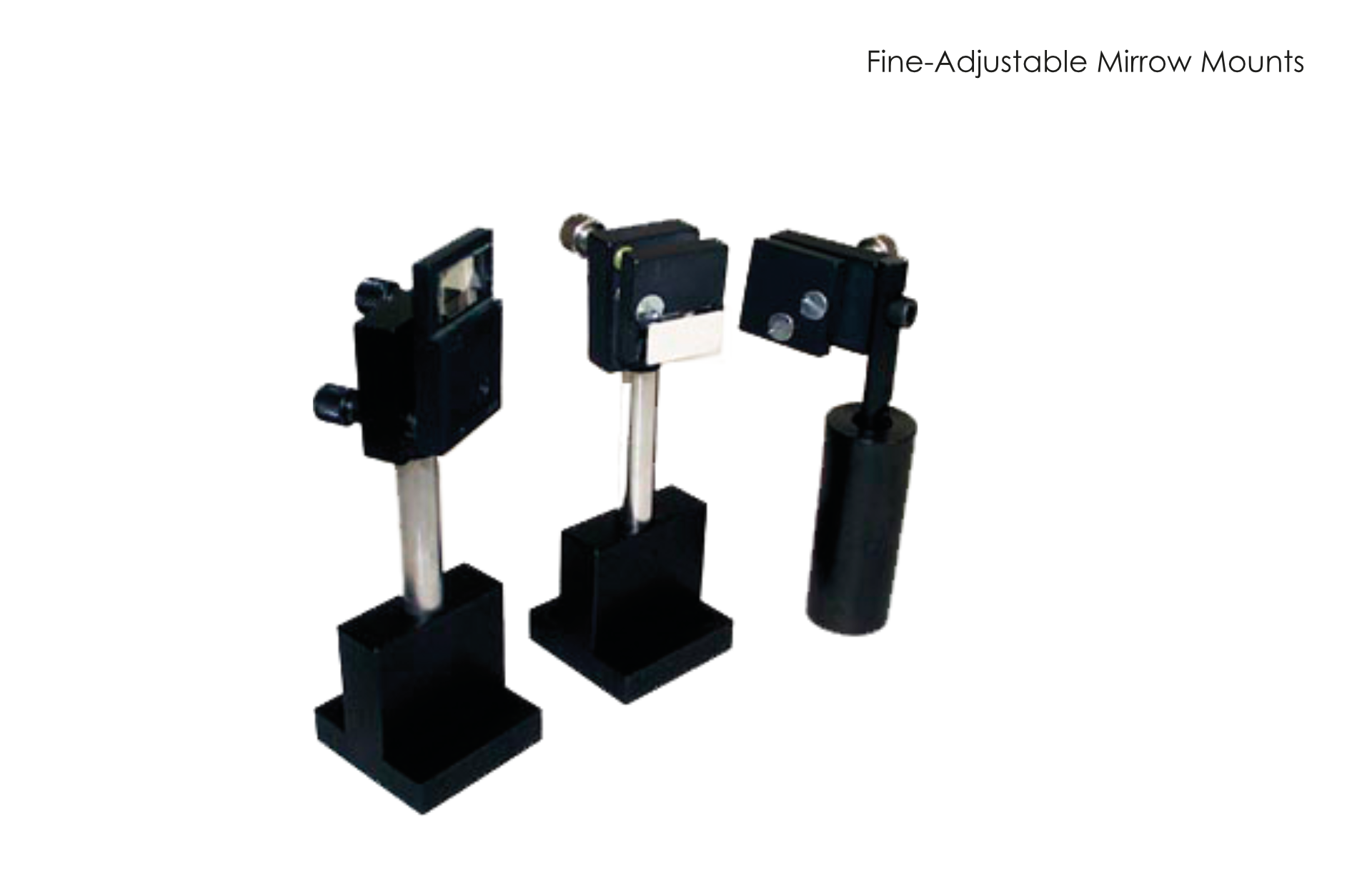

OPTOMECHANICS

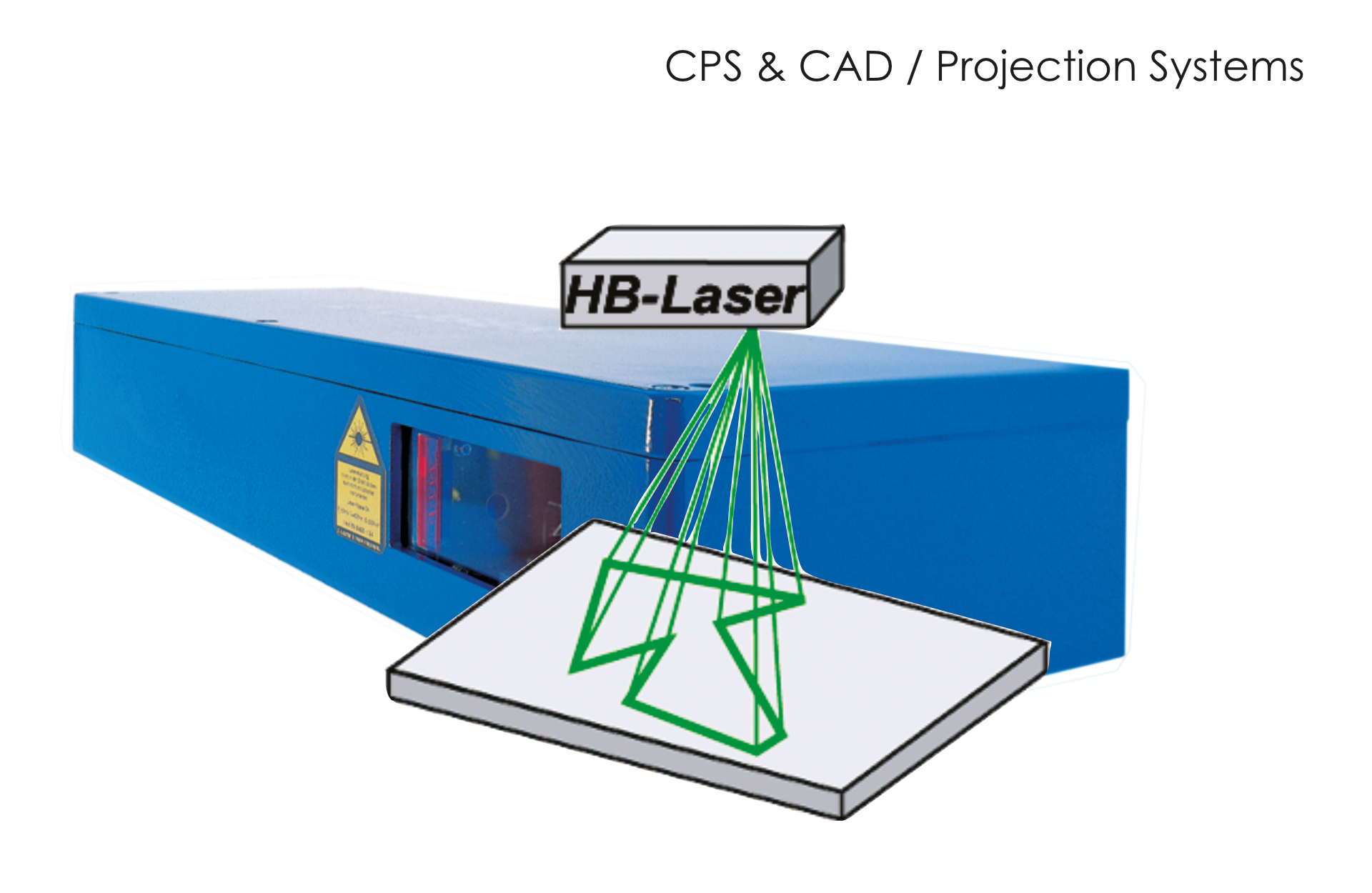

The HB-Laser team of engineers, with years of experience, develops CAD supported optical and mechanical systems. Factoring in the in-house CNC production, this is an assurance of highest precision and sturdiness. Regardless of which HB-Lasers’ standard products, a customized components assembly or units made to customers specification – quality and life span rank first. In-house tool design and construction make quick and low-cost solutions possible even for the most eccentric special design.

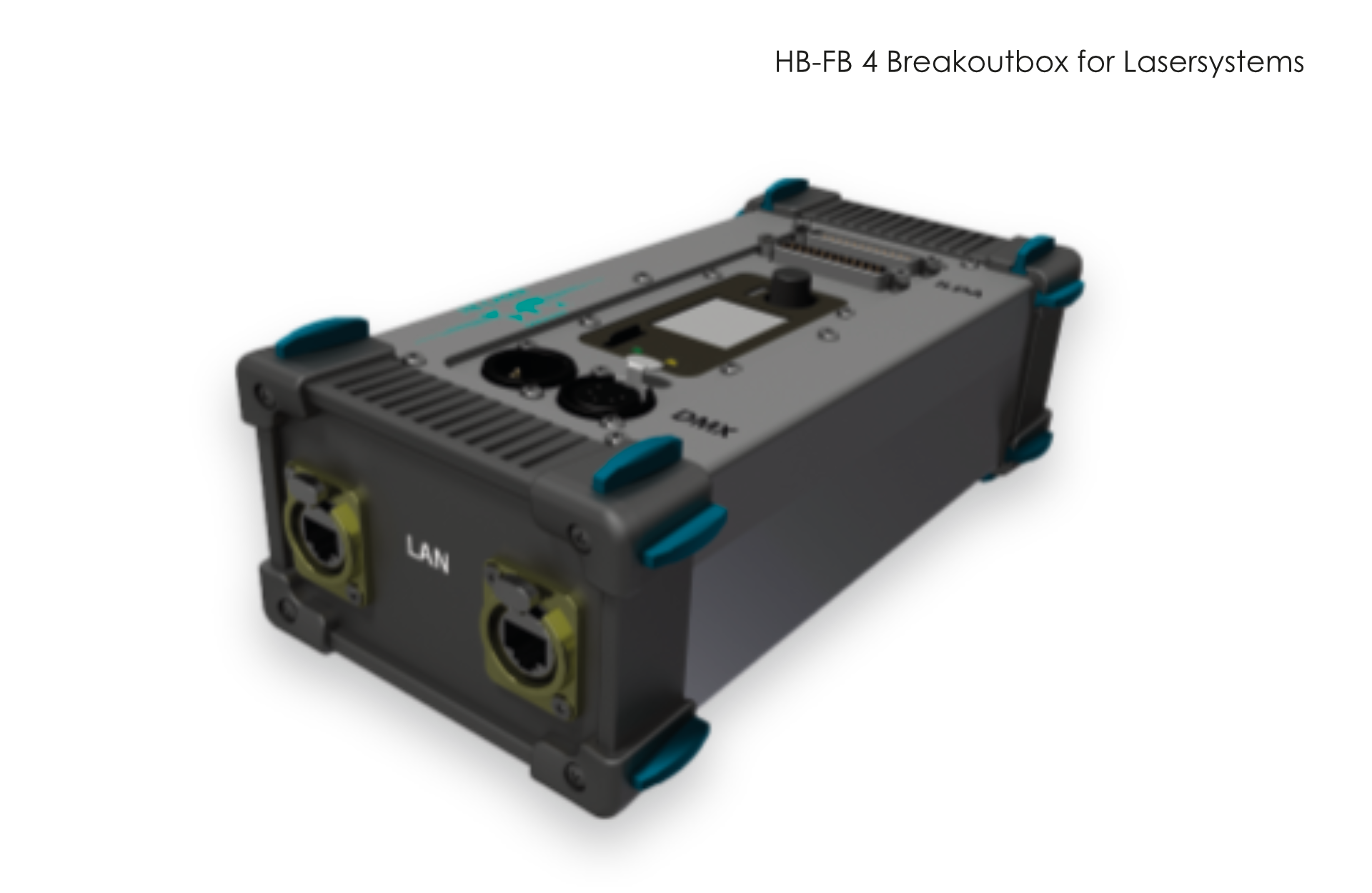

HB-FB-4 BreakOutBox for Lasersystems
is a network interface that is available with Pangolin Quickshow or Pangolin BEYOND. With the HB-FB-4 BreakOutBox, it is no longer necessary to connect the computer to the show laser via an ILDA interface. Control is done via network with Quickshow or BEYOND, by DMX or in stand-alone mode.
FEATURES OF THE HB-FB-4 BREAKOUTBOX:
- Control via Ethernet cable with integrated GB-Switch for looping through signal can be used with any ILDA-compliant show laser system
- Automatic mode via SD card,standalone operation with time switch
- Color display
- DMX control
- Supports scan speeds up to 120kpps
- 6 – color channel support
- Improved laser output by interpolation
- Dual ILDA out
- Project settings
- Network settings
- Color settings
- Image corrections
- Security settings
OEM
PRODUCTS
Overview

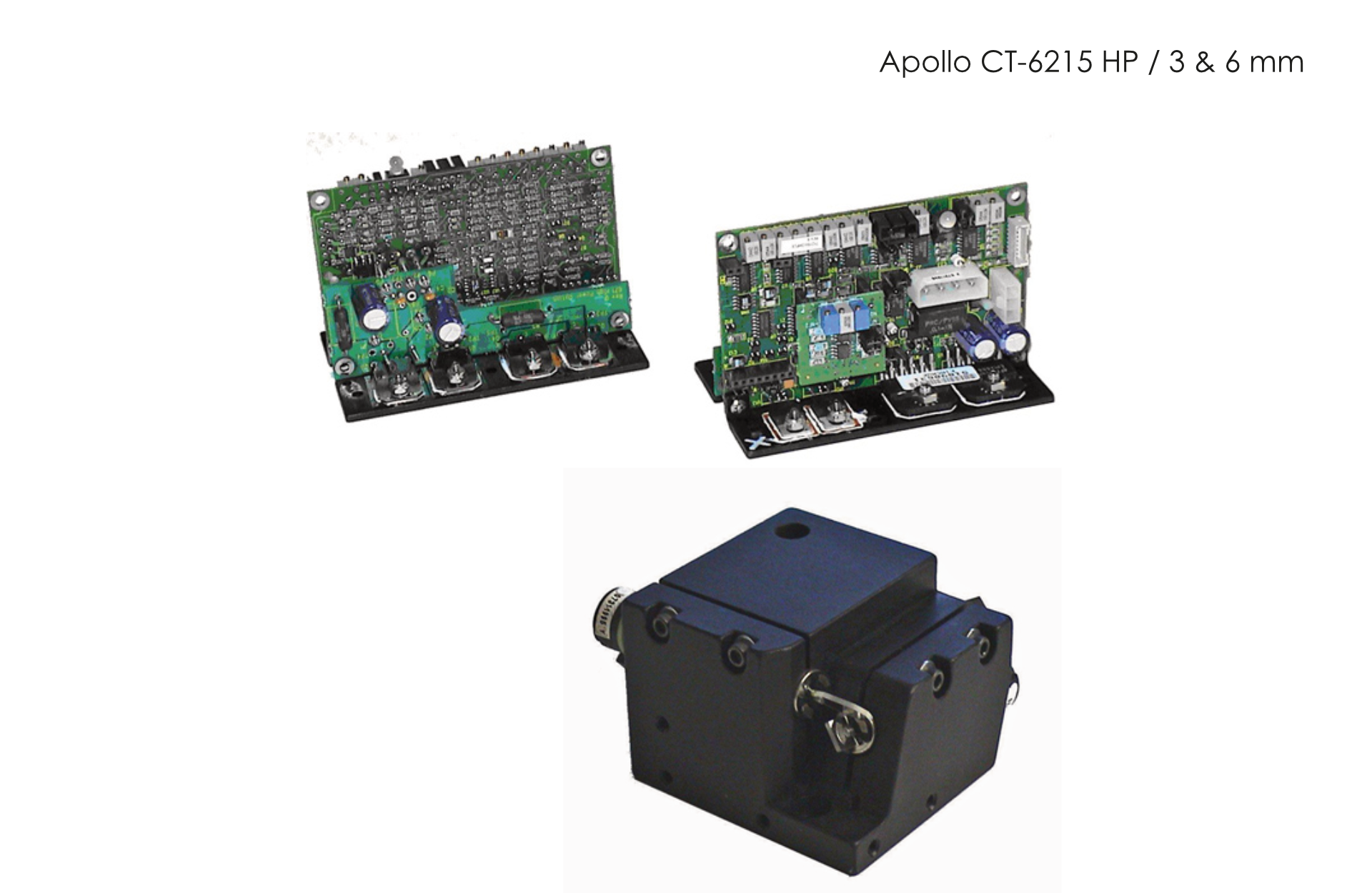

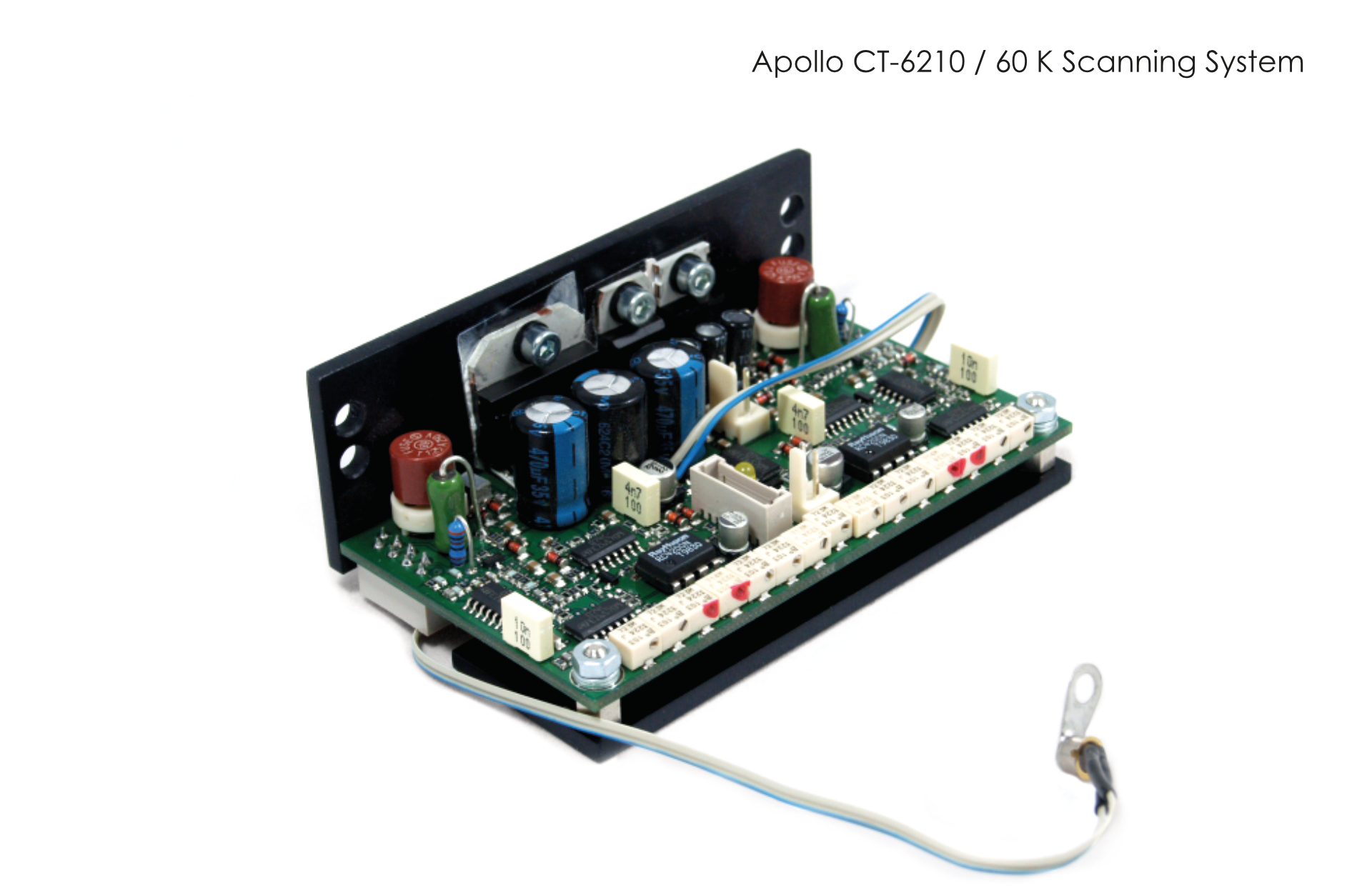

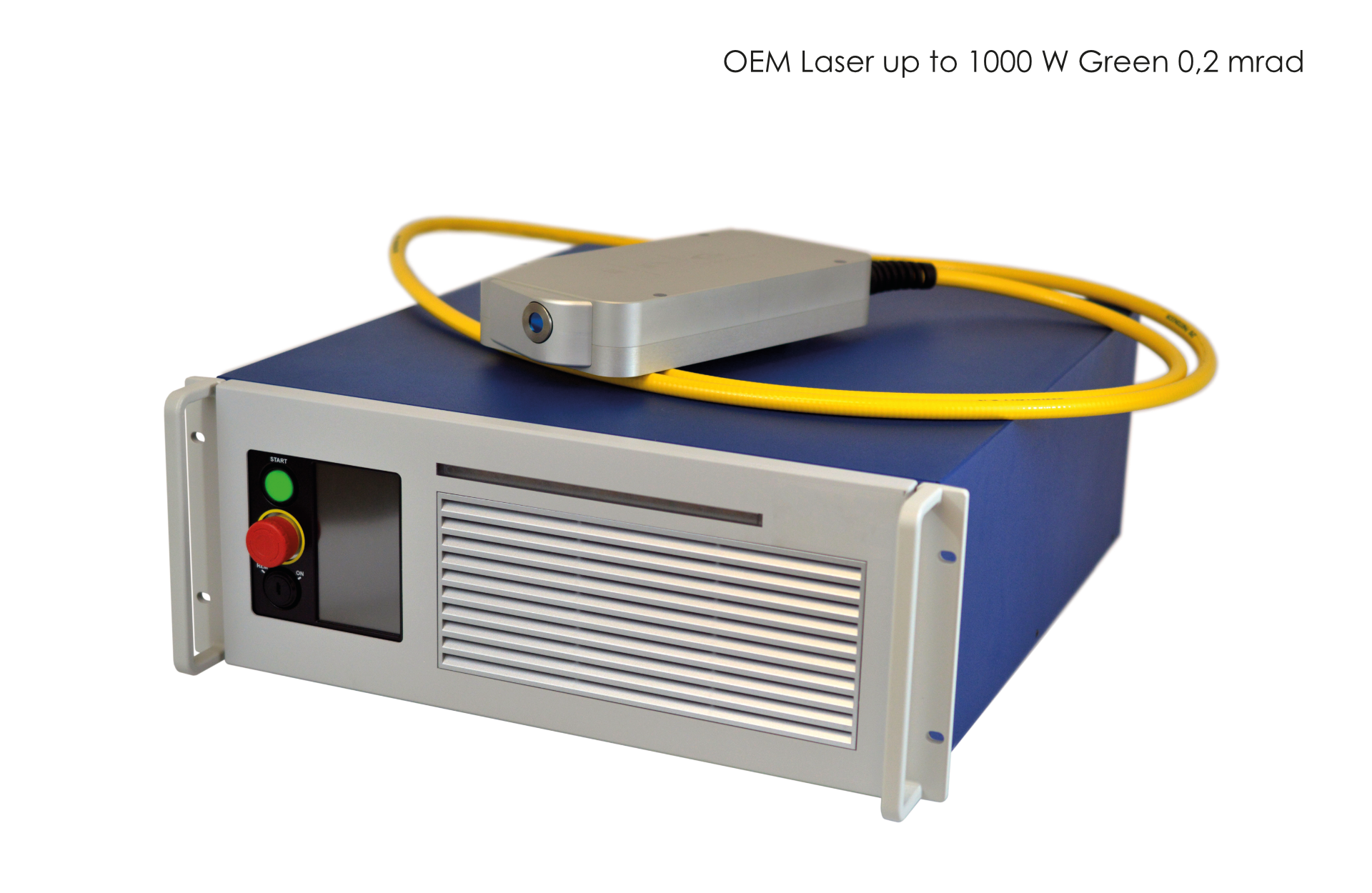

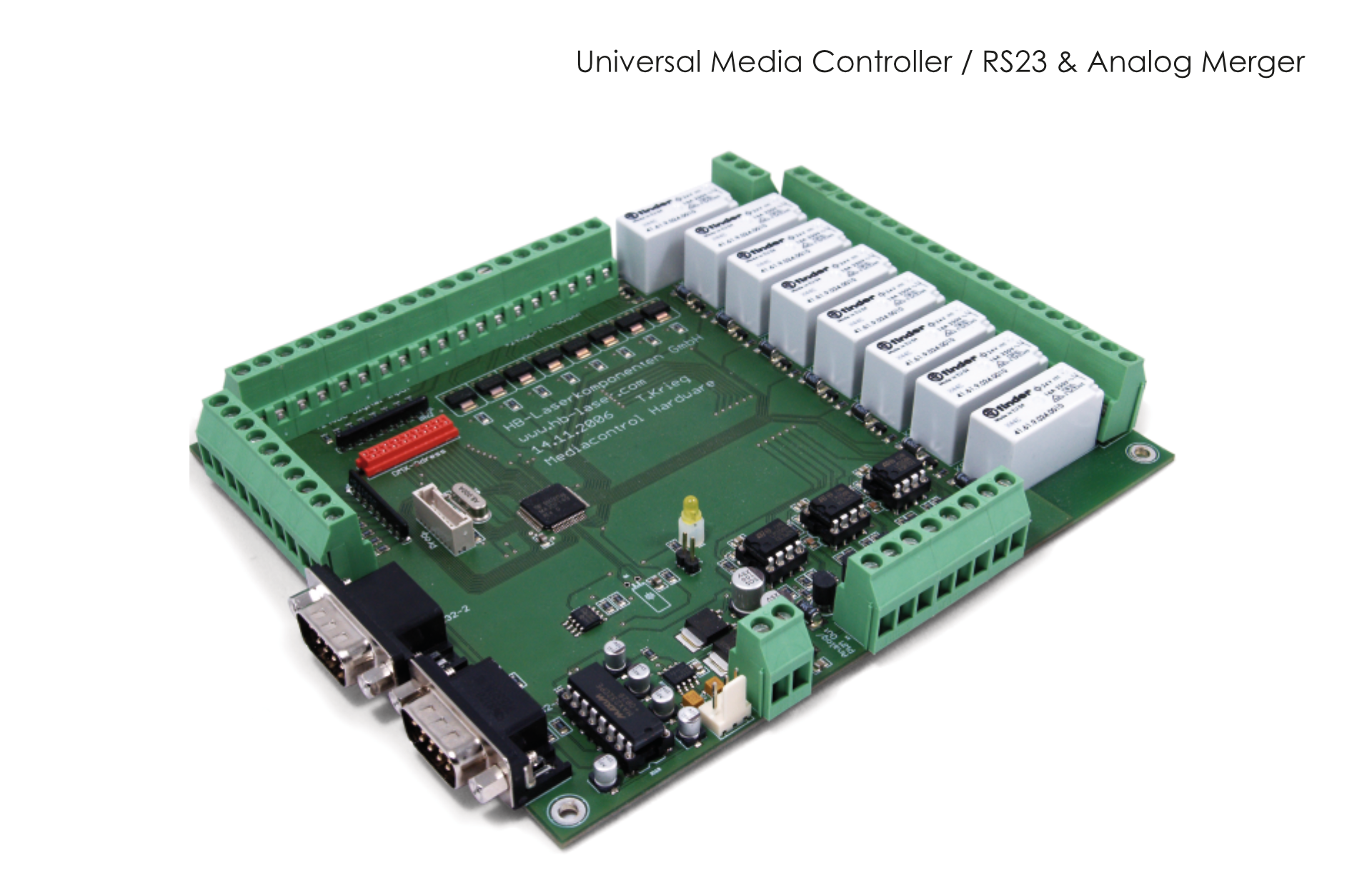

Analog and digital systems for measurement and control for high-speed and precision tools rank highly in HB-Laser’s development center.

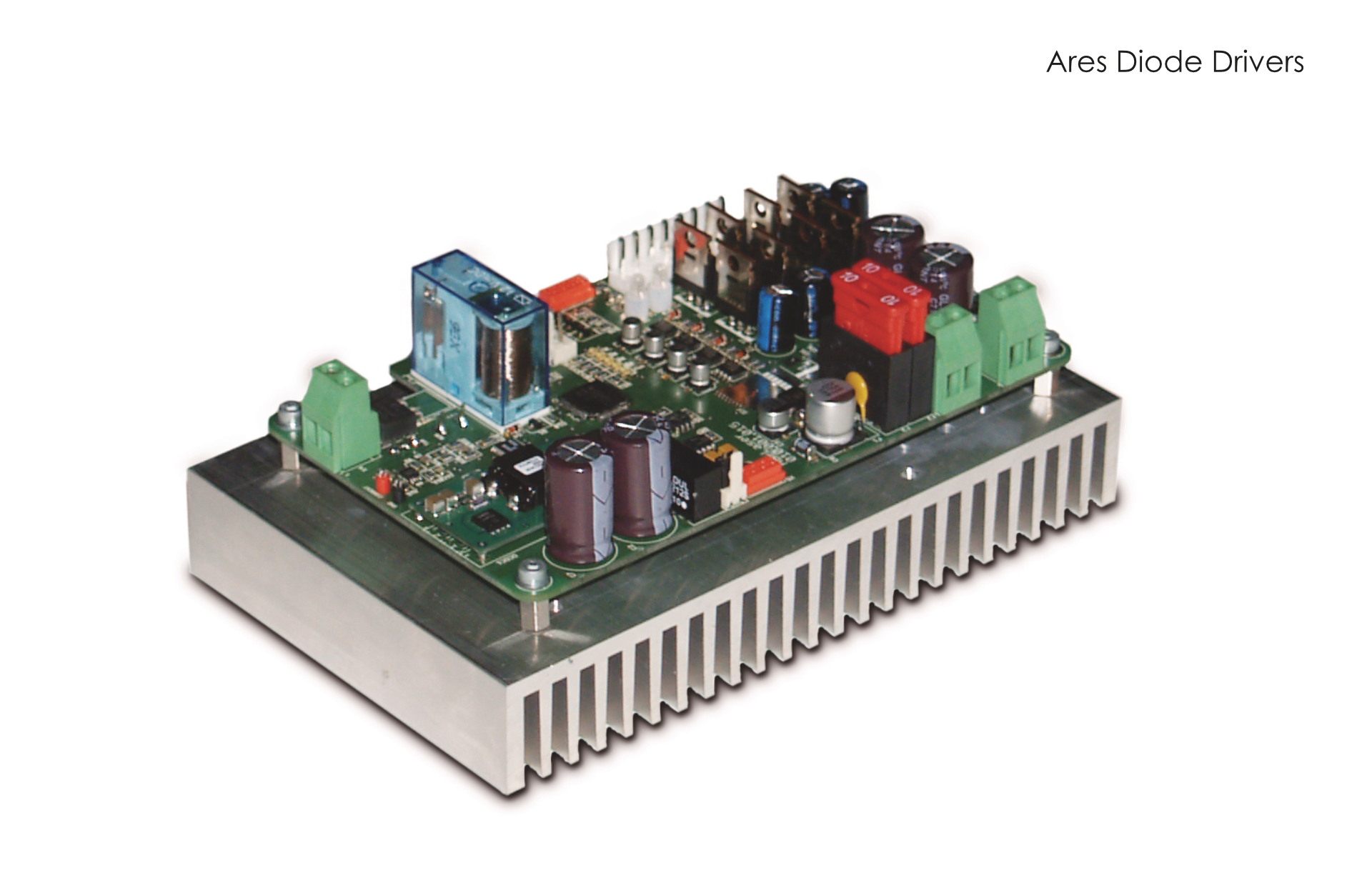

Whether customized diode driver units for medical engineering, scanning systems in the industrial sector or modules for multimedia and illumination.
HB-Laser’s development and production always meet highest expectations to the limit of what is technically possible.
The in-house production enables highest flexibility and reliability. All components are available as single pieces. OEM products and customerspecific developments are possible at any time.
Climate Housings
Weather protection

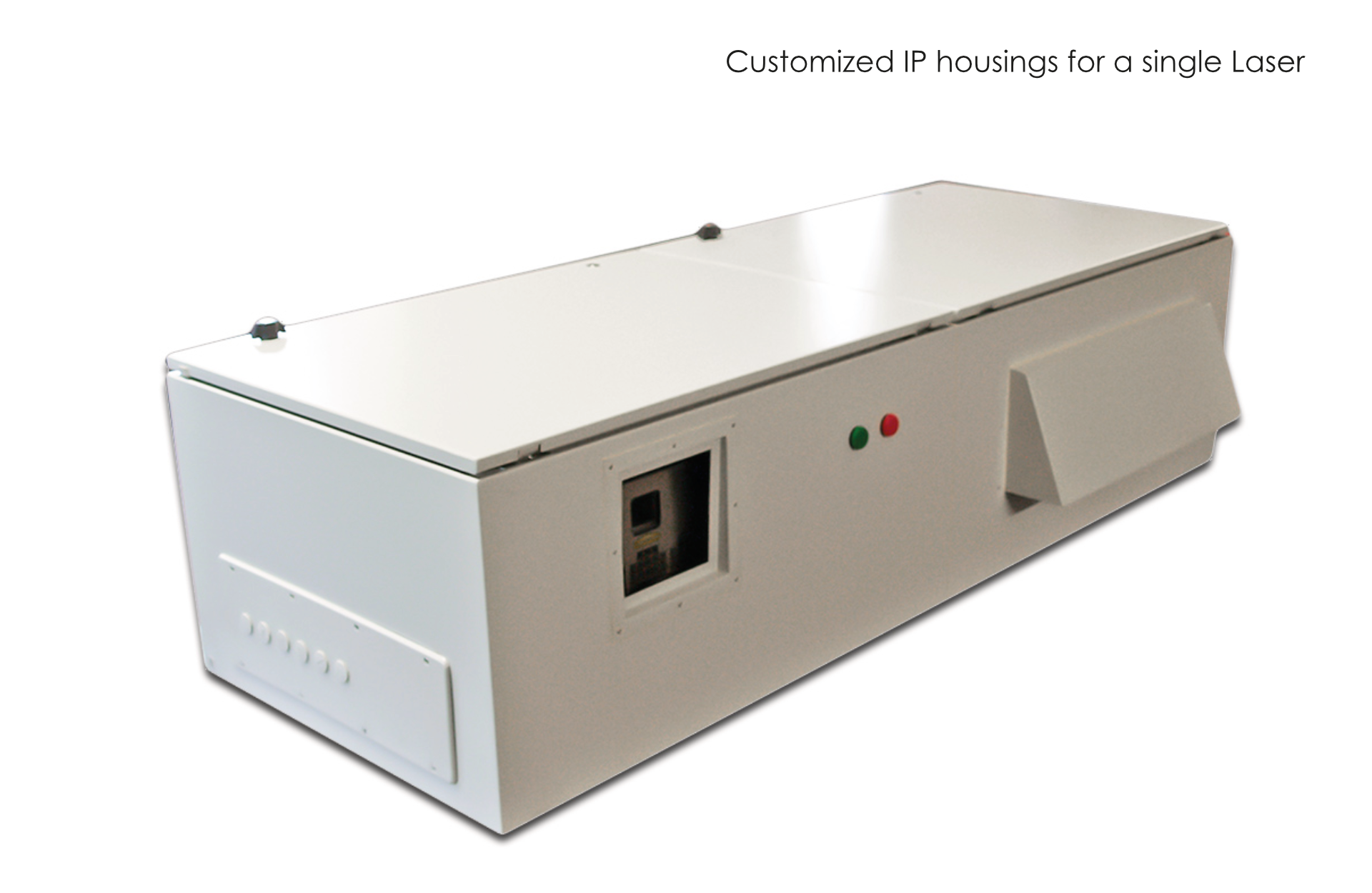

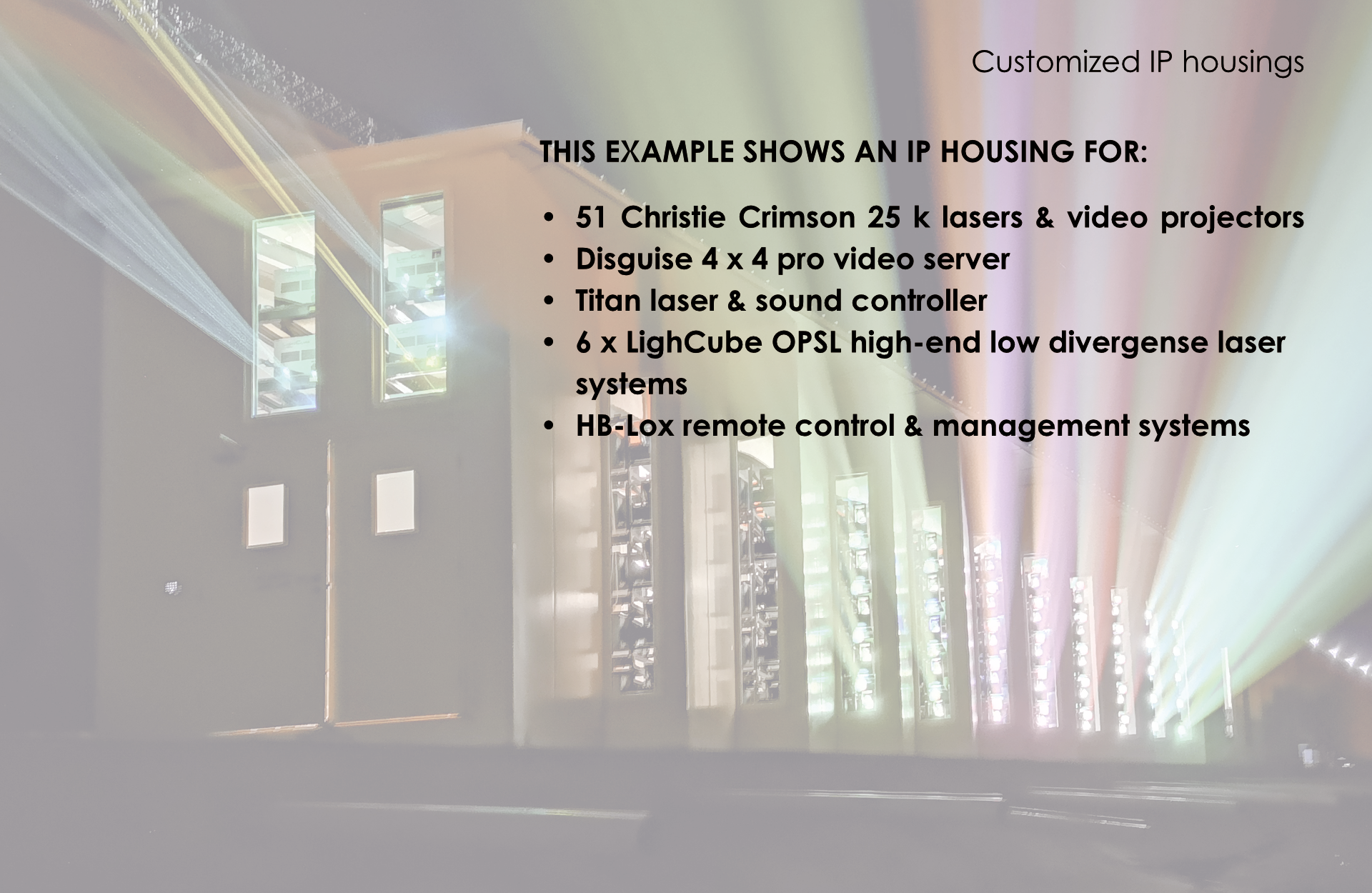

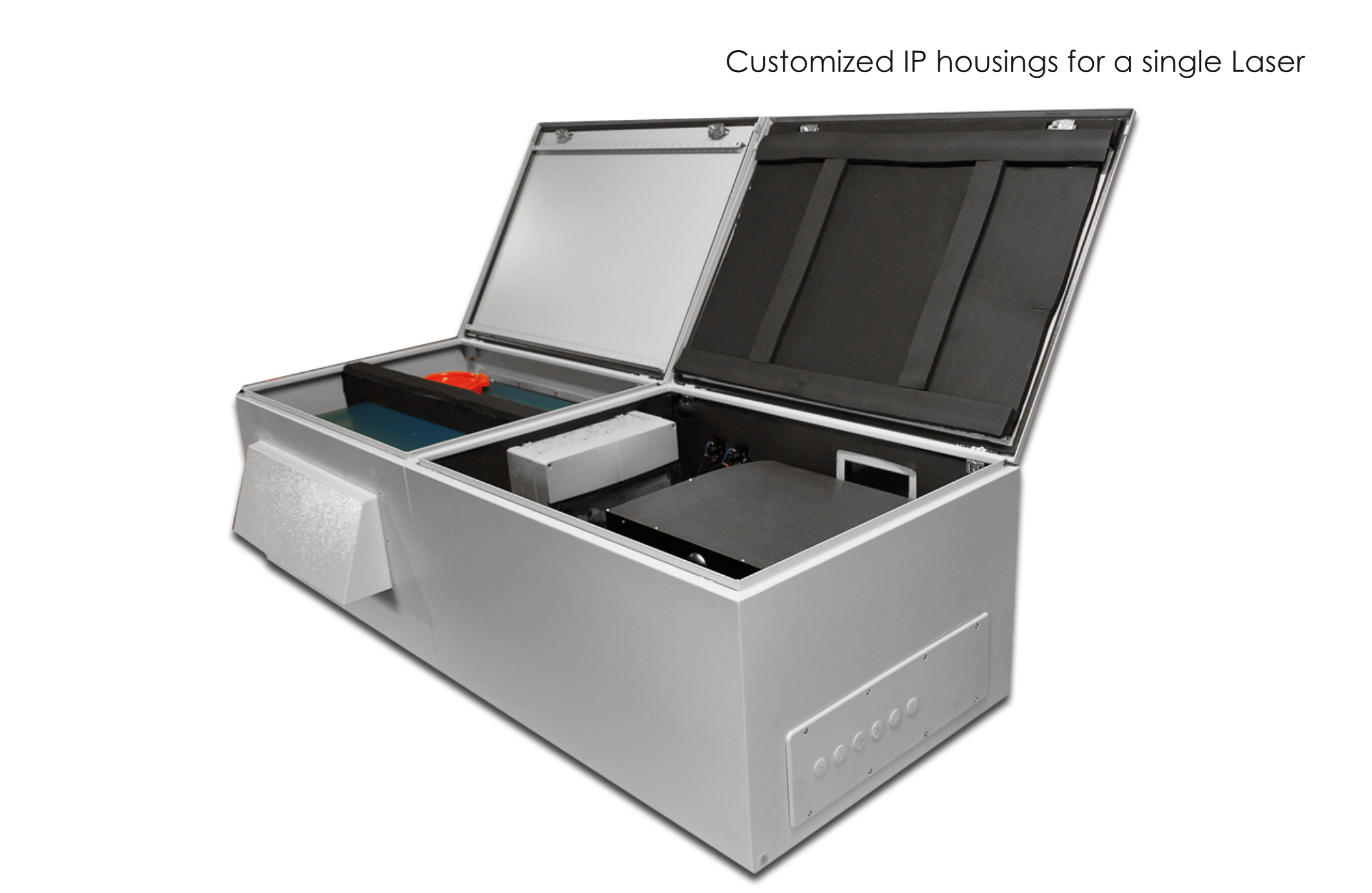

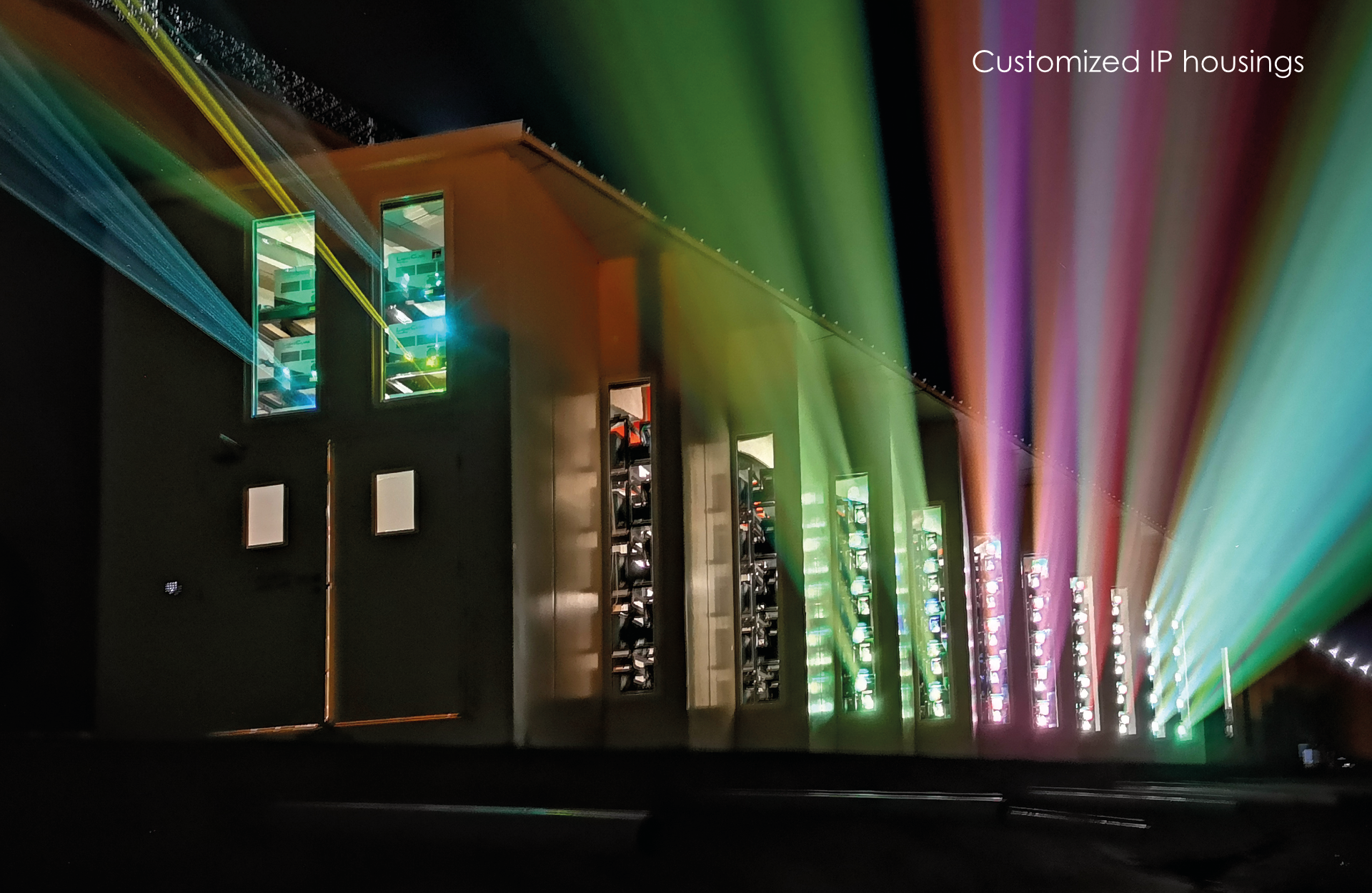

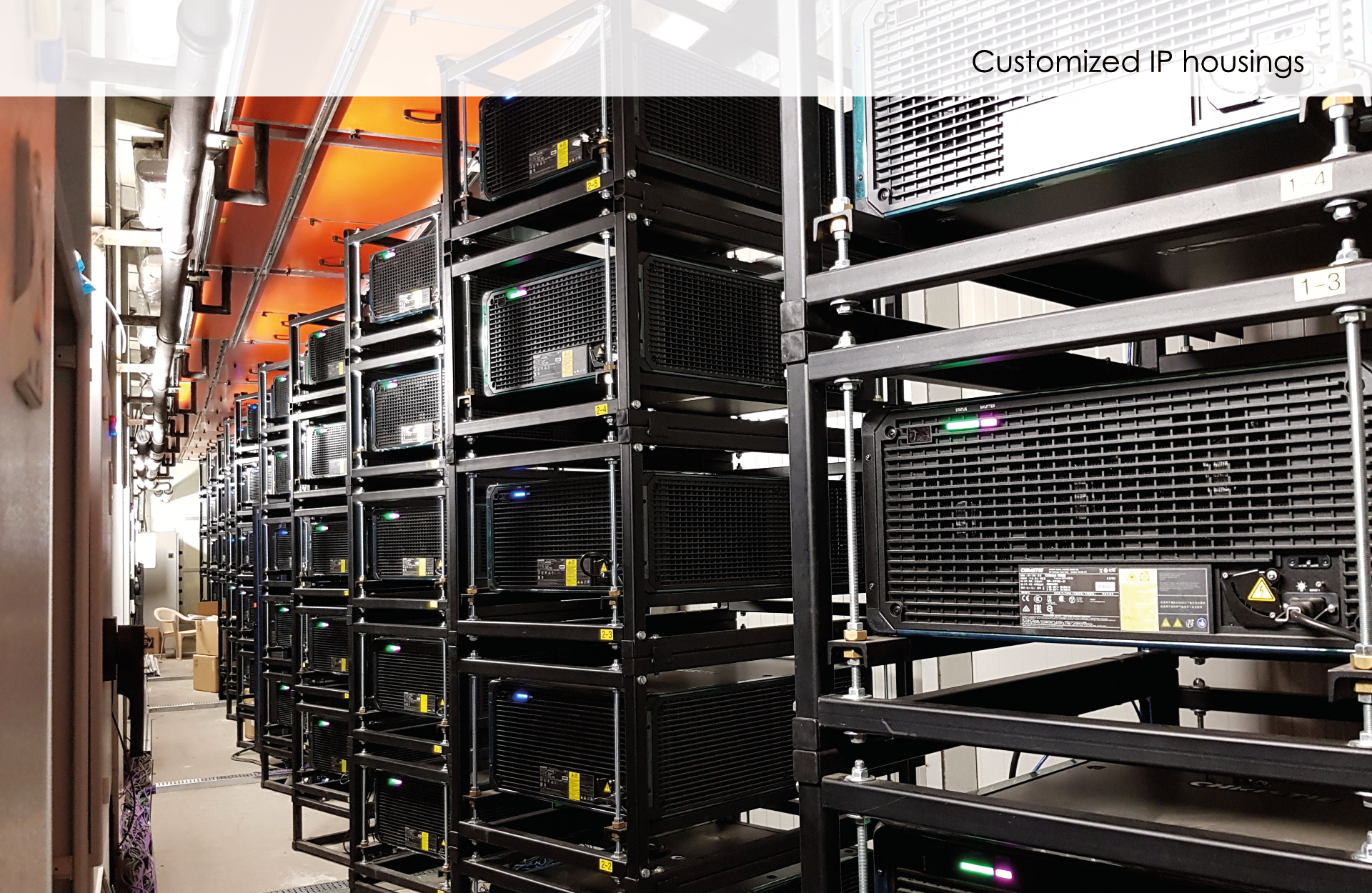

Customized IP Housings
HB-Laser offers customized solutions for every environment. Mostly the technology has to be integrated as invisible as possible into the project. Standard air conditioning units cannot offer this. Therefore HB-Laser develops and builds individual solutions according to customer requirements.
Due to our decades of experience we are able to realize condensation-free air conditioning housings even in the most confined spaces. From simple rain protection to IP68 housings for underwater use, aggressive environments in mines or extreme temperature ranges from -50°C to +60°C.
Our

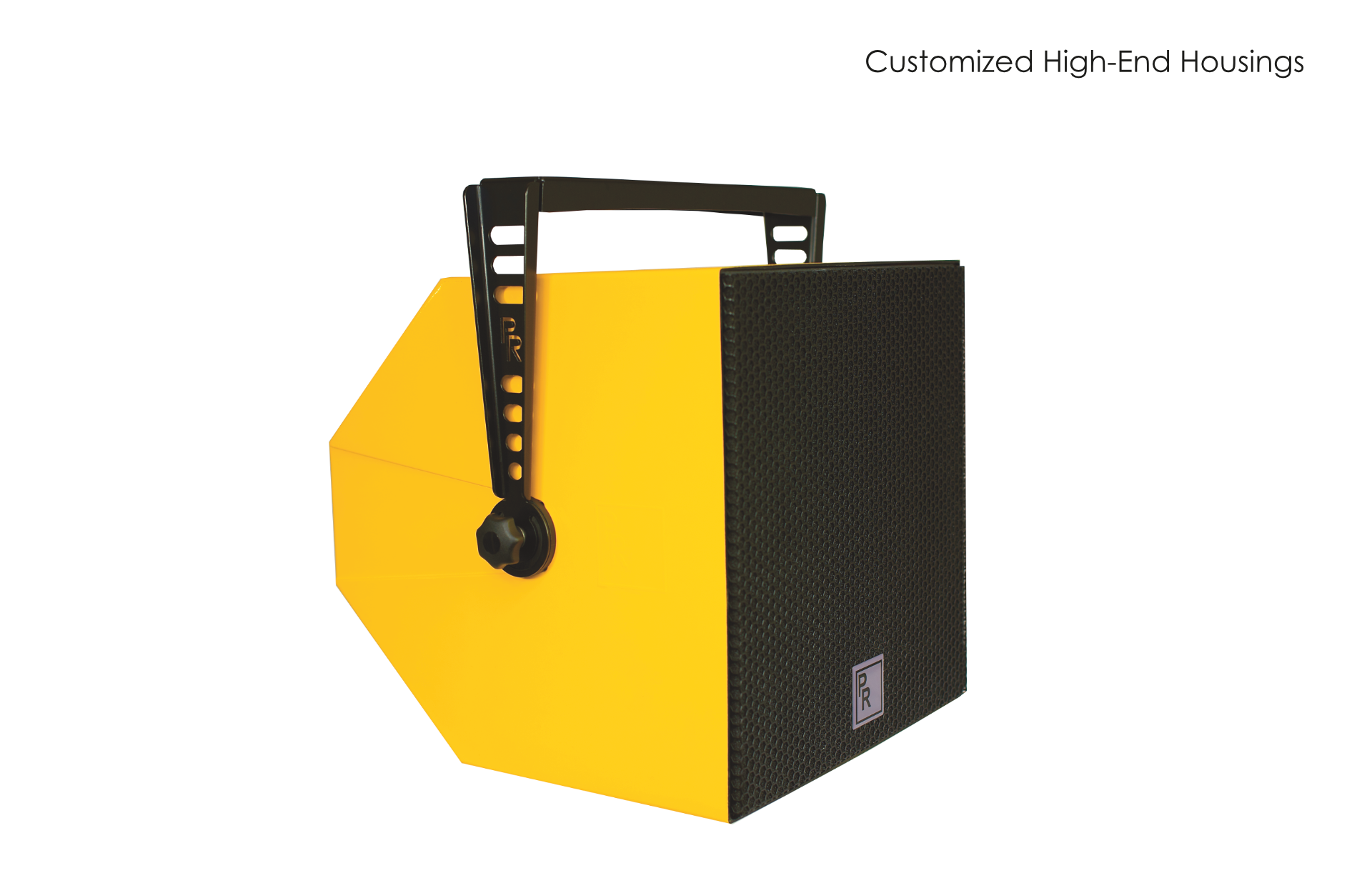

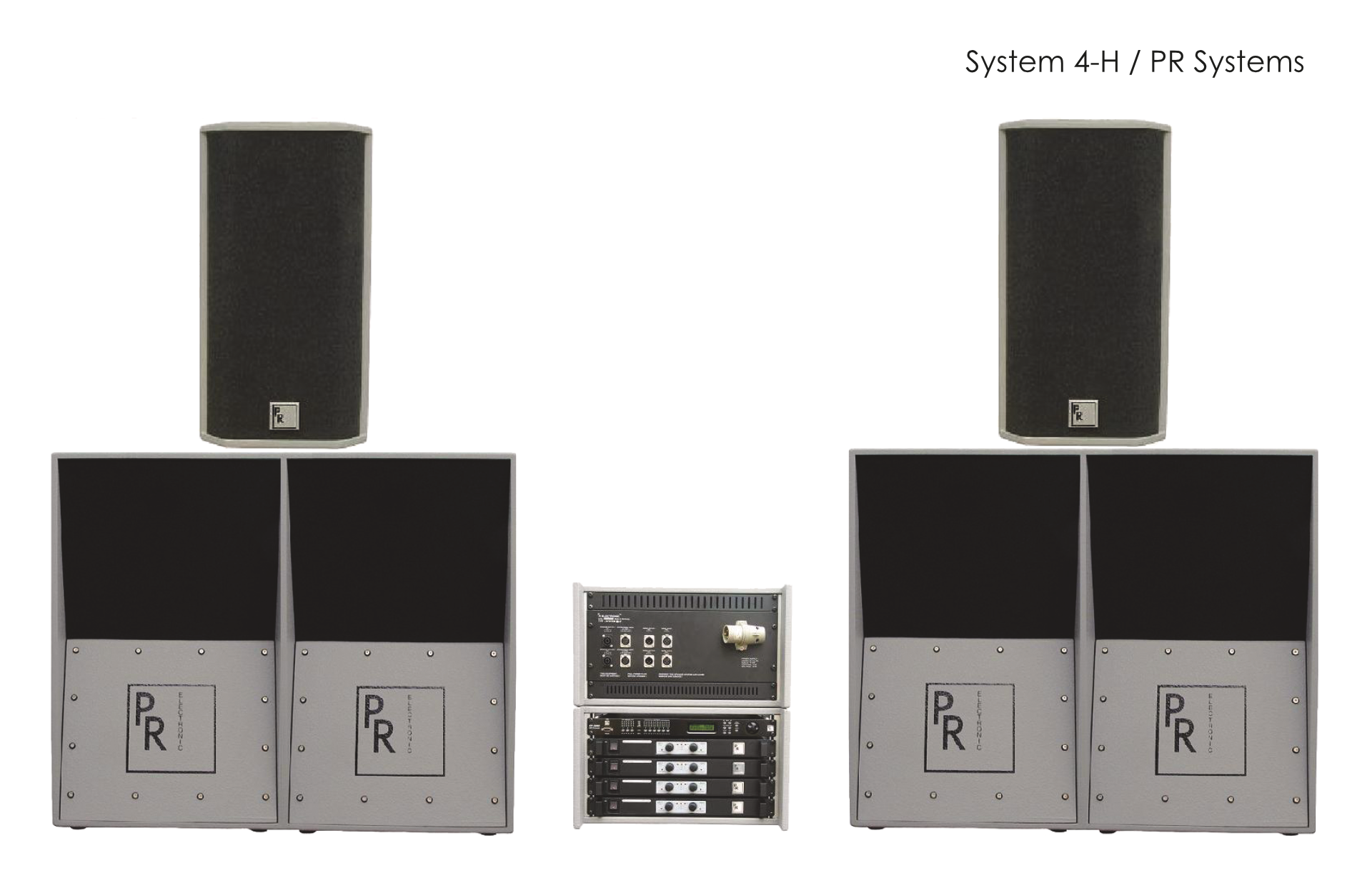

Sound systems
Customized
Solutions
PR Electronic
Due to our long-standing and close cooperation with the company PR Electronic, we are able to offer our customers customized sound systems that meet their individual needs and desires and can be optimally integrated into any project.
PR Electronic has one of the most rigorous quality standards for developing and producing speaker systems. Together with the most advanced technology PR electronic speaker systems meets the high demands for one of the best products to reproduce any kind of sounds in best sound quality.
PR electronic is manufacturer of advanced speaker systems with the aim to use only the best components, materials and latest construction methods to reach „simply“ reinforcing the original sounds.

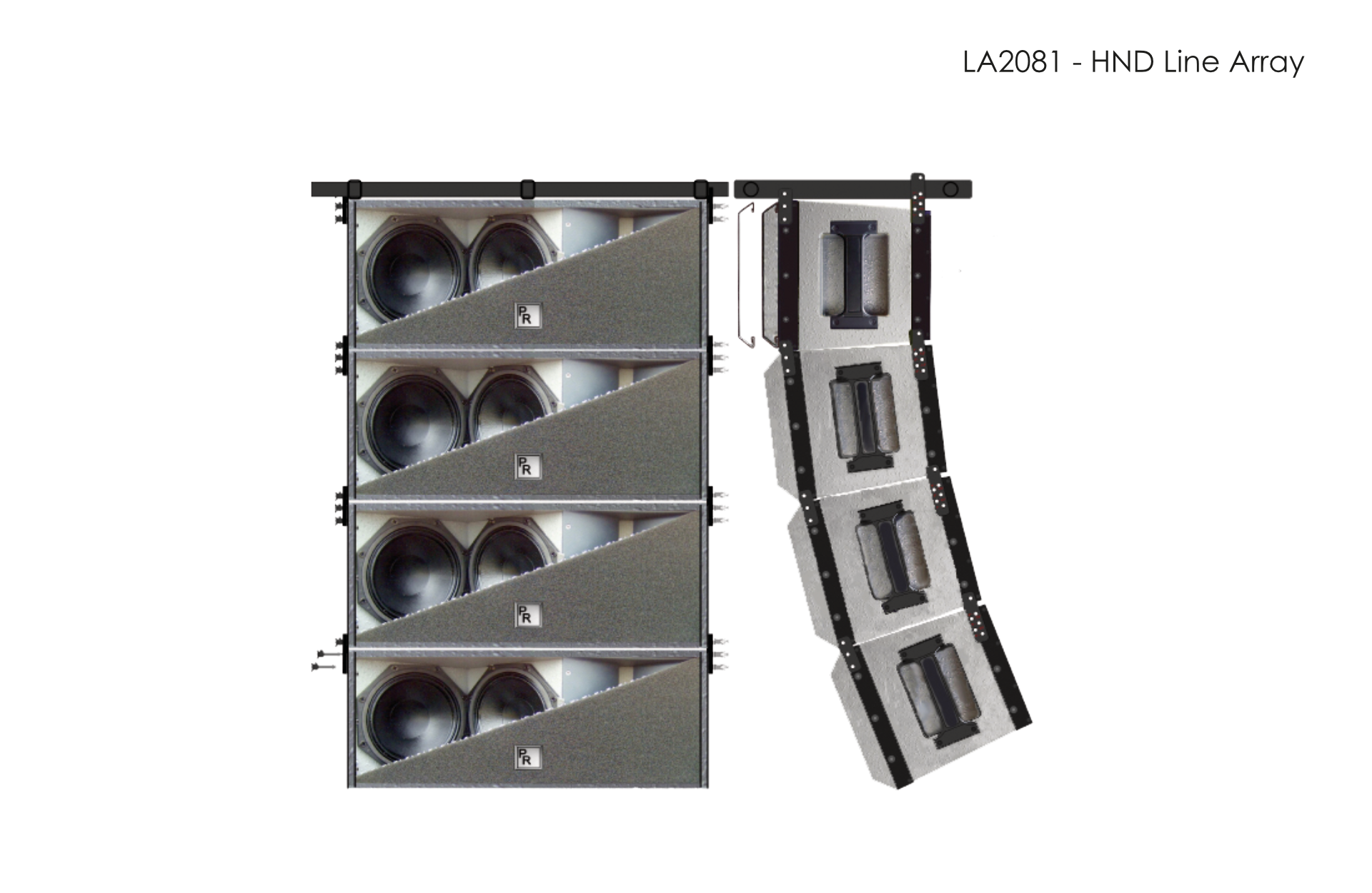

Due to this the PR engineers are developing sound systems, electronics and speaker cabinets not for special shades of sound – but to reproduce all audio sources in a perfect way. The only difference for the speakers should be the site-specific acoustic challenge anywhere in the world.
This results in speaker systems which are optimized in sound quality for musicians, contractings, cinemas, installations and touring applications. Further goals of PR Electronic speaker systems are the small size, the low weight as well as the availability of weatherproof systems and the possibility to offer all products in customized colors hence they can be integrated seamlessly into the installation environment.
Professional
System
Interactive Visions® / the crowd puller!
Reactive – Multilayer – Video – Projection System
Experience advertising and sales promotion in a playful way
An interactive projection system as ideal sales promotion – it is suitable for table, bar, counter, floor, wall, ceiling or shop window projections. Compact design and quick and easy assembly – also suitable for use in theaters and stages.

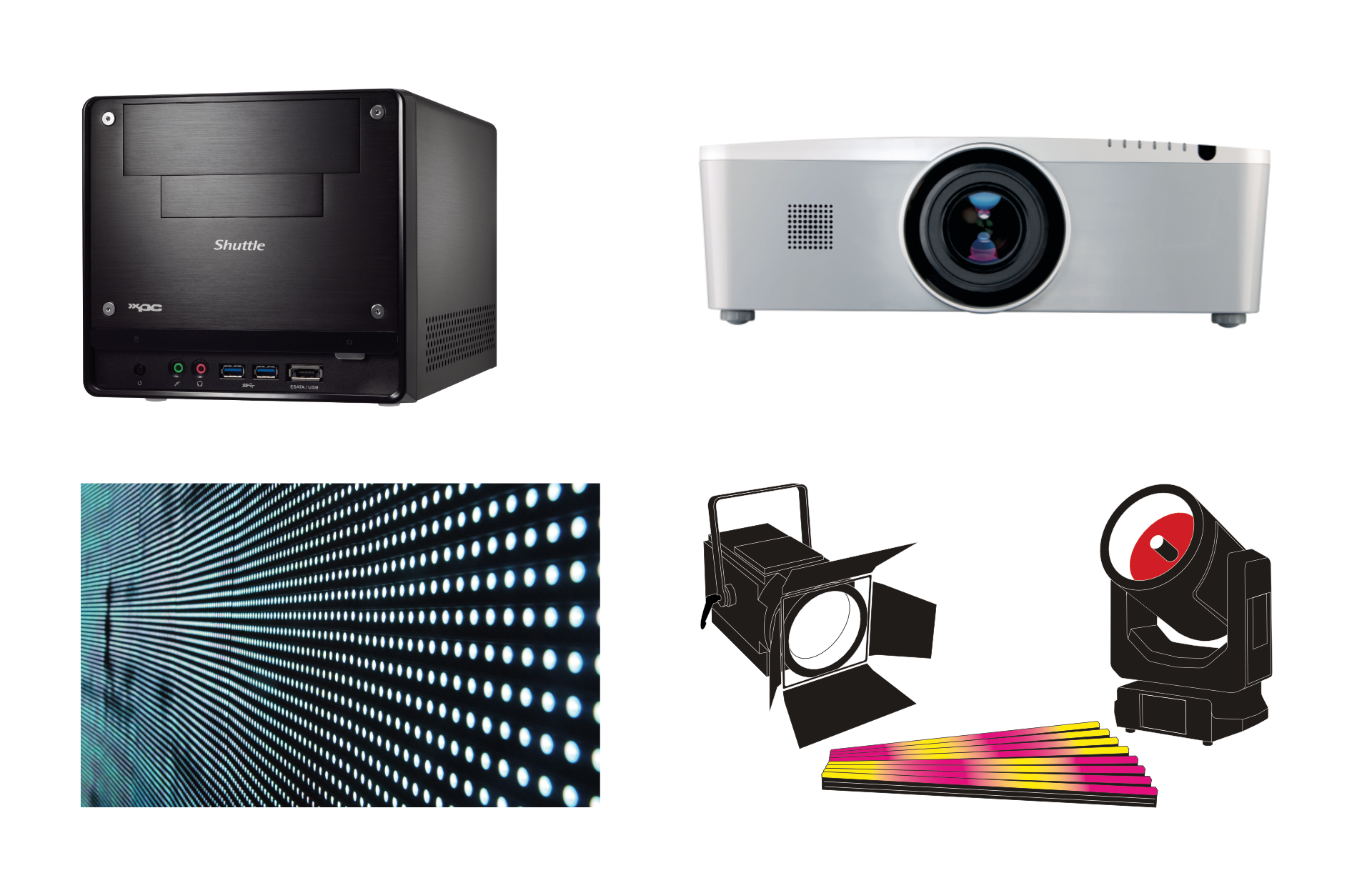

Any projector with a resolution up to 4k (or alternatively an LED wall) can be connected to the Interactive Visions System. 2 Full HD projectors and several systems can also be combined with each other.
Special programming enables the interface to control light and costume projections (spotlights, LED stipes, moving heads) via Artnet and DMX.
Function of the interactive visions

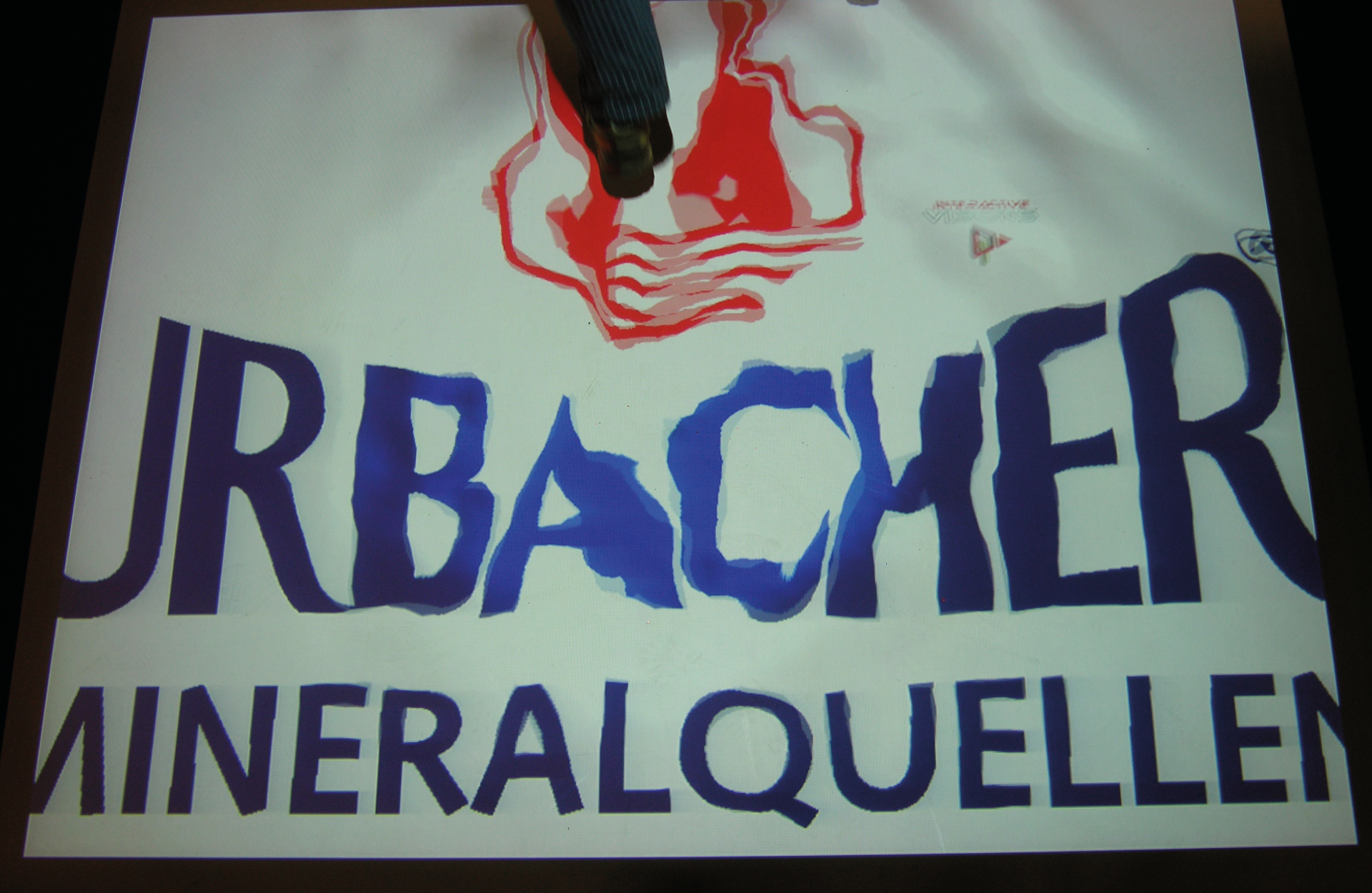

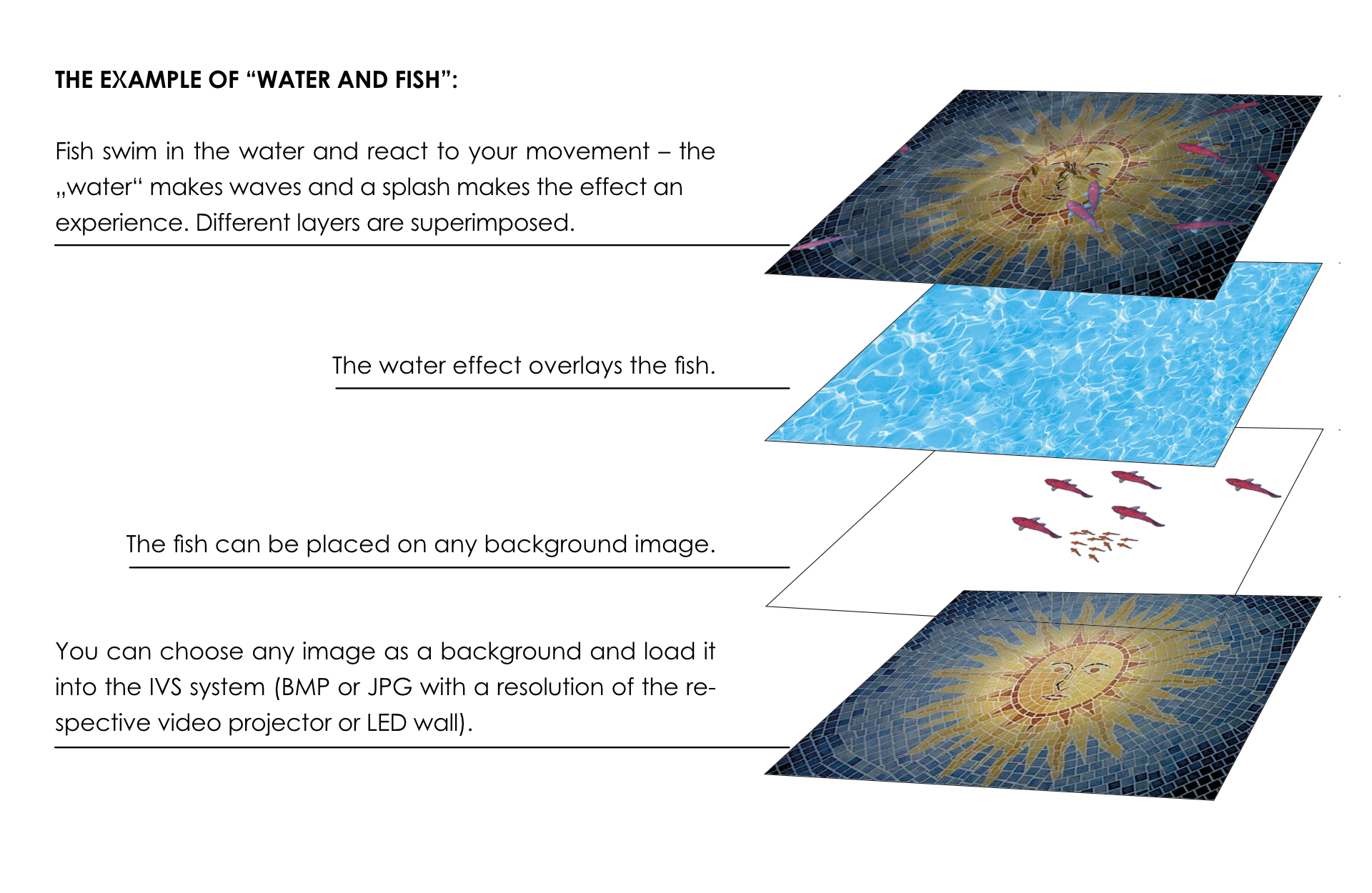

On the right side you see how the system works – it´s all about layering.
Interactive visions IP housing

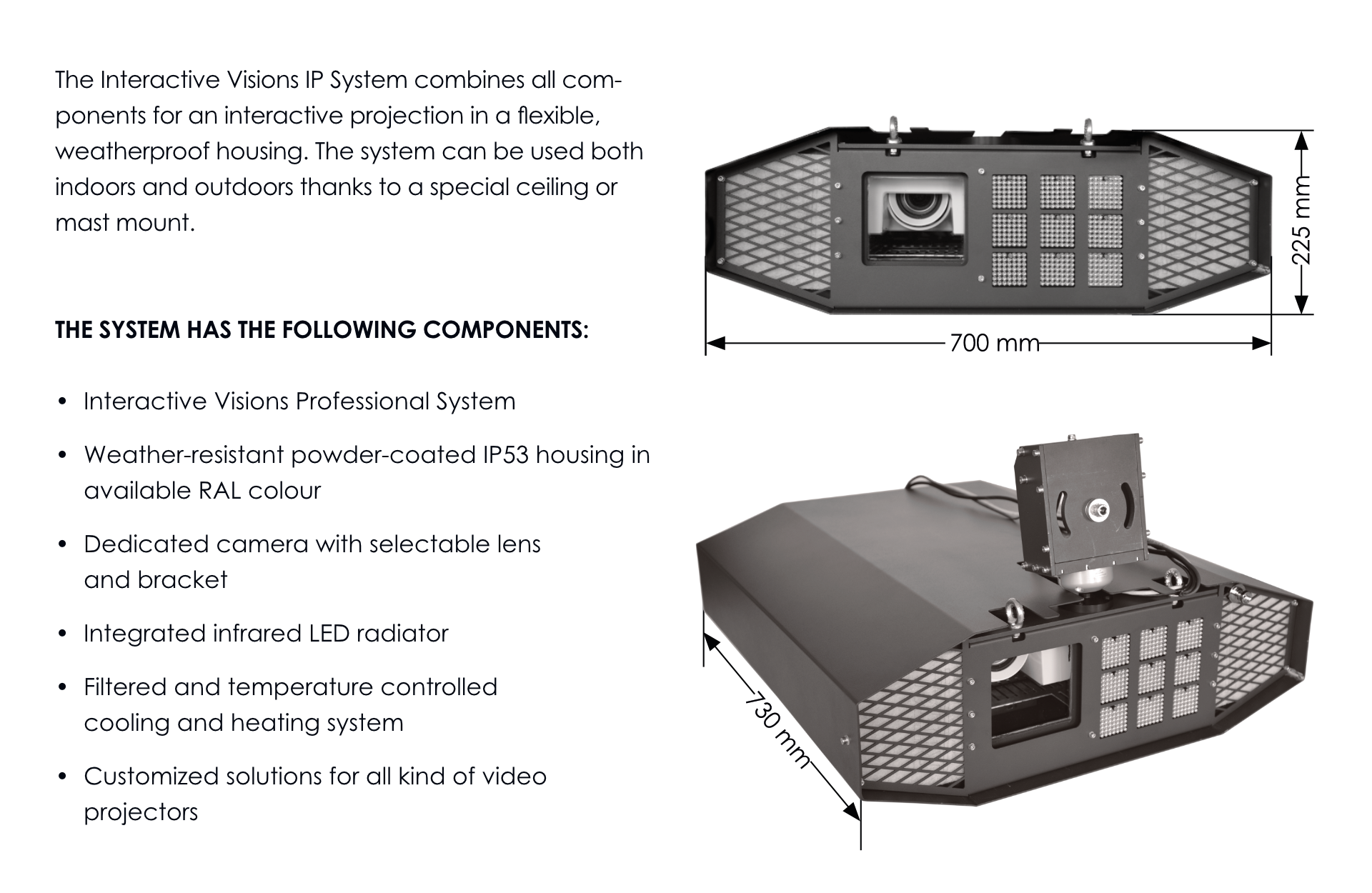

For outdoor use, we have developed a special housing.
IVS Effect examples

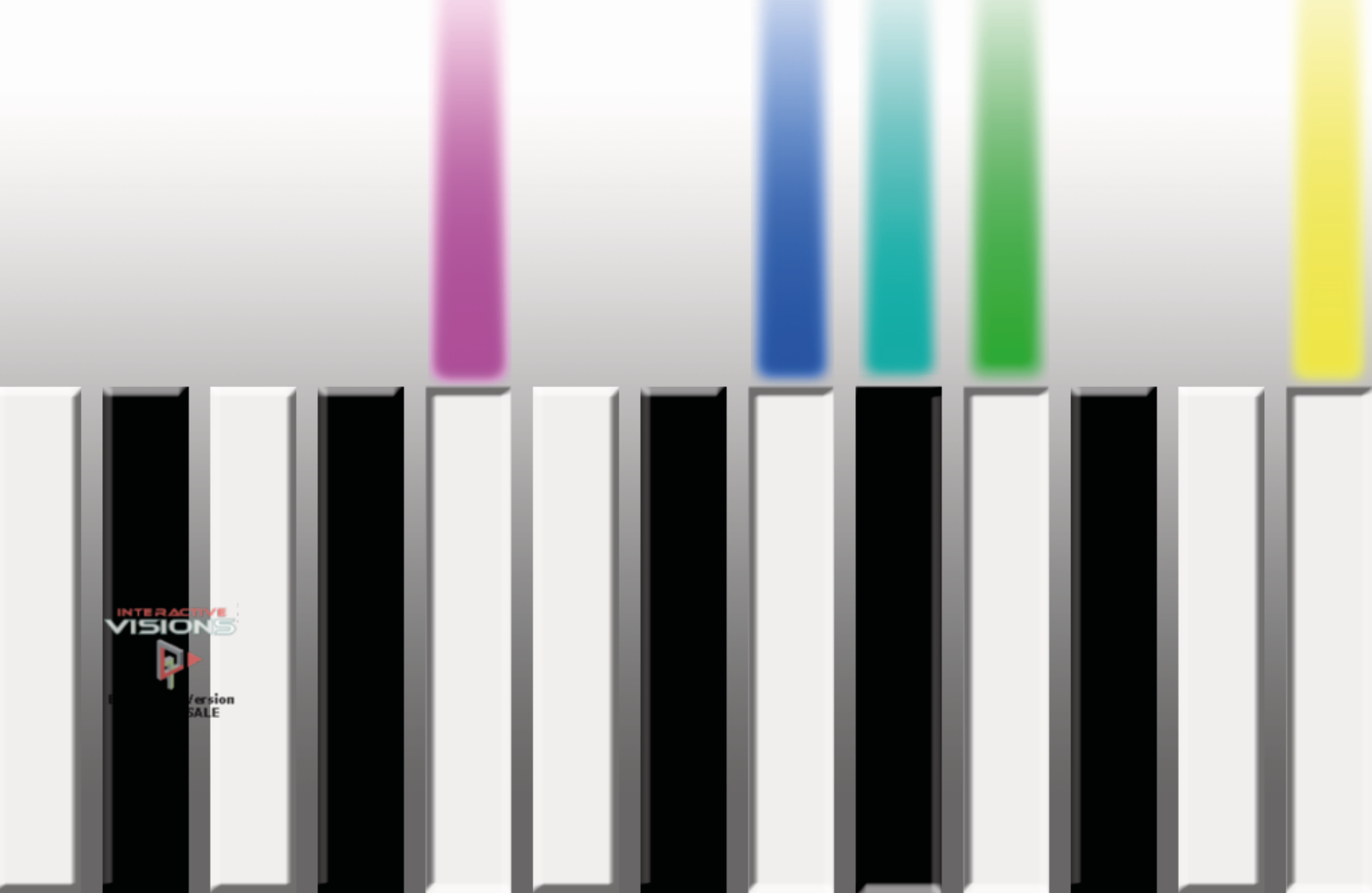

This is a small selection of 25 standard effects that you can adapt to your design – individual programming is possible on request.

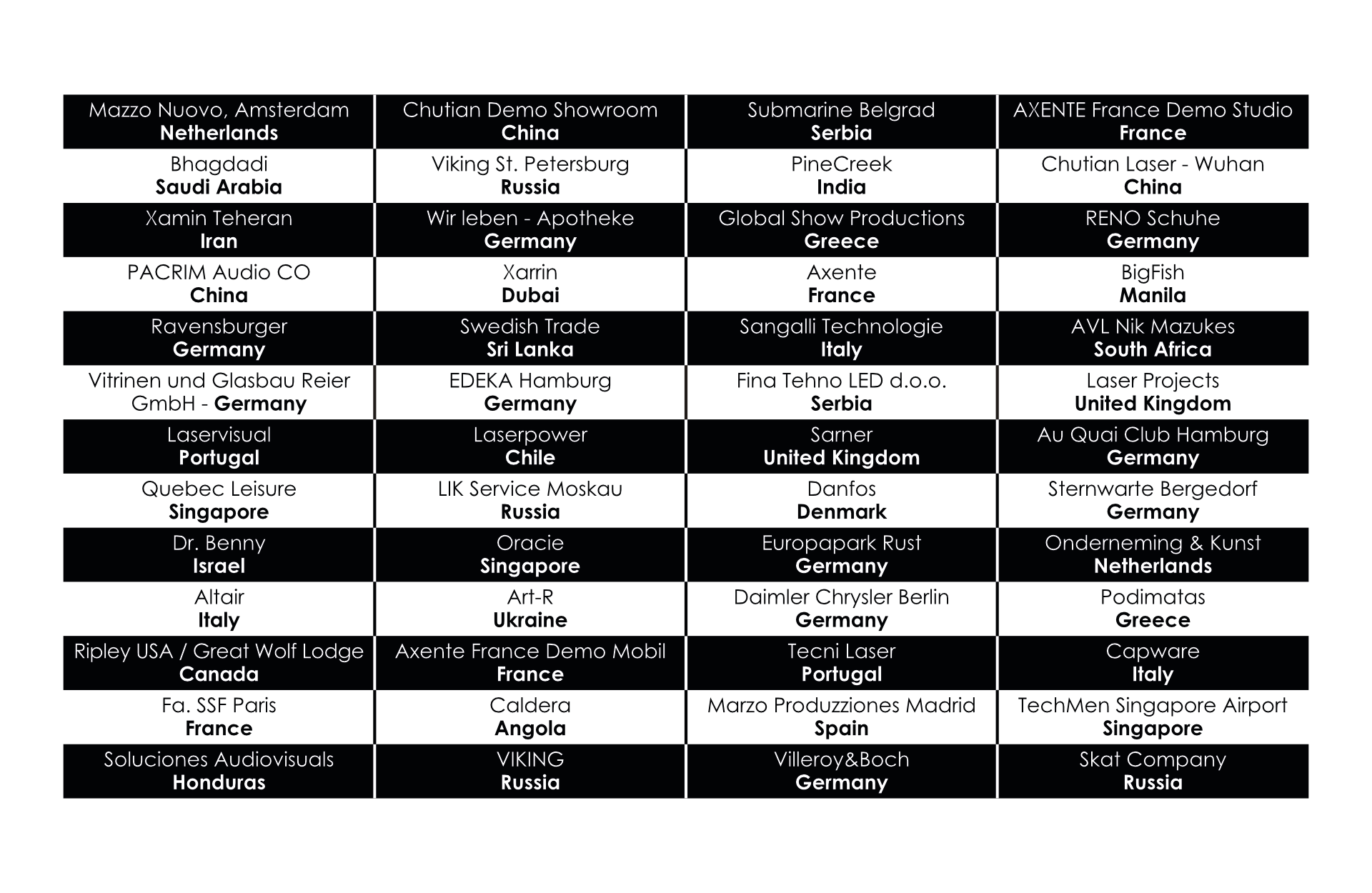

You will also find a table with references worldwide.
